LF Wheel Speed Sensor C150

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: LF Wheel Speed Sensor C150 Terminal
G01527620Courtesy of FORD MOTOR CO.

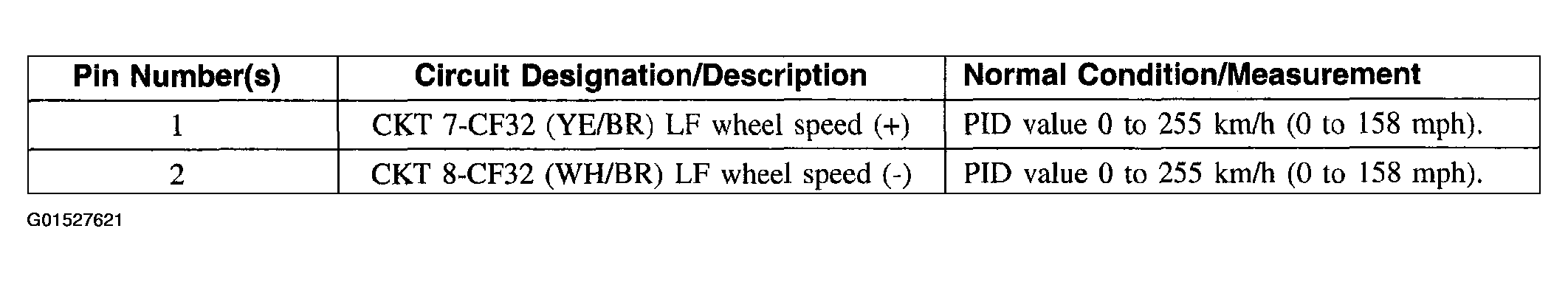

Fig 2: Connector Reference Chart
G01527621Courtesy of FORD MOTOR CO.
