Ignition Coil-On-Plug and Spark Plug: Notes

MATERIAL SPECIFICATION

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A (Motorcraft XG-3) or equivalent	ESE-M1C171-A

Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.

IGNITION COIL-ON-PLUG AND SPARK PLUG REMOVAL STEPS

Component	Steps
Ignition coil	1-5
Spark plug	1-6

To install, reverse the removal procedure.

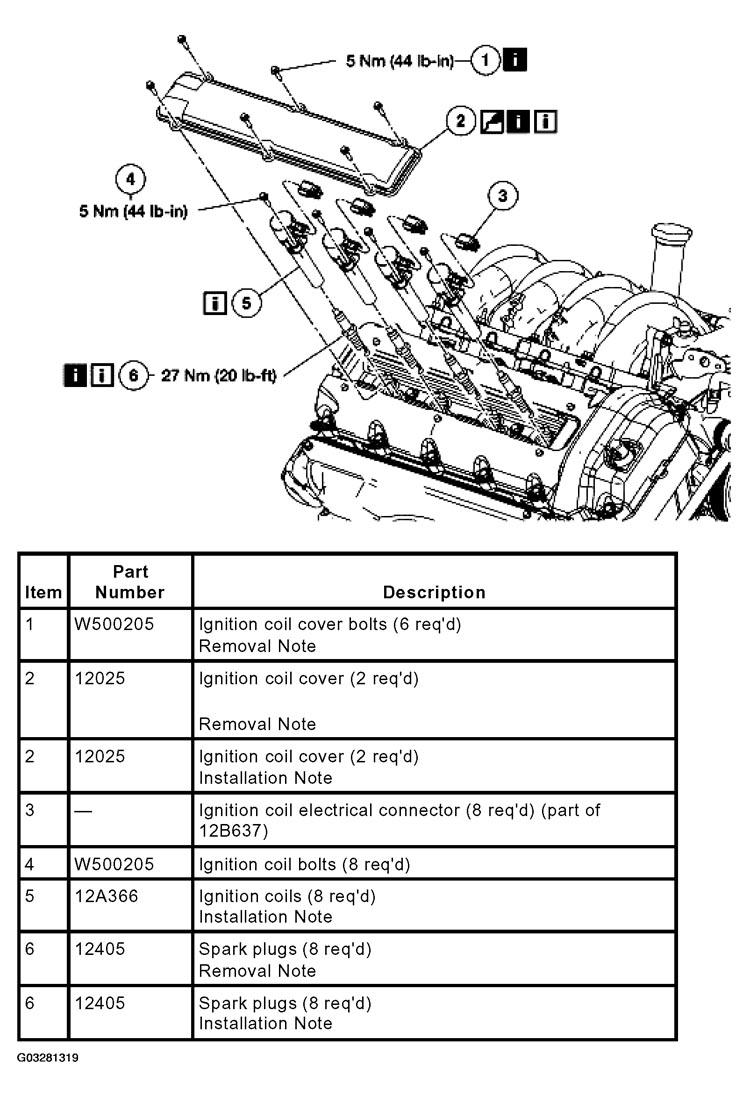

Fig 1: Installing Ignition Coil-On-Plug & Spark Plug
Courtesy of FORD MOTOR CO.
