Pinpoint Test F: The Speed Control Switch Is Inoperative

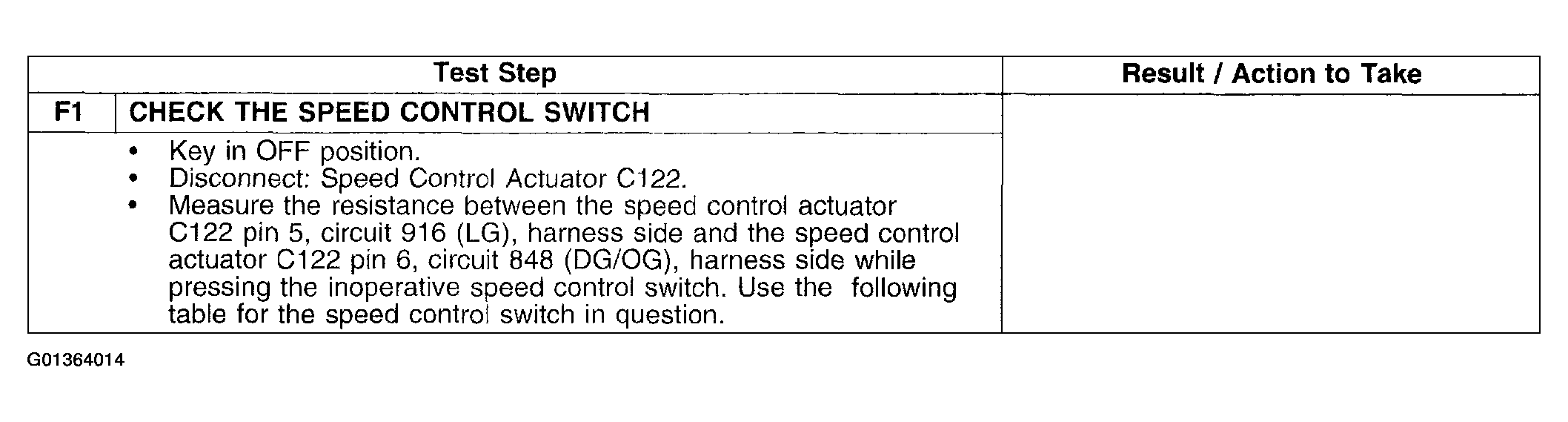

Fig 1: Pinpoint Test F: Speed Control Switch Is Inoperative (Step F1)
G01364014Courtesy of FORD MOTOR CO.

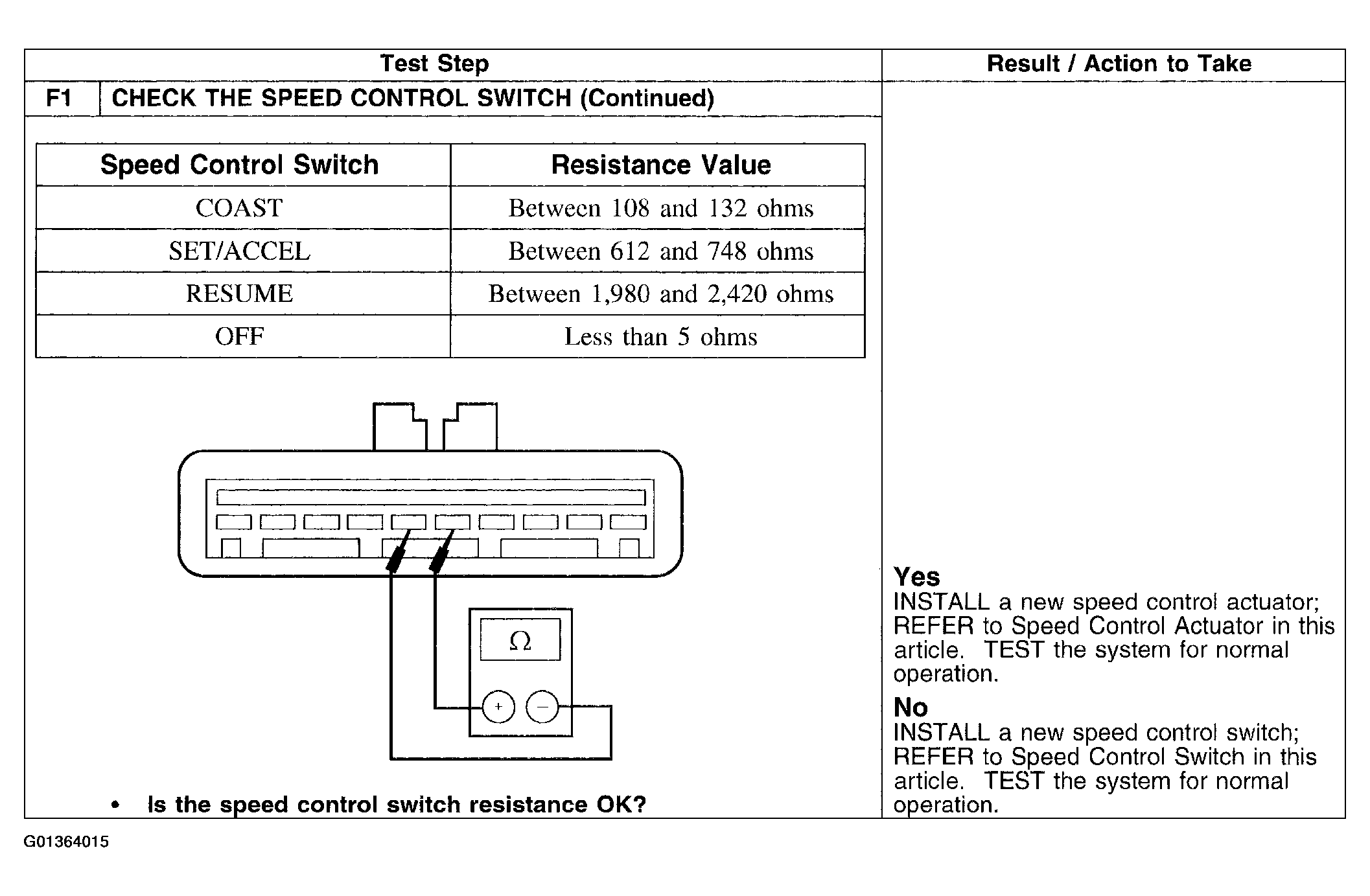

Fig 2: Pinpoint Test F: Speed Control Switch Is Inoperative (Step F1 Continued)
G01364015Courtesy of FORD MOTOR CO.
