Removal and Installation

  1. Remove the integrated control panel (18C858). For additional information, refer to CLIMATE CONTROL ASSEMBLY .
  2. Remove the knob (18519).

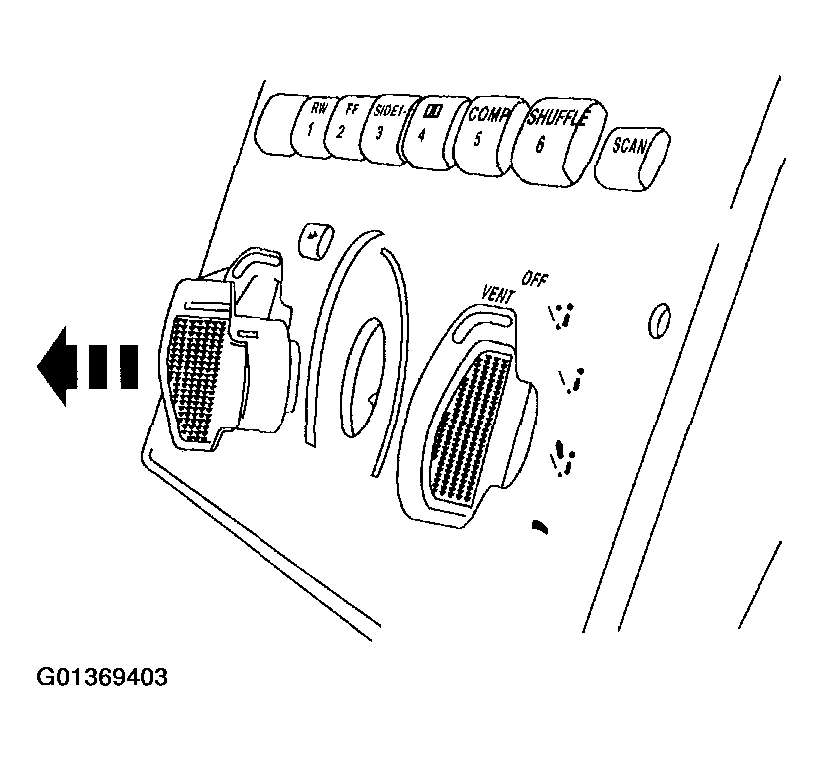

    Fig 1: Removing Knob
    G01369403Courtesy of FORD MOTOR CO.
  3. Remove the screw. Rotating the temperature control switch clockwise, remove the temperature control switch (19C733).

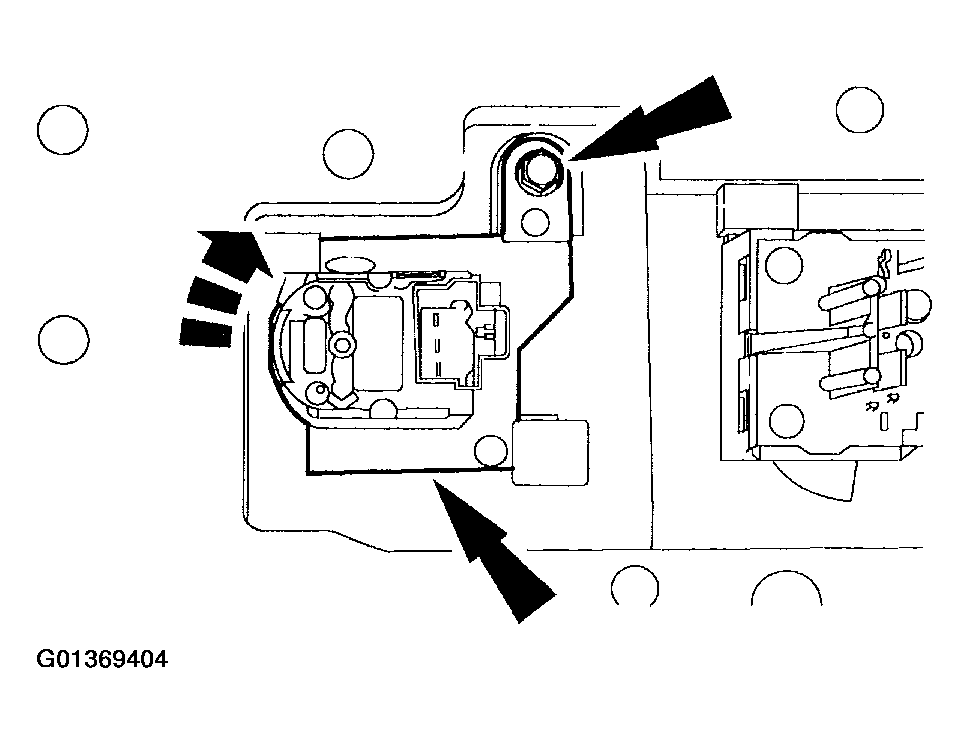

    Fig 2: Removing Temperature Control Switch
    G01369404Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
