Pinpoint Test C: DTC B1484 - Brake Pedal Input Open Circuit

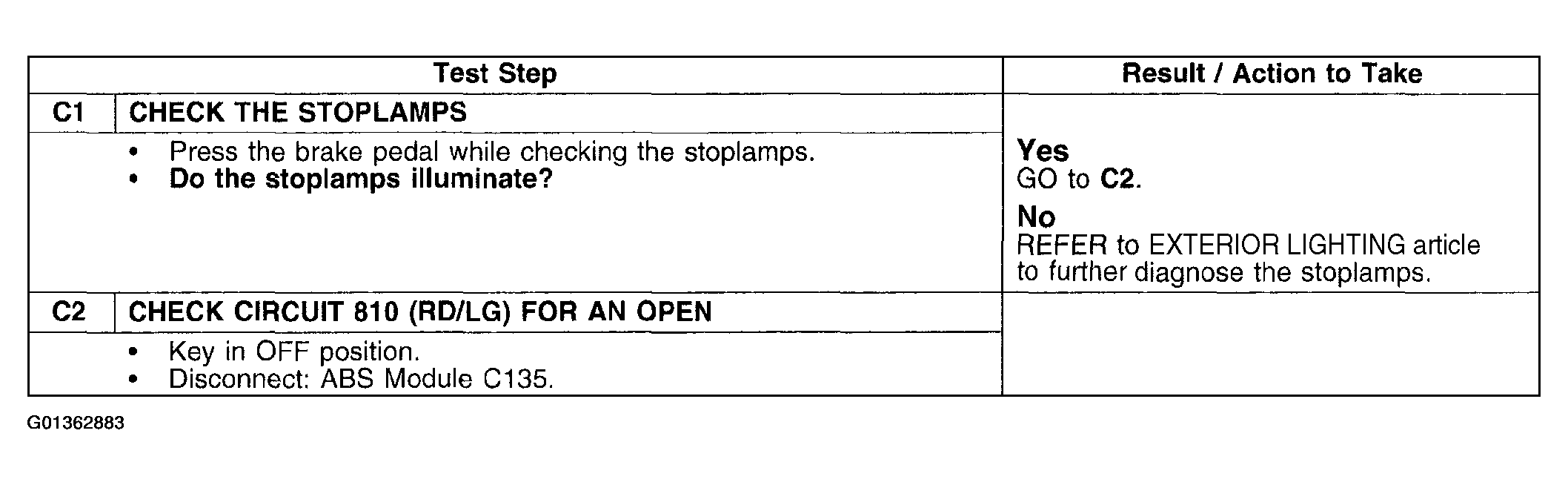

Fig 1: Pinpoint Test C: DTC B1484 - Brake Pedal Input Open Circuit (C1-C2)

Courtesy of FORD MOTOR CO.

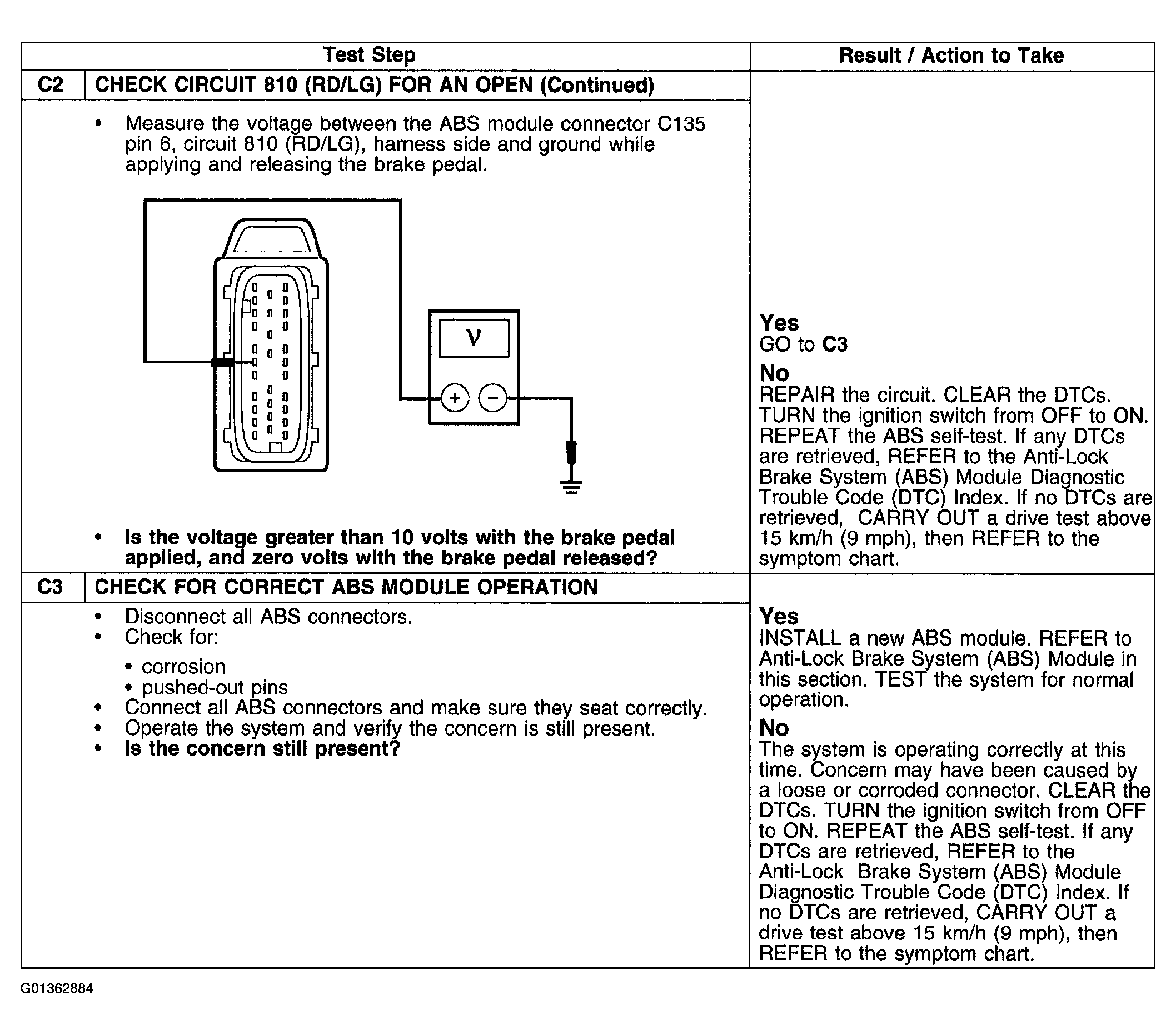

Fig 2: Pinpoint Test C: DTC B1484 - Brake Pedal Input Open Circuit (C2-C3)

Courtesy of FORD MOTOR CO.
