Pinpoint Test D: The Speed Control Does Not Disengage When The Clutch Is Applied

D1 CHECK THE CLUTCH PEDAL POSITION (CPP) SWITCH
- Key in OFF position.
- Disconnect: CPP Switch C2072.
- Measure the resistance between CPP switch pin 2 (component side) and CPP switch pin 1 (component side), while applying and releasing clutch pedal.

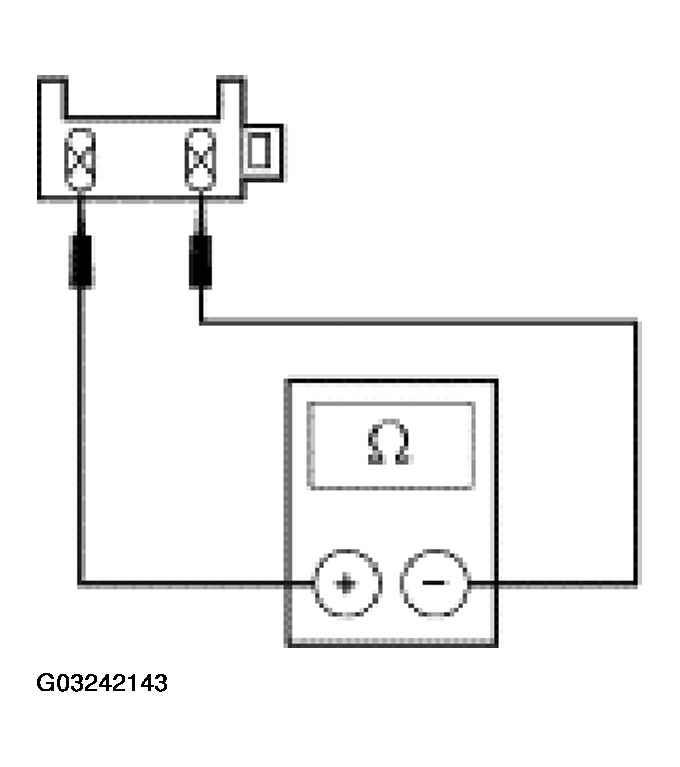

  Fig 1: Checking Clutch Pedal Position (CPP) Switch
  Courtesy of FORD MOTOR CO.
- Is the resistance greater than 10,000 ohms with the clutch pedal applied and less than 5 ohms with the clutch pedal released?
1. Yes: INSTALL a new speed control servo. REFER to ACTUATOR - SPEED CONTROL SERVO . TEST the system for normal operation.
2. No: INSTALL a new CPP switch. TEST the system for normal operation.
