Spark Plug: Installation

  1. Adjust the spark plug gap as necessary.

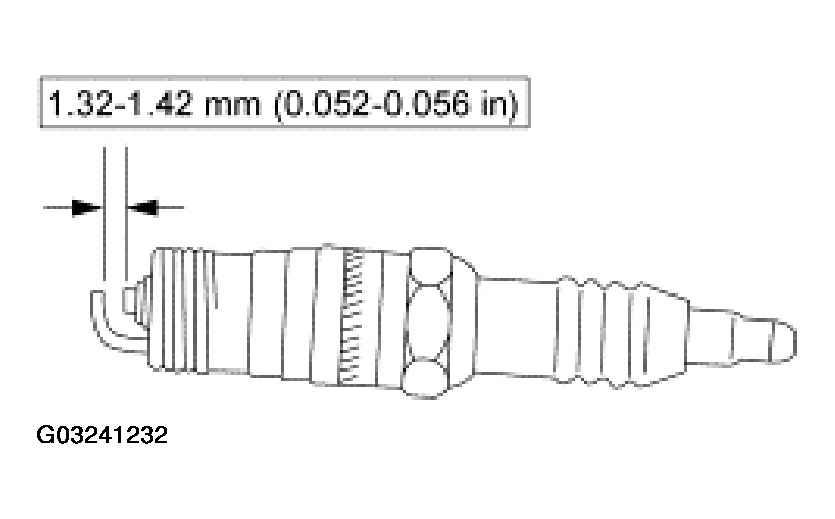

    Fig 1: Adjusting Spark Plug Gap
    G03241232Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.

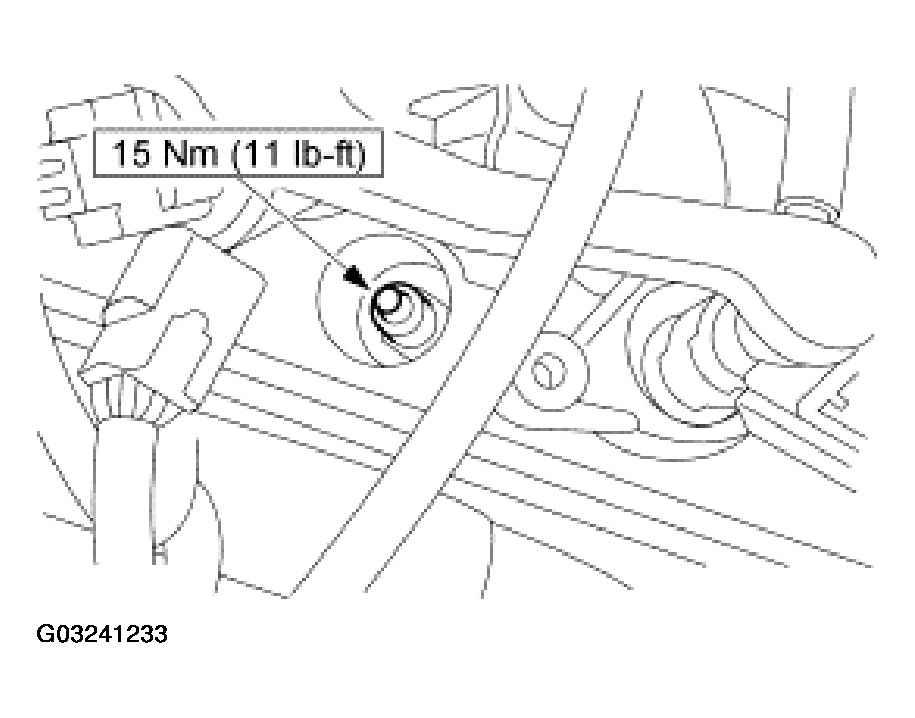

    Fig 2: Sparking Plug Tightening Torque
    G03241233Courtesy of FORD MOTOR CO.
