Ignition Switch C250

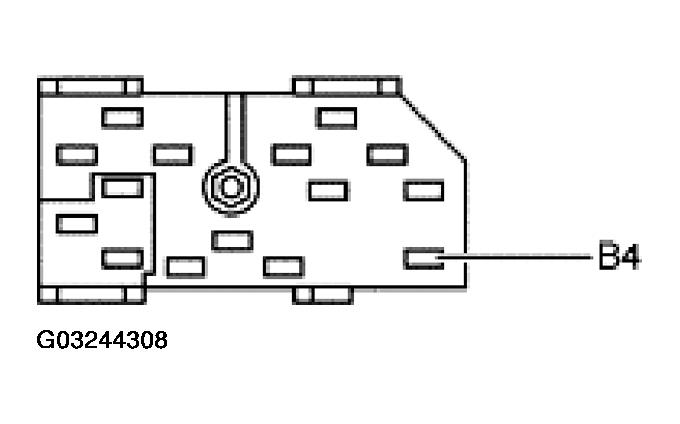

Fig 1: Identifying Ignition Switch C250 Terminals
G03244308Courtesy of FORD MOTOR CO.
IGNITION SWITCH C250 - CIRCUIT DESIGNATION/DESCRIPTION

Pin Number(s) Circuit Designation/Description  Normal Condition/Measurement
B4 CKT 1050 (LG/VT) voltage feed to ignition switch Greater than 10 volts at all times.
