Item 4: Liftgate Bolt Installation Note

    CAUTION: To minimize the possibility of cross threading, hand start all fasteners during installation.

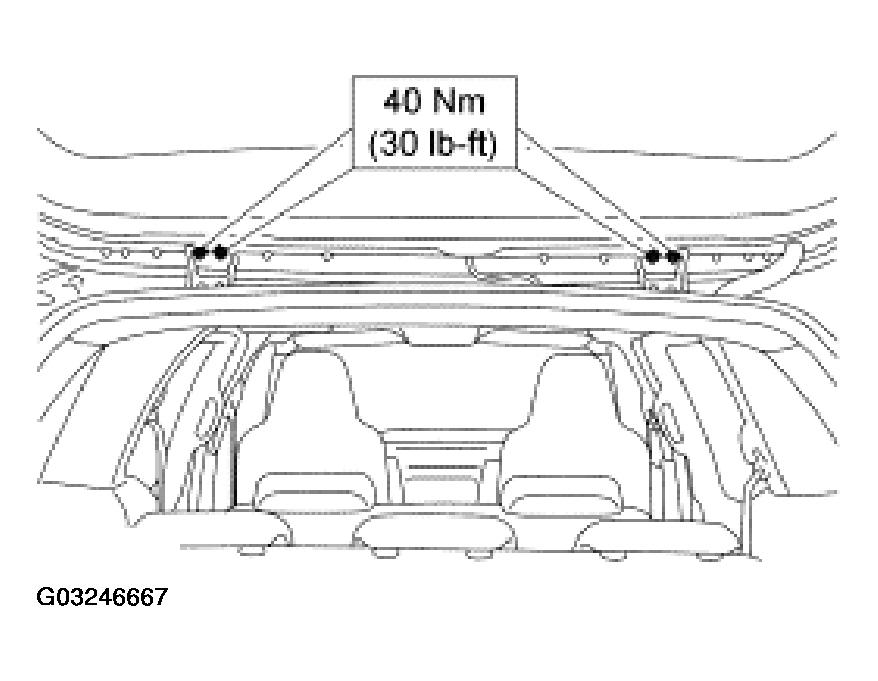

    Fig 1: Installing Liftgate Hinge Bolts
    G03246667Courtesy of FORD MOTOR CO.
  1. With the aid of an assistant install the bolts and align hinges to previously made alignment marks and tighten.
