Underbody Misalignment Check

  1. The dimensions of the underbody must be restored to provide the correct front and rear wheel alignment geometry.
  2. Inspect all underbody structural members for cracks, twists or bends. Check all welded connections for cracks. Inspect the support brackets for looseness. Carry out any necessary repairs or install new components as necessary.
  3. All the dimensions are measured between the centers of the existing holes in the underbody unless otherwise specified.
UNDERBODY DIMENSIONS

Dimension Millimeters Inches
1 1100 43.30
2   28.89
3 1508 59.36
4 949 37.36
5 1369 53.89
6 1400 55.11
7 1166 45.90
8 1258 45.92
9 1346 52.99
10 1870 73.62
11 1076 42.36
12 2817 110 90
13 4319 170.03
14 1150 45.27
15 1826 71.88
16 1344 52.91

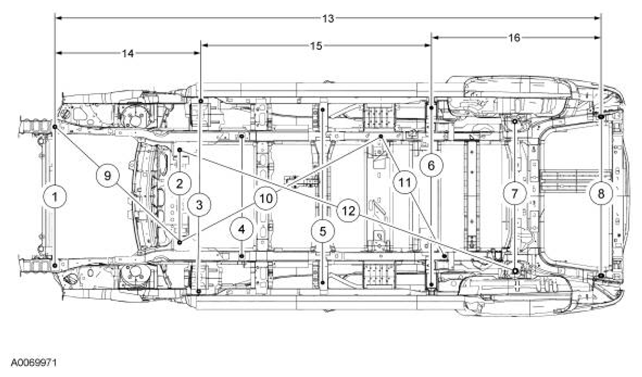

Fig 1: Checking Underbody Misalignment Dimensions
G12744295Courtesy of FORD MOTOR CO.
