Overview Of Construction And Function

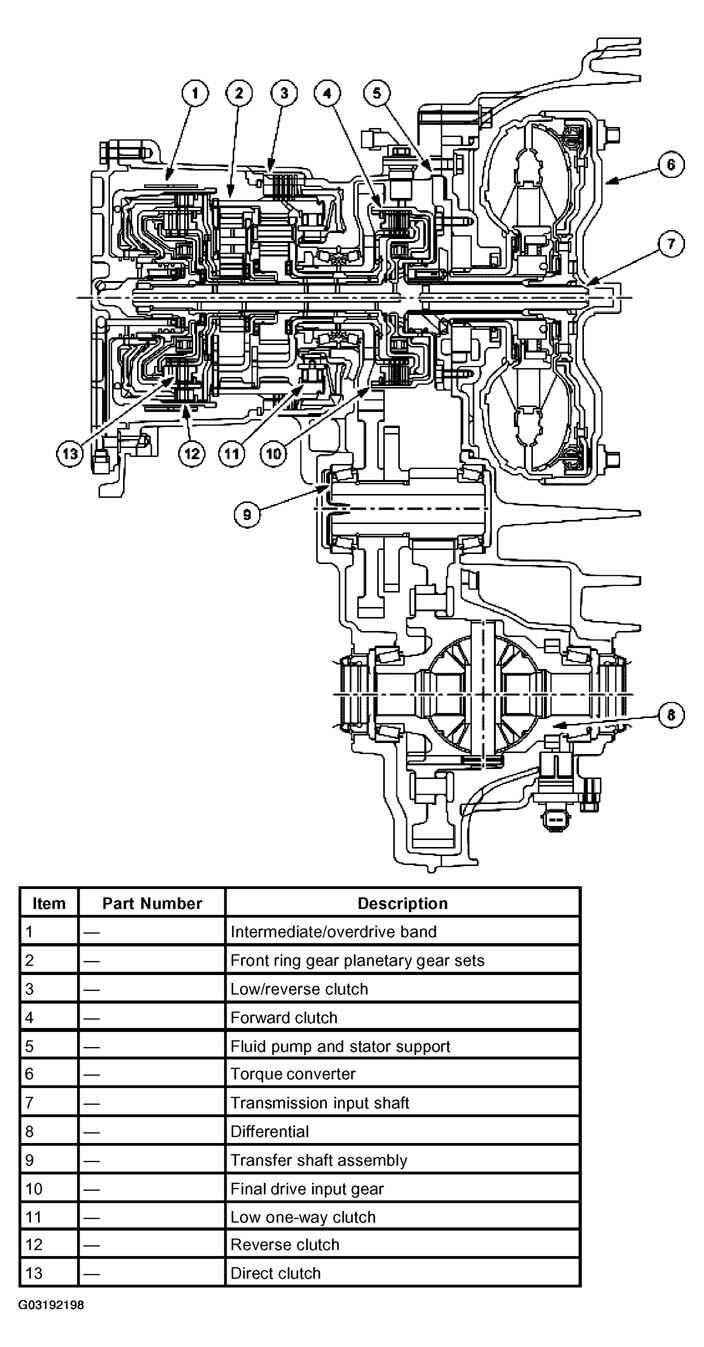

Fig 1: Identifying Overview Of Construction And Function Components

G03192198

Courtesy of FORD MOTOR CO.
