Identifying Connector (C9015)

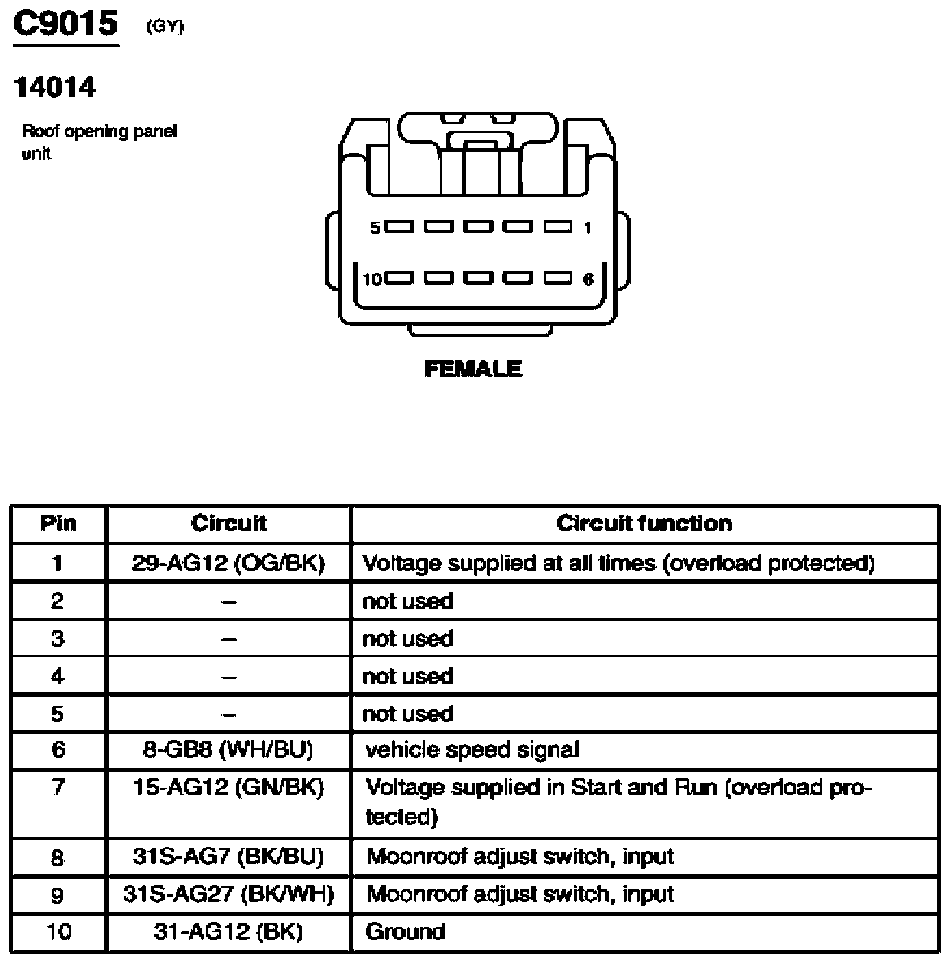

Fig 1: Roof Opening Panel Connector End View (C9015)
G03778465Courtesy of FORD MOTOR CO.
