Identifying Connector (C2220)
Identifying Connector (C2220)

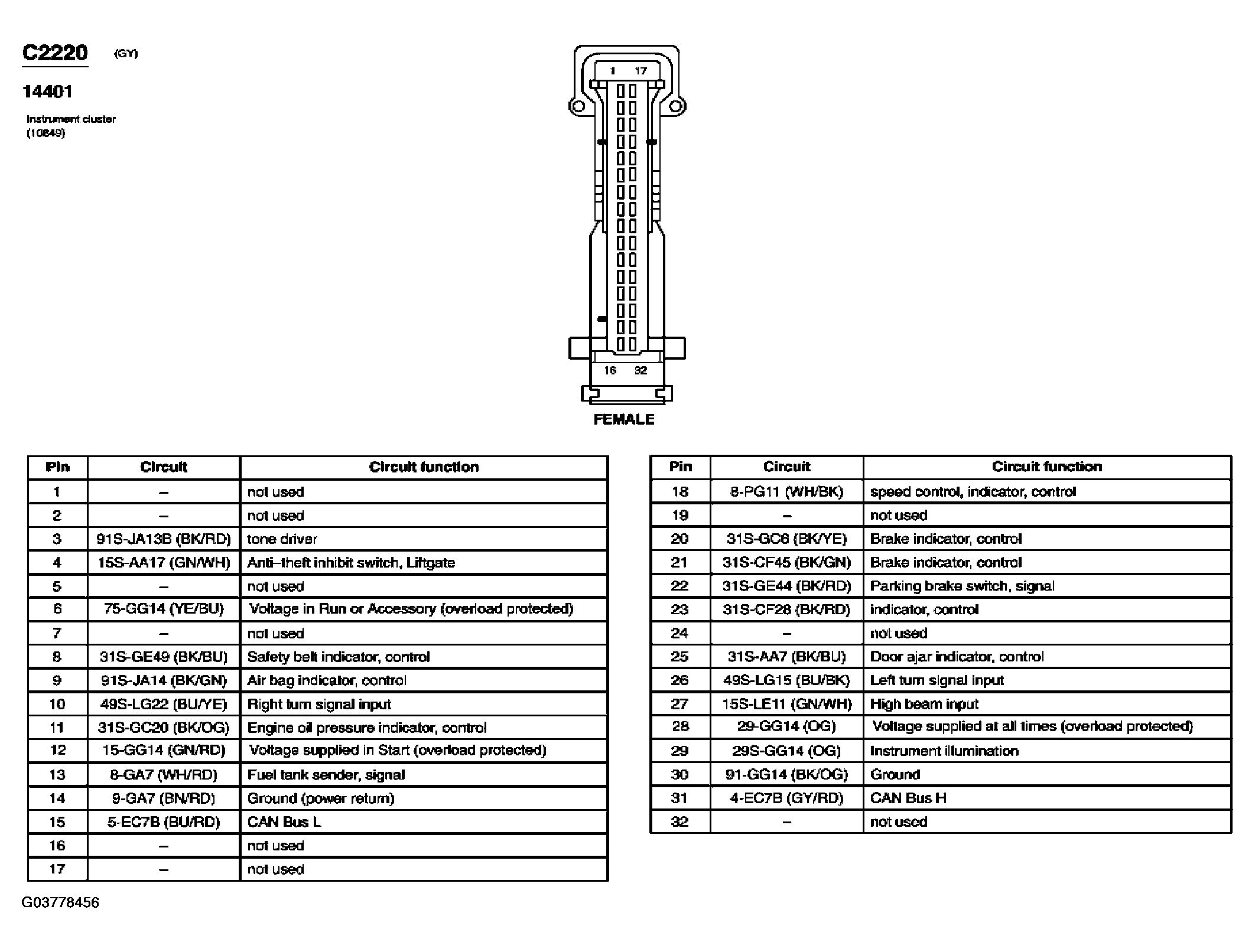

Fig 1: Instrument Cluster Connector End View (C2220)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
