Identifying Connector (C214)

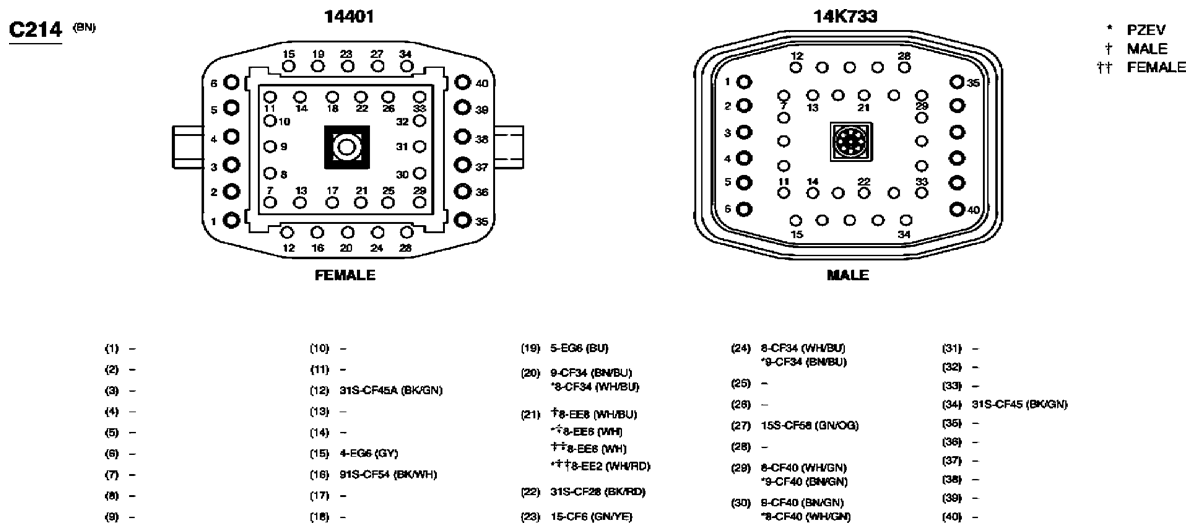

Fig 1: Inline Connector End View (C214)
G03778389Courtesy of FORD MOTOR CO.
