Identifying Connector (C210)

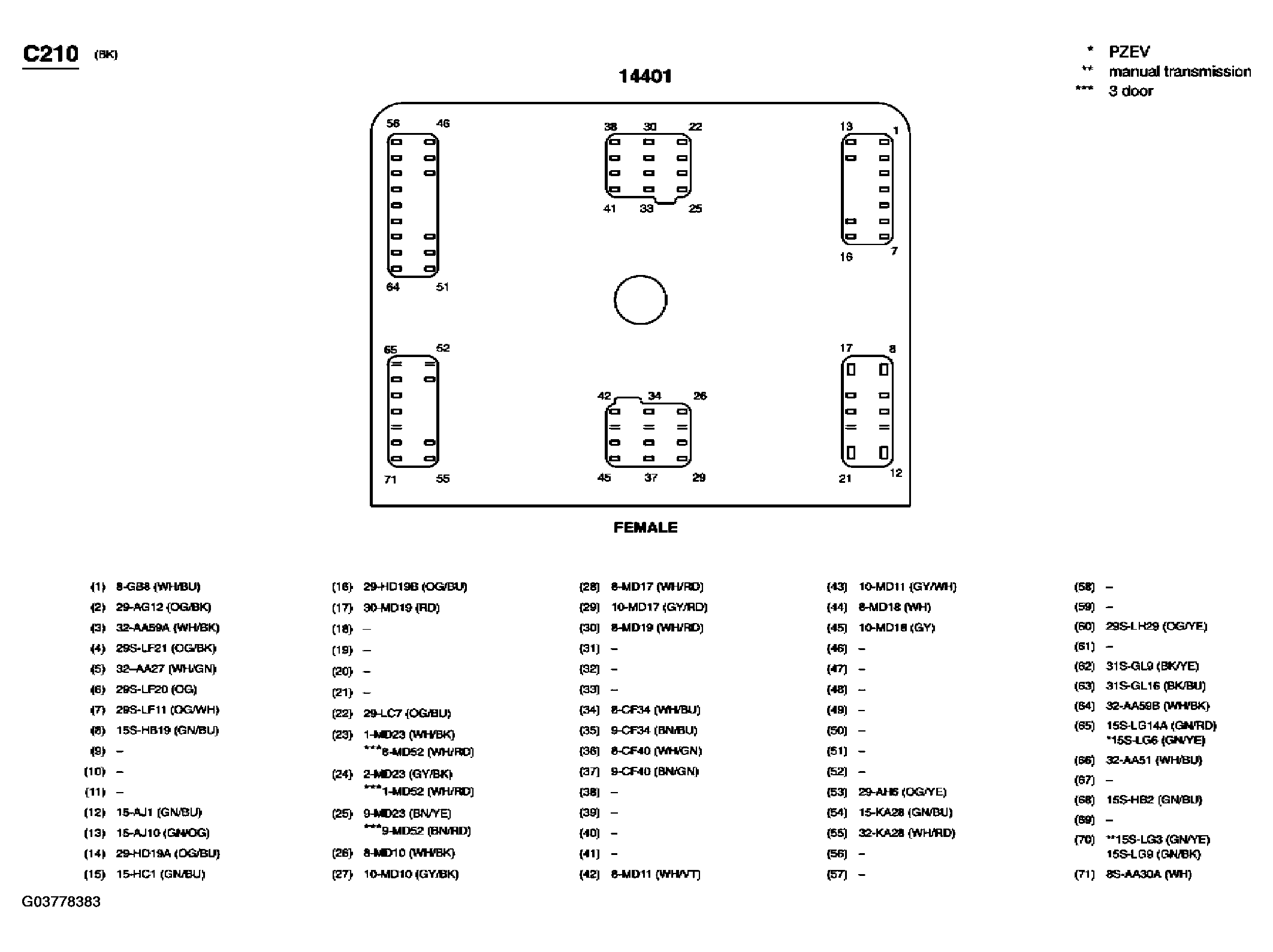

Fig 1: Inline Connector End View (C210)

G03778383

Courtesy of FORD MOTOR CO.

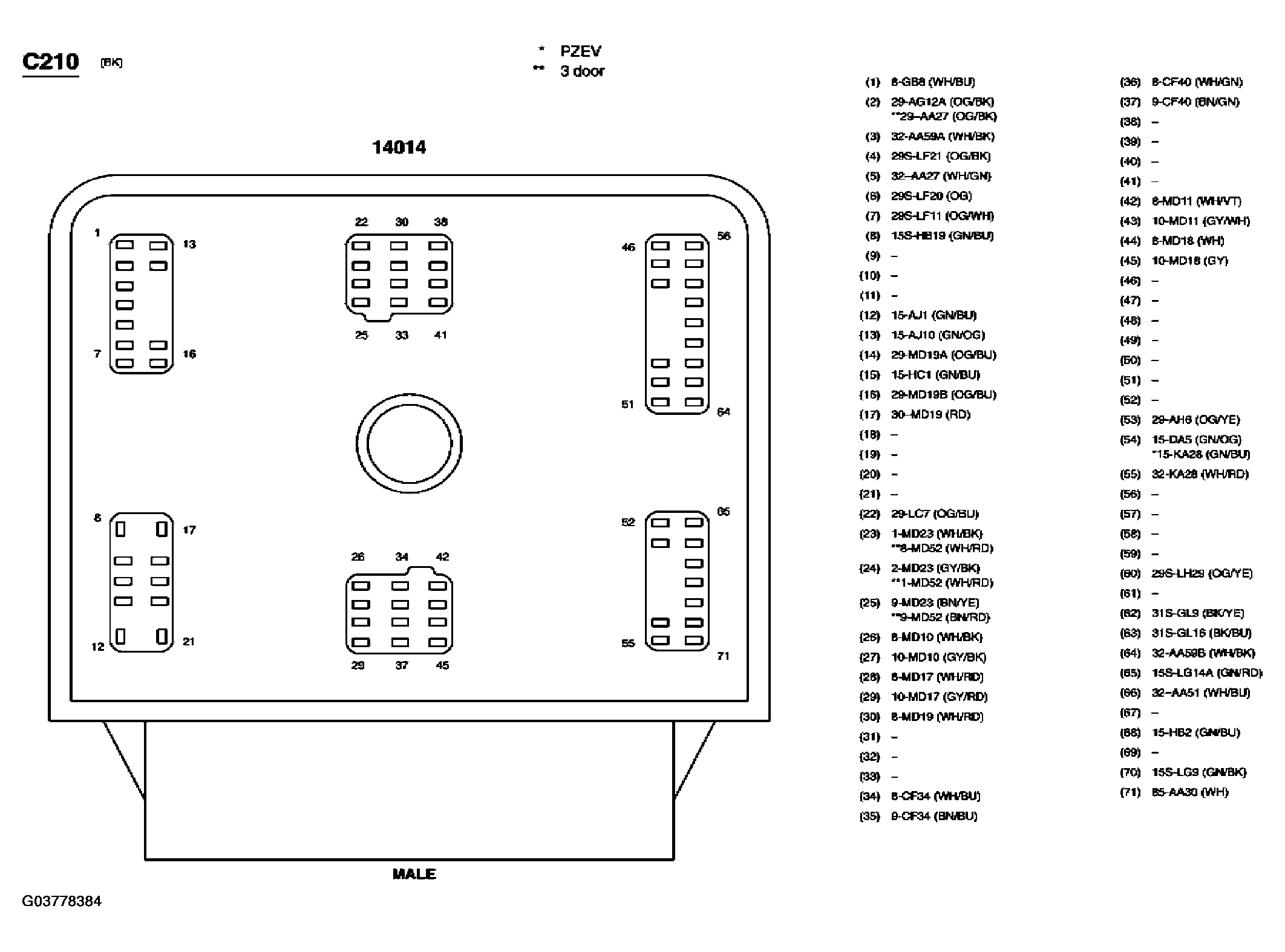

Fig 2: Inline Connector End View (C210)

G03778384

Courtesy of FORD MOTOR CO.
