Identifying Connector (C2041a)
Identifying Connector (C2041a)

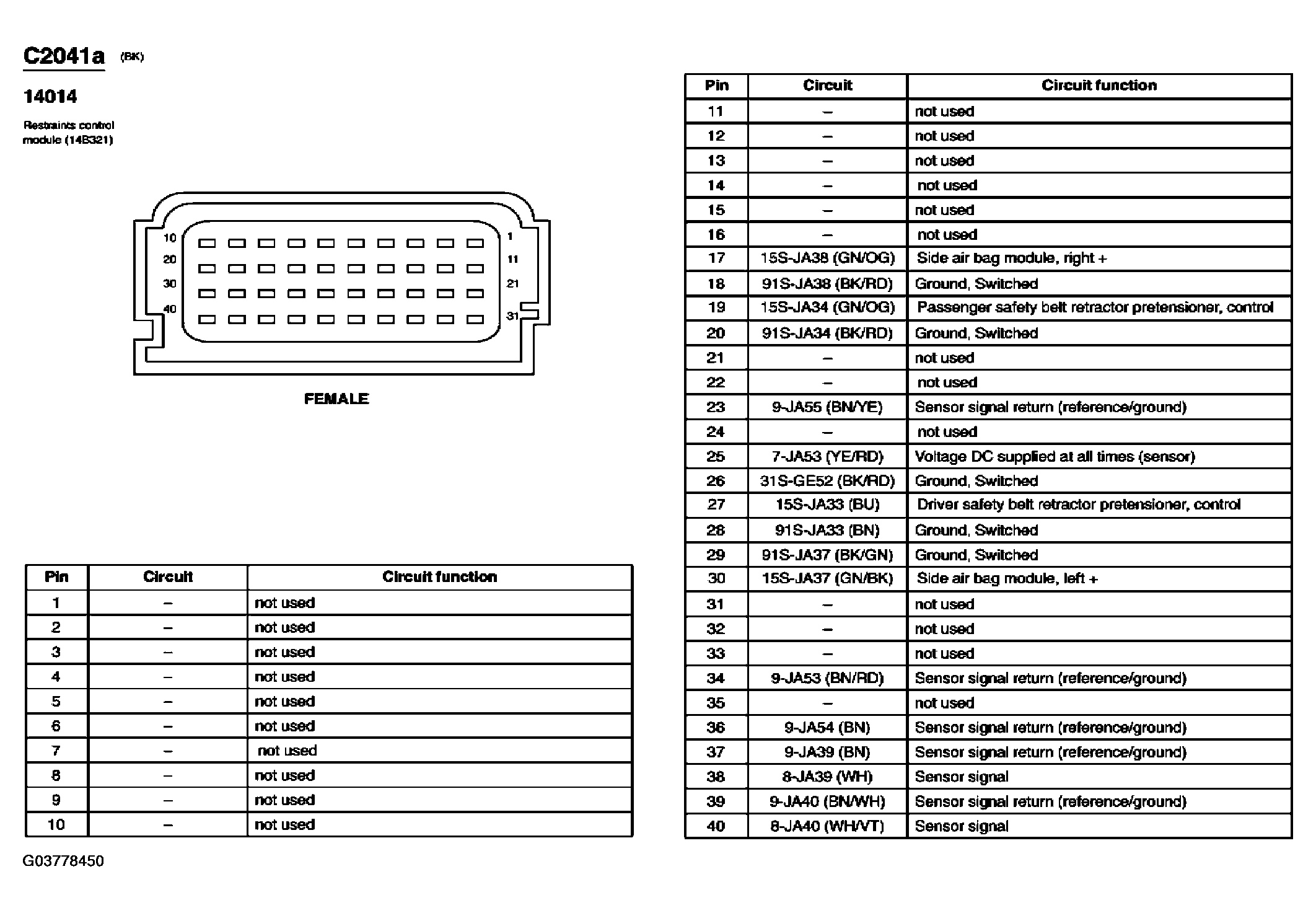

Fig 1: Restraints Control Module Connector End View (C2041a)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
