Identifying Connector (C135)

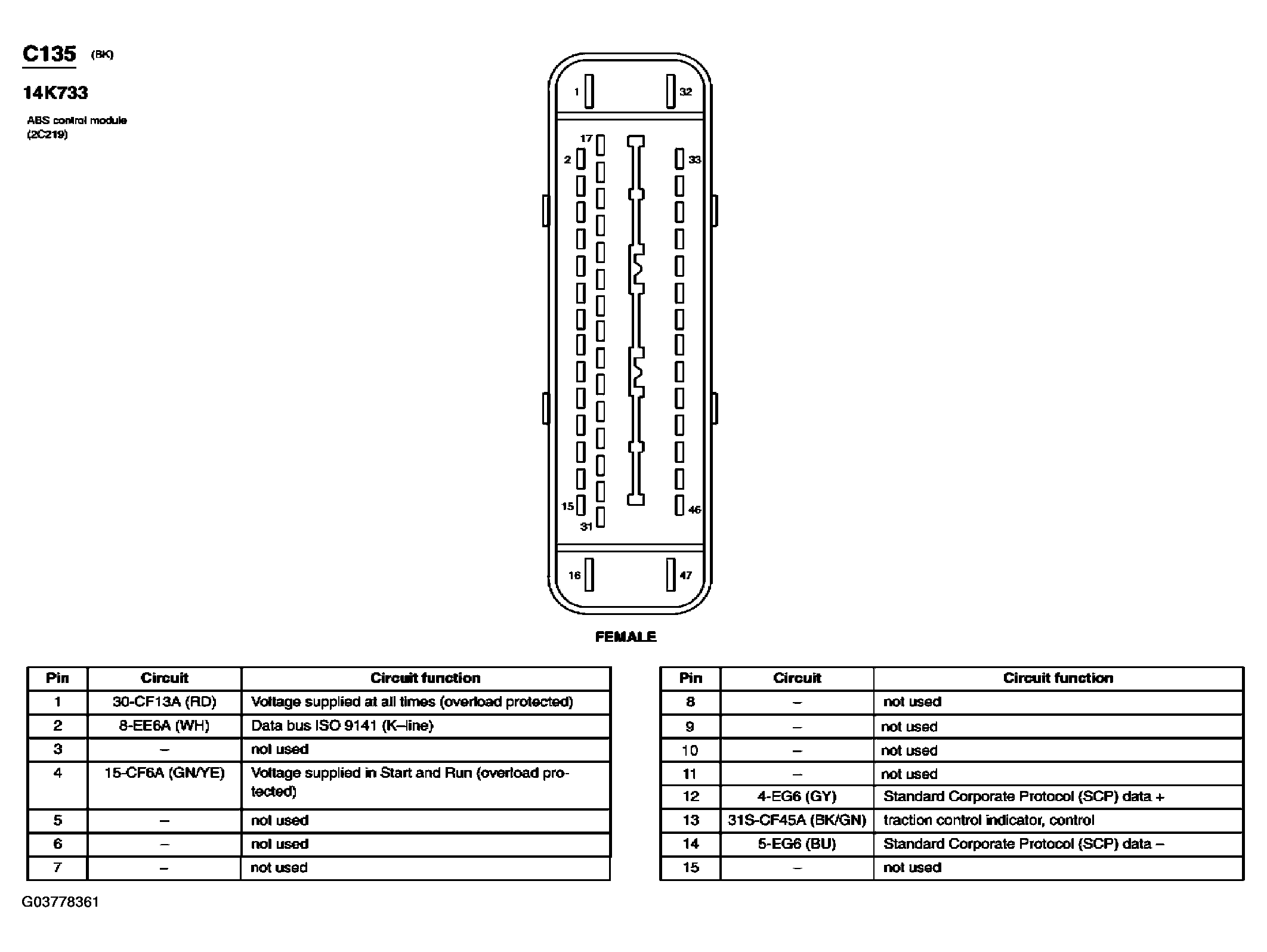

Fig 1: ABS Control Module Connector End View (C135) (1 Of 2)
G03778361Courtesy of FORD MOTOR CO.

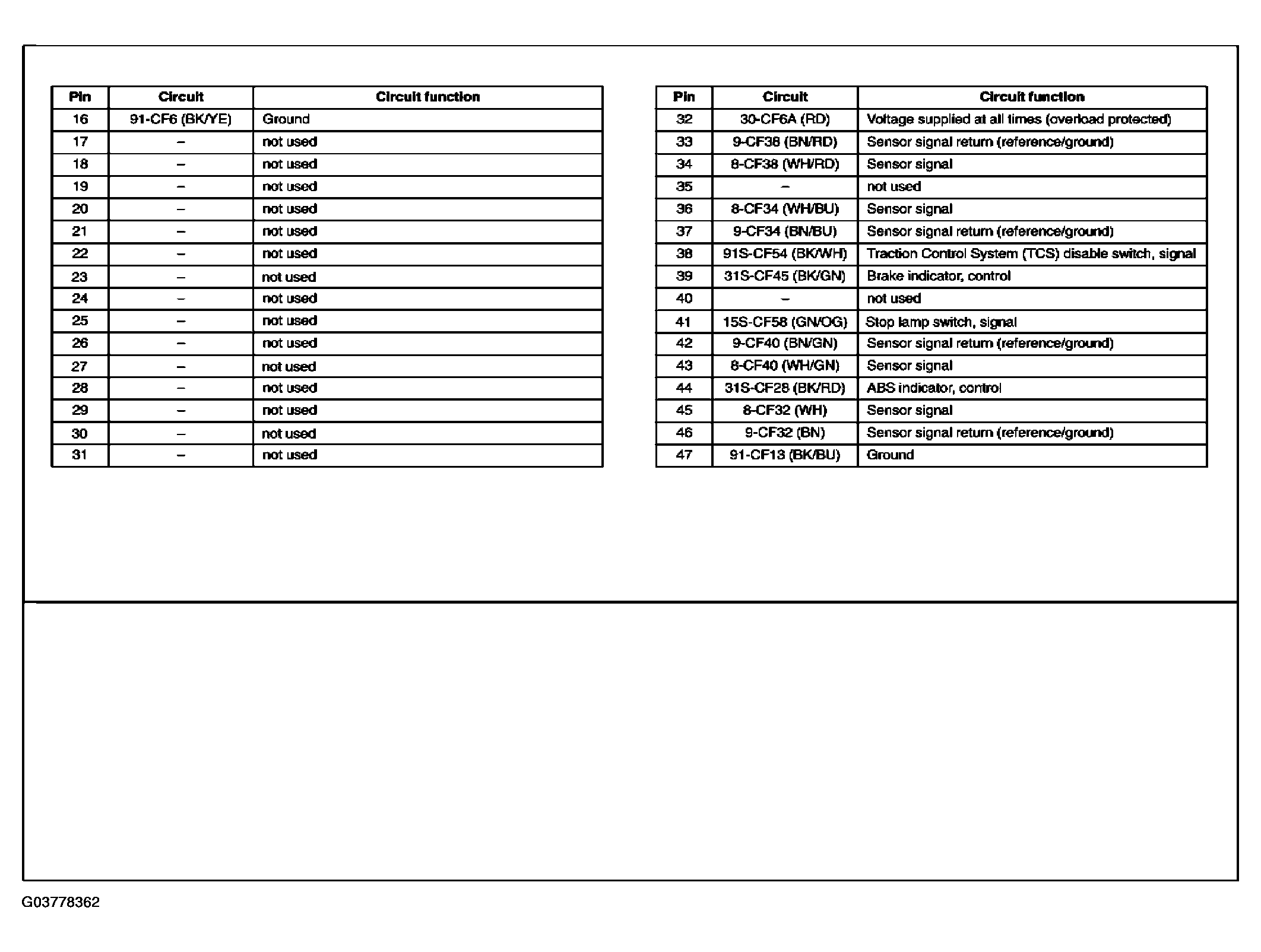

Fig 2: ABS Control Module Connector End View (C135) (2 Of 2)
G03778362Courtesy of FORD MOTOR CO.
