Identifying Connector (C1023)
Identifying Connector (C1023)

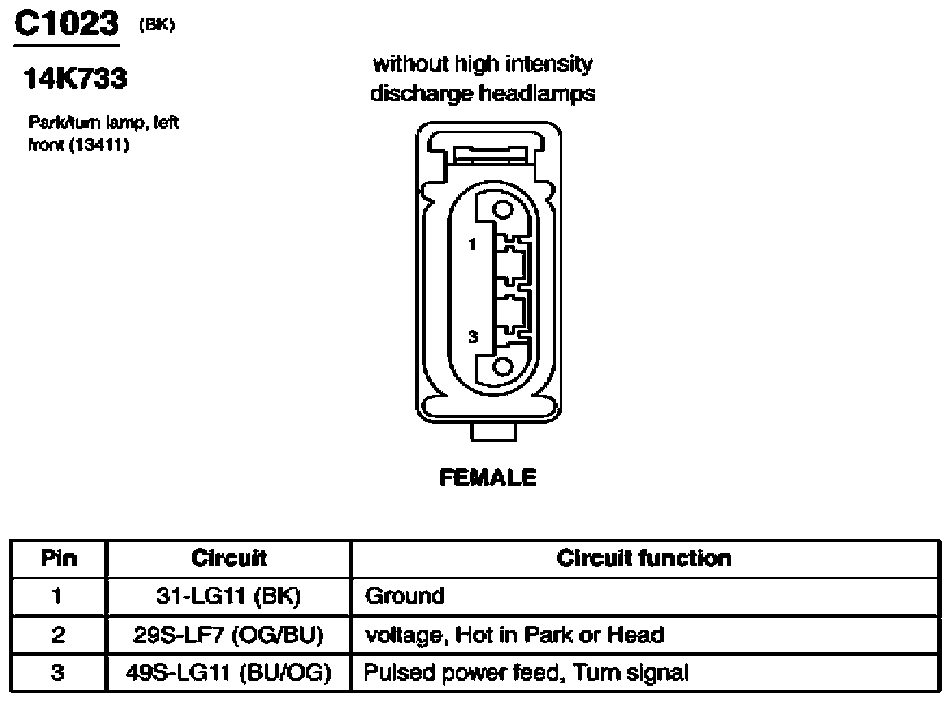

Fig 1: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.
