Engine Mount - Lower: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the lower motor mount.
    1. Install the motor mount.
    2. Install the two bolts.

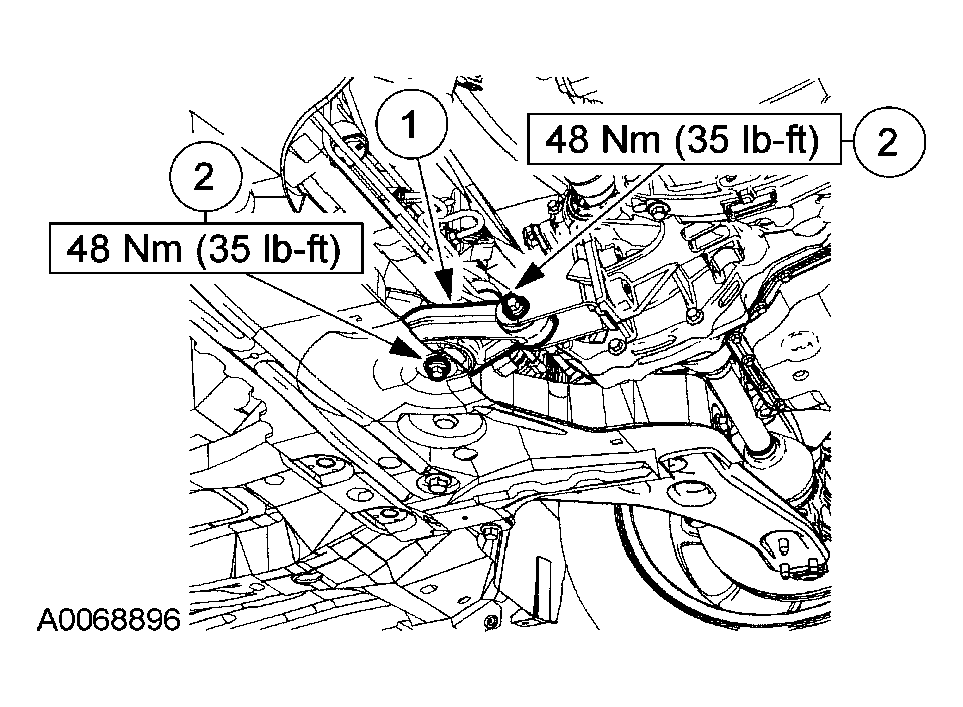

    Fig 1: Installing Lower Motor Mount
    G04035586Courtesy of FORD MOTOR CO.
