Climate Control System: Notes

Refer to the SYSTEM WIRING DIAGRAMS article for schematic and connector information.

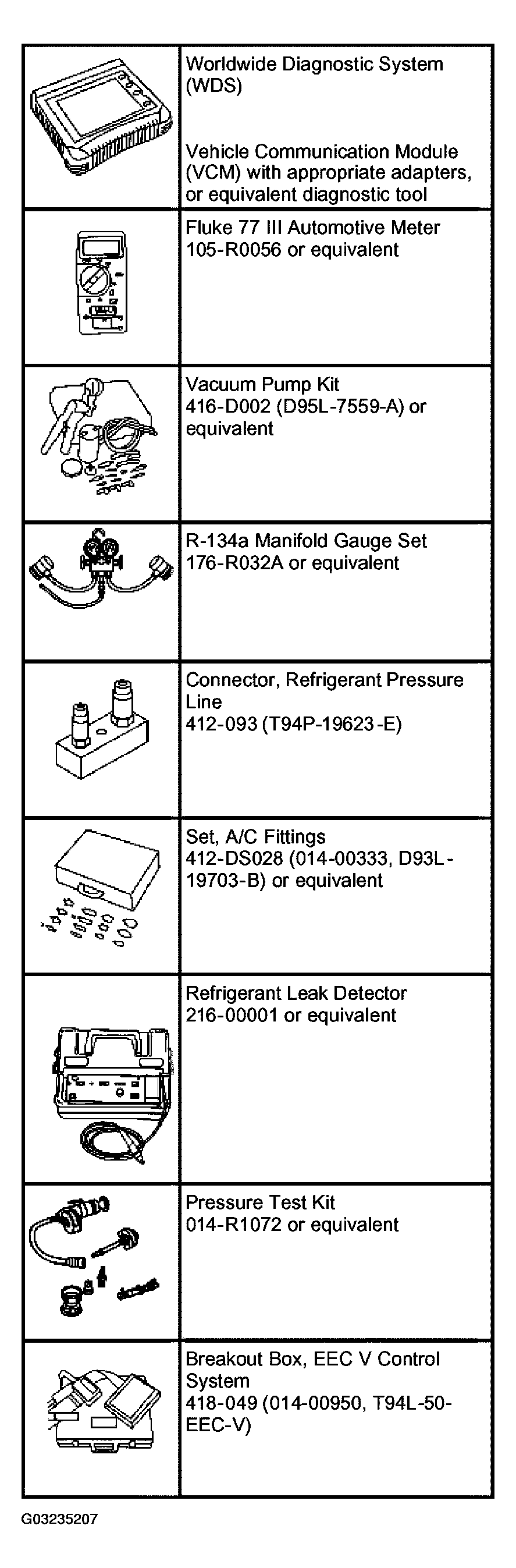

Fig 1: Identifying Special Tool
G03235207Courtesy of FORD MOTOR CO.

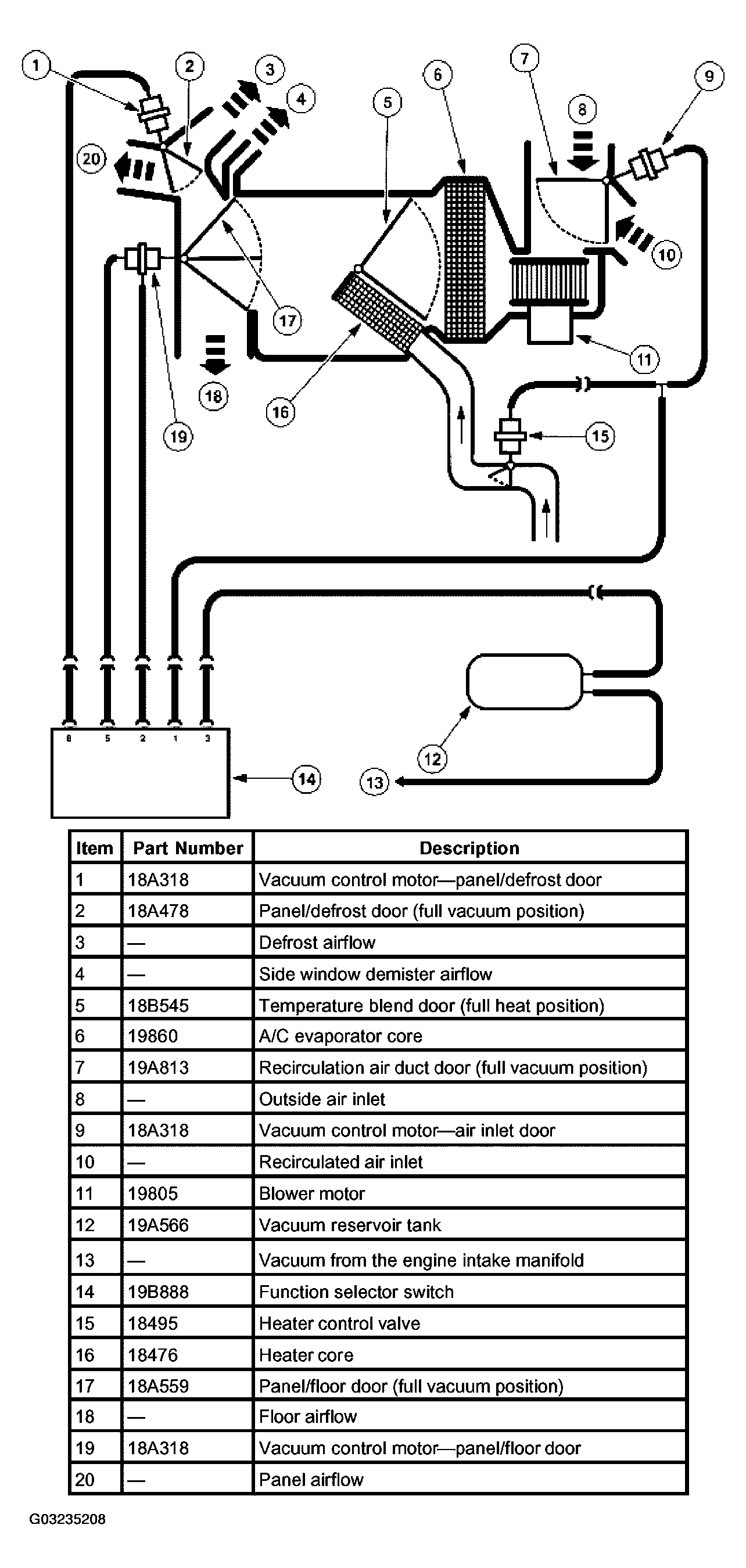

Fig 2: Vacuum Schematic - Manual Climate Control System
G03235208Courtesy of FORD MOTOR CO.

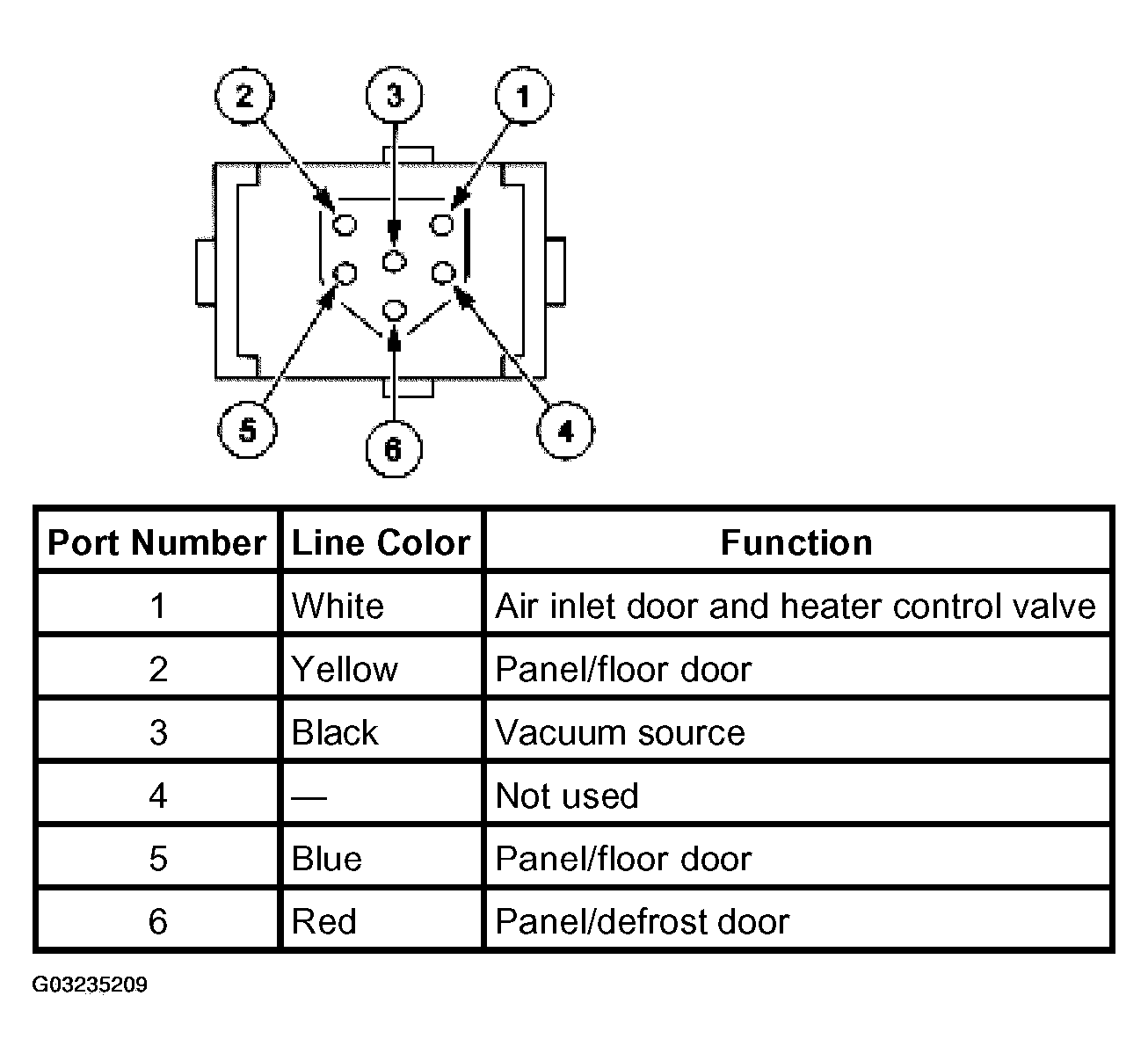

Fig 3: Vacuum Connector End View - Manual A/C
G03235209Courtesy of FORD MOTOR CO.
