Pinpoint Test C: Engine Does Not Reach Normal Operating Temperature

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

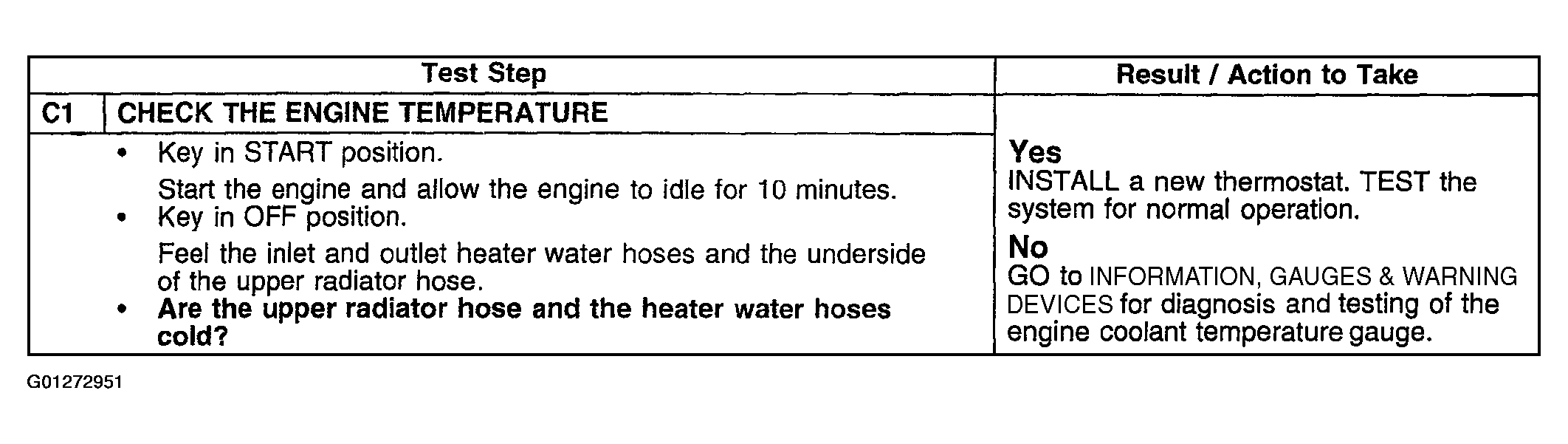

Fig 1: Pinpoint Test C: Engine Does Not Reach Normal Operating Temperature - Test Chart (C1)
G01272951Courtesy of FORD MOTOR CO.
