Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the finish panel.
    Fig 1: Removing Finish Panel
    G02755191Courtesy of FORD MOTOR CO.
  2. Disconnect the connector.

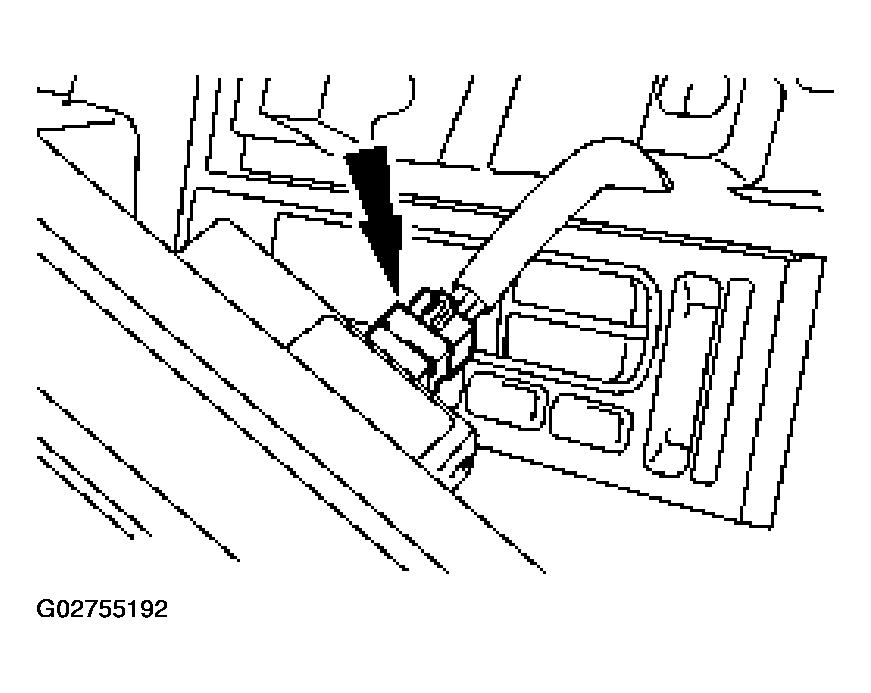

    Fig 2: Disconnecting Connector
    G02755192Courtesy of FORD MOTOR CO.
  3. Remove the climate control head.
    1. Remove the screws.
    2. Remove the climate control head.

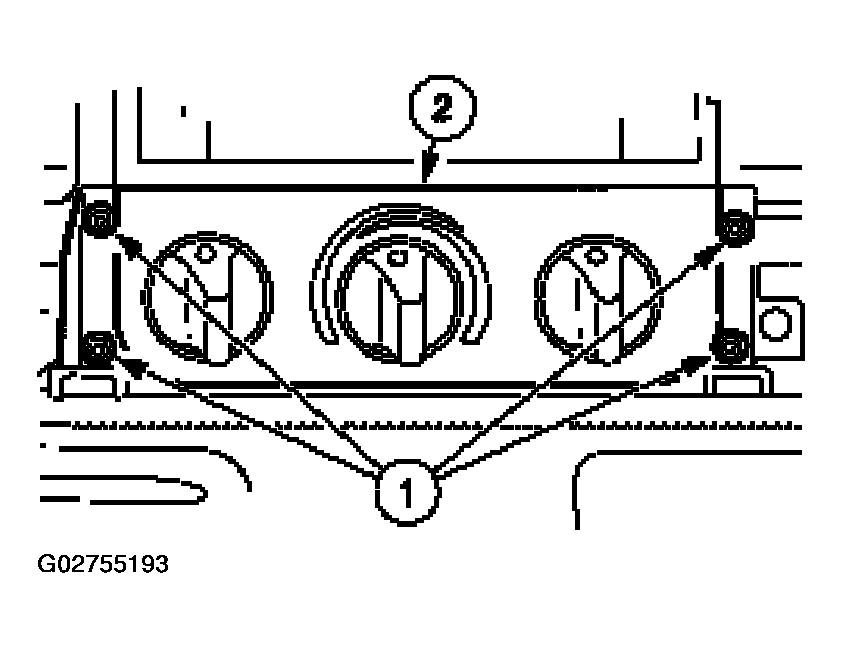

    Fig 3: Removing Climate Control Head
    G02755193Courtesy of FORD MOTOR CO.
  4. Disconnect the climate control assembly.
    1. Disconnect the electrical connectors.
    2. Disconnect the vacuum line connector.
    Fig 4: Disconnecting Vacuum Line Connector And Climate Control Assembly
    G02755194Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
