Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the finish panel.
    Fig 1: Removing Finish Panel
    G02755187Courtesy of FORD MOTOR CO.
  2. Disconnect the connector.

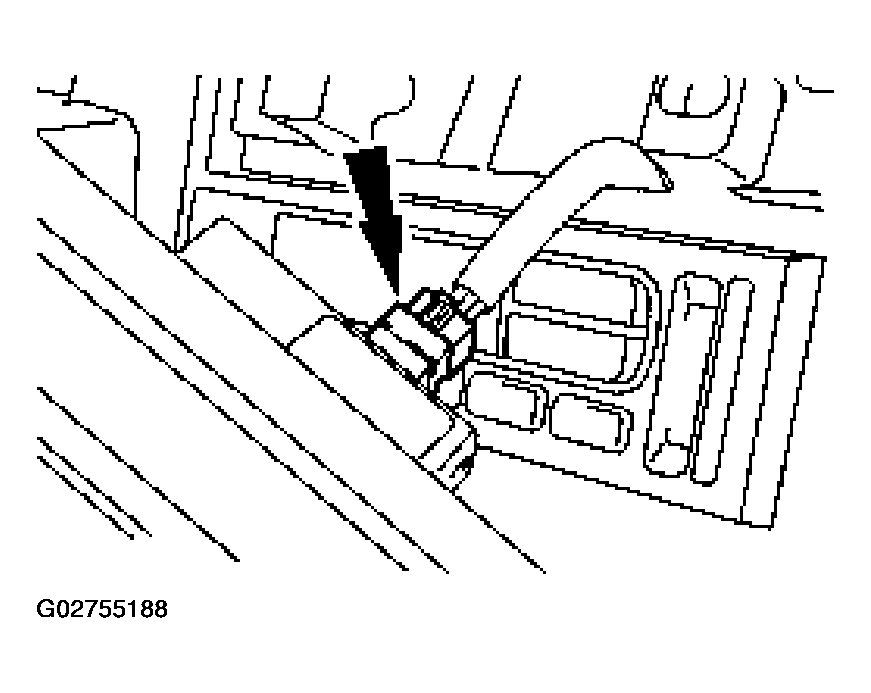

    Fig 2: Disconnecting Connector
    G02755188Courtesy of FORD MOTOR CO.
  3. Remove the screws and pull the electronic automatic temperature control (EATC) module from the instrument panel.

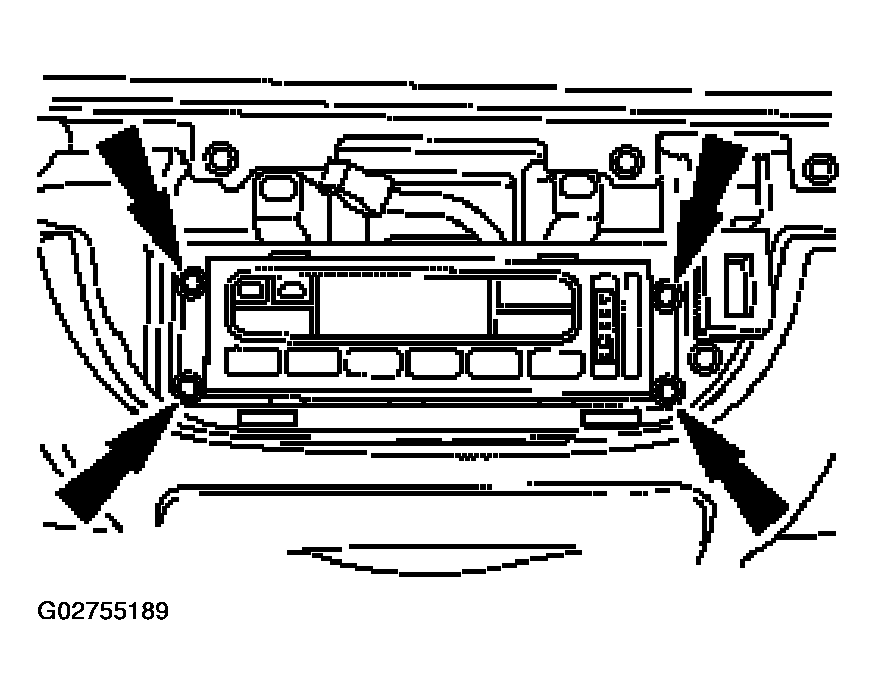

    Fig 3: Removing Screws And Electronic Automatic Temperature Control Module
    G02755189Courtesy of FORD MOTOR CO.
  4. Remove the climate control assembly.
    • Remove the nuts and the vacuum harness.
    • Disconnect the wire harness connectors and remove the EATC module.

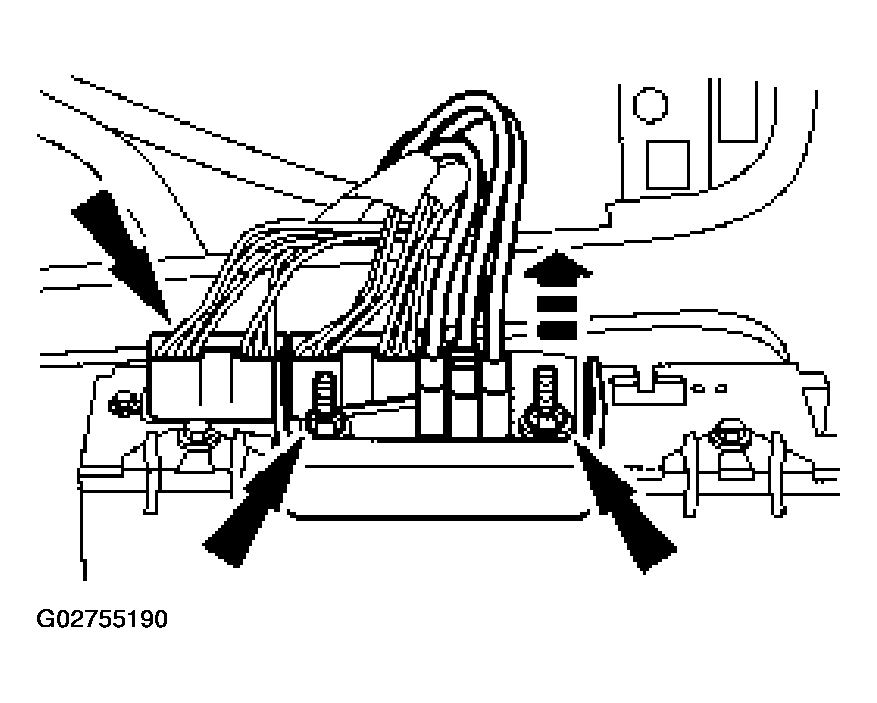

    Fig 4: Removing Climate Control Assembly
    G02755190Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
