Pinpoint Test J: Flash Code 3 - DEACTIVATOR Switch Circuit Failure

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

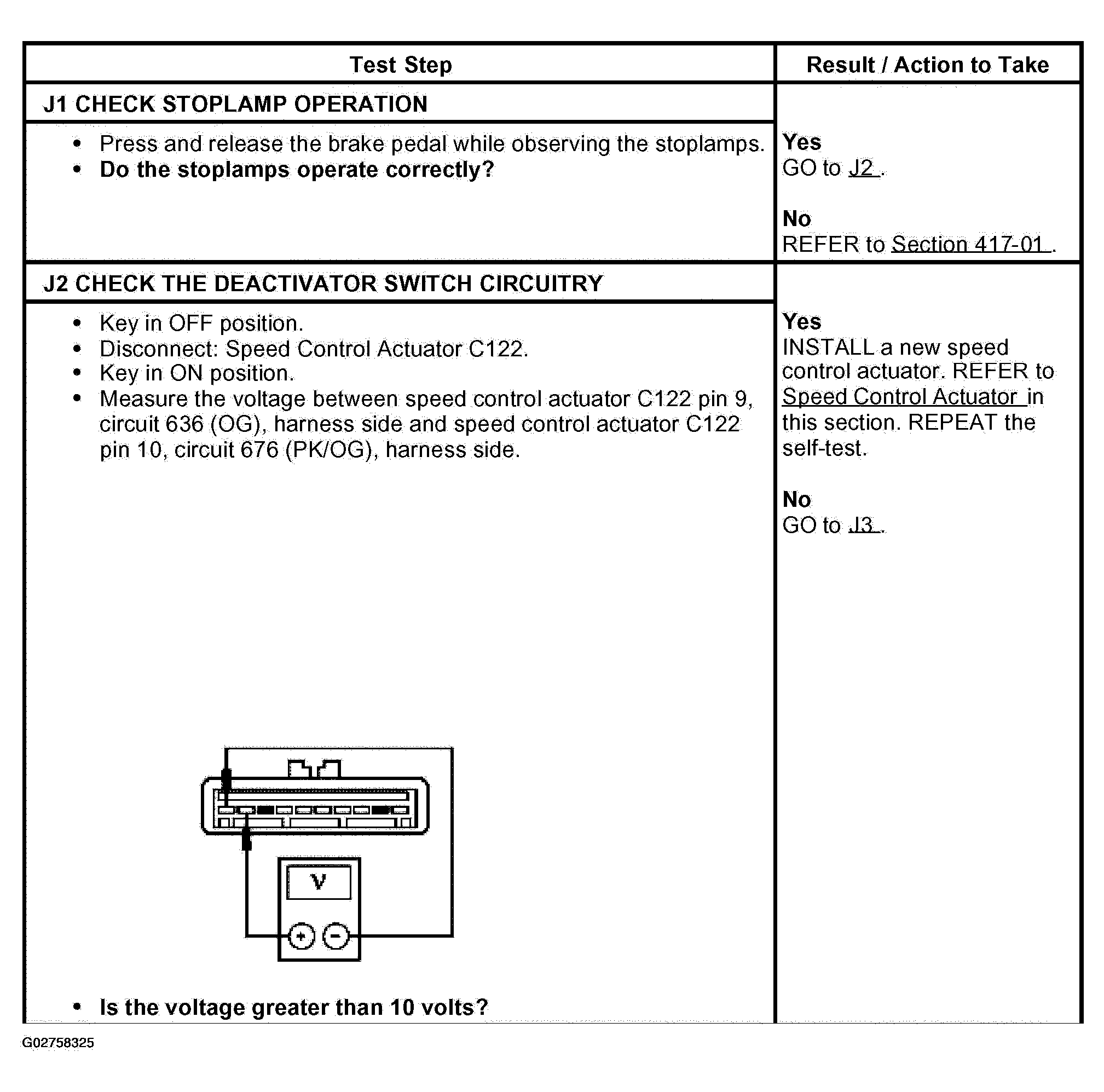

Fig 1: Pinpoint Test J: Flash Code 3 - Deactivator Switch Circuit Failure (J1 & J2)
G02758325Courtesy of FORD MOTOR CO.

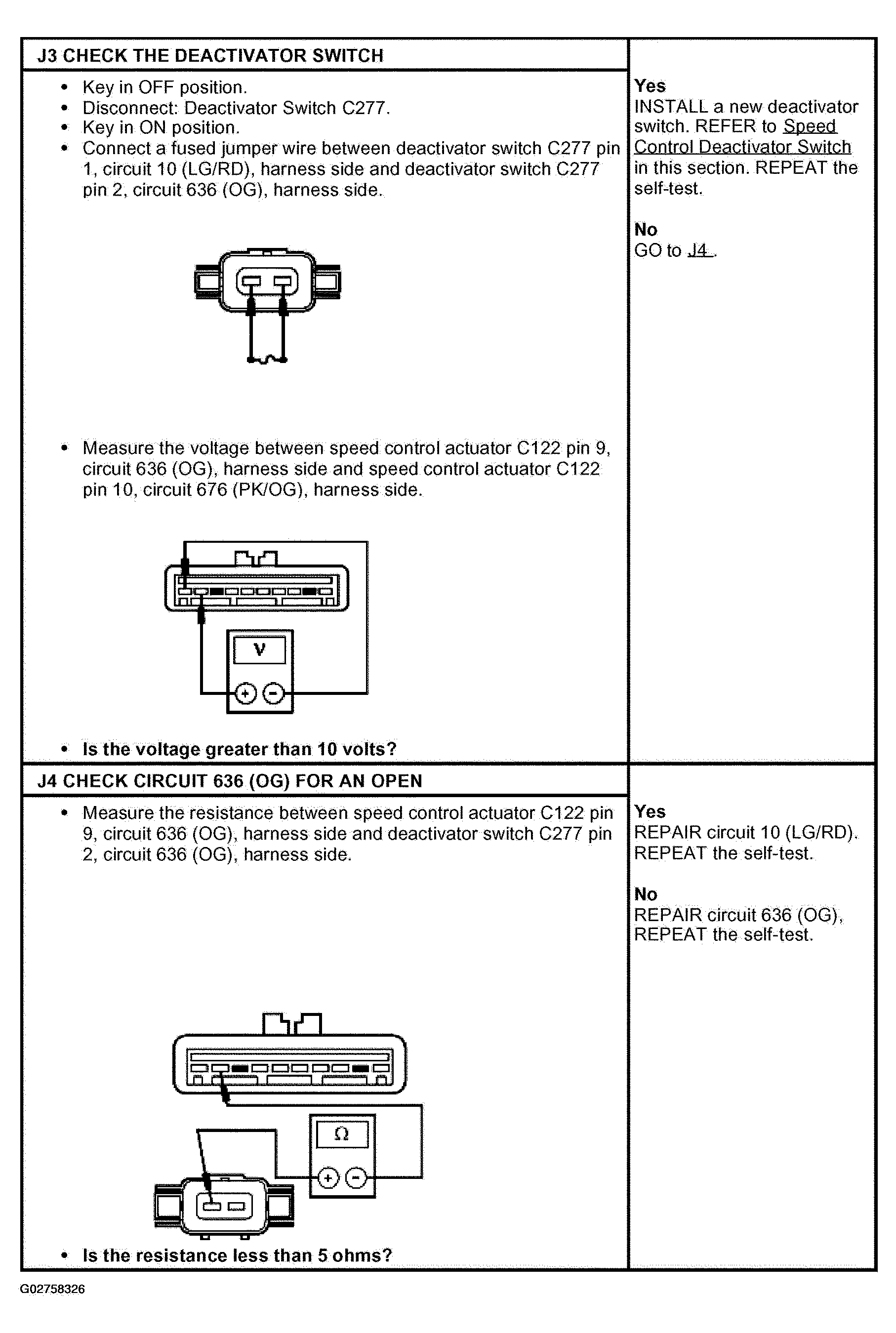

Fig 2: Pinpoint Test J: Flash Code 3 - Deactivator Switch Circuit Failure (J3 & J4)
G02758326Courtesy of FORD MOTOR CO.
