Pinpoint Test E: The Set/ACCEL Switch Is Inoperative

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

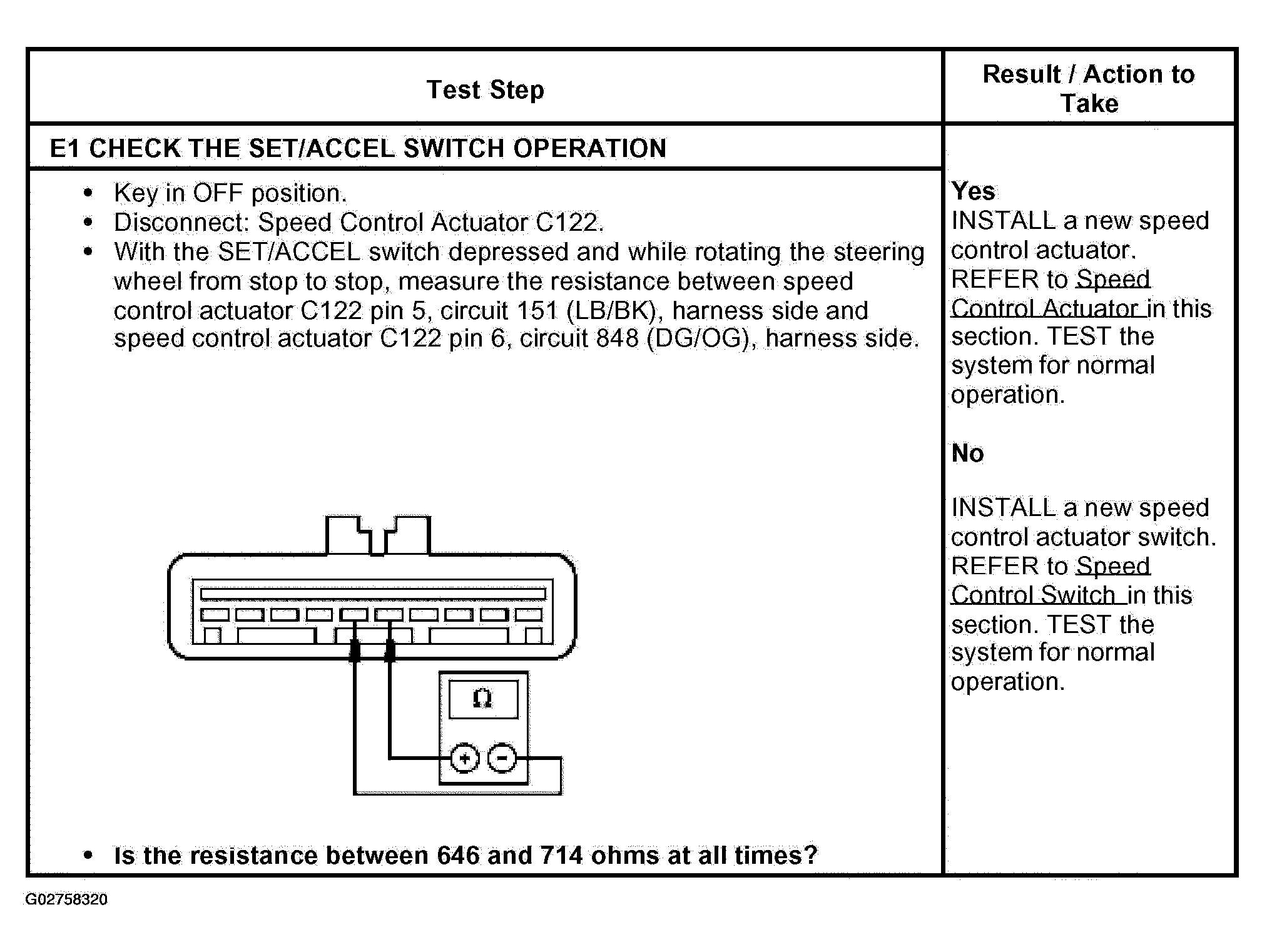

Fig 1: Pinpoint Test E: Set/Accel Switch Is Inoperative (E1)
G02758320Courtesy of FORD MOTOR CO.
