WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

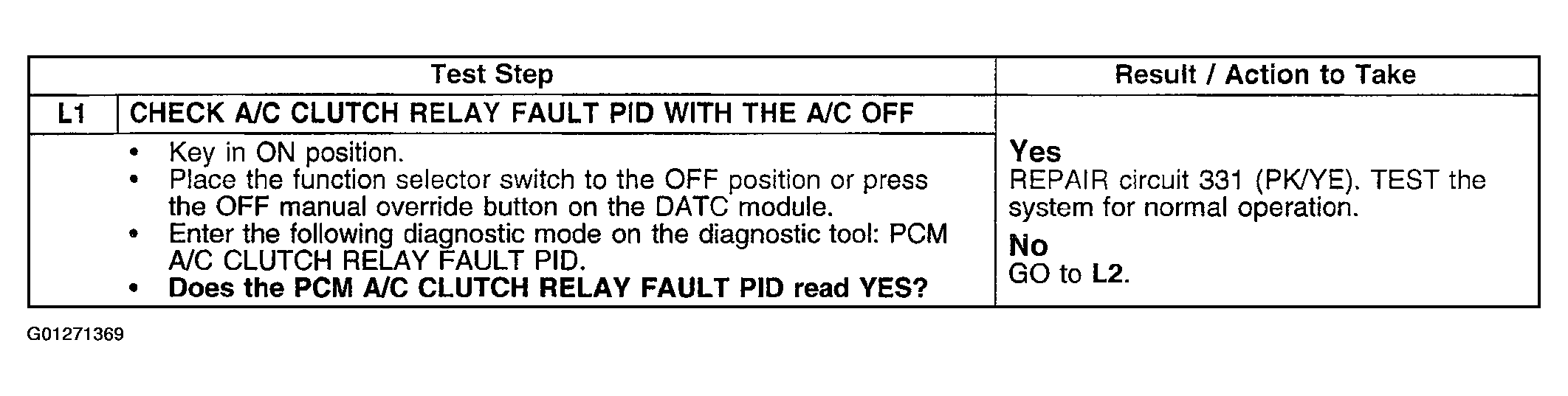

Fig 1: Pinpoint Test L: A/C Is Always On (L1)
Courtesy of FORD MOTOR CO.

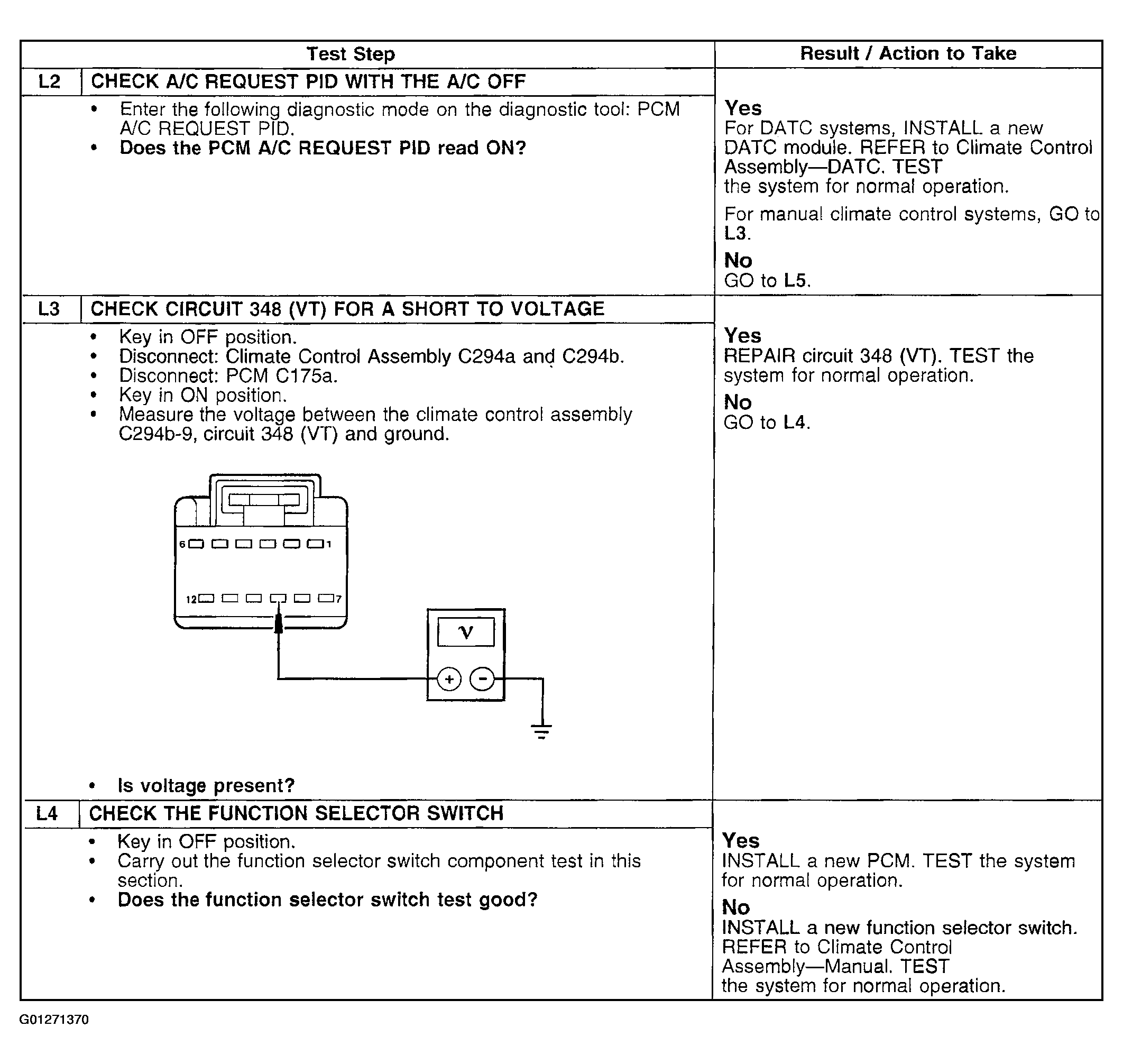

Fig 2: Pinpoint Test L: A/C Is Always On (L2 - L4)
Courtesy of FORD MOTOR CO.

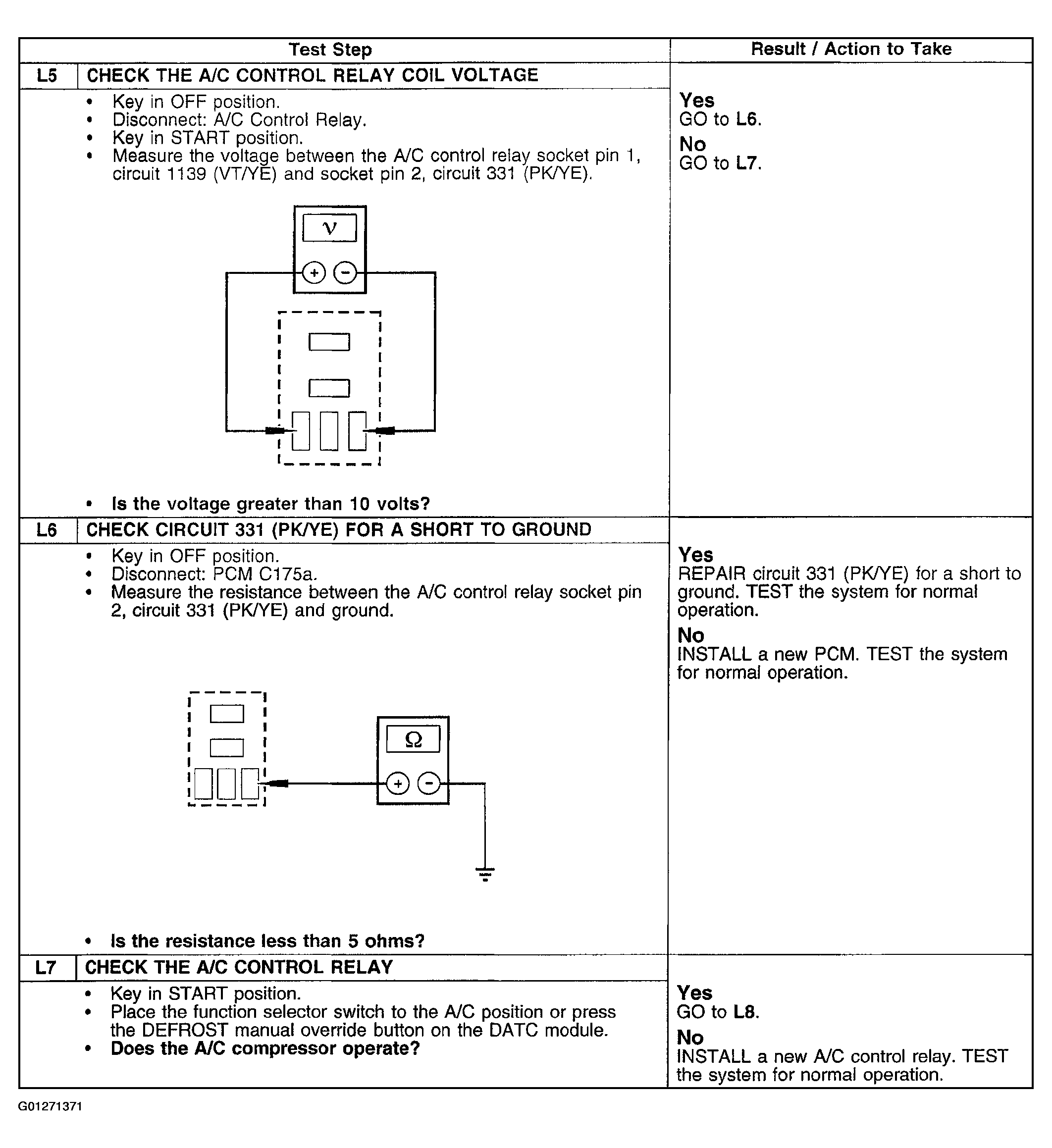

Fig 3: Pinpoint Test L: A/C Is Always On (L5 - L7)
Courtesy of FORD MOTOR CO.

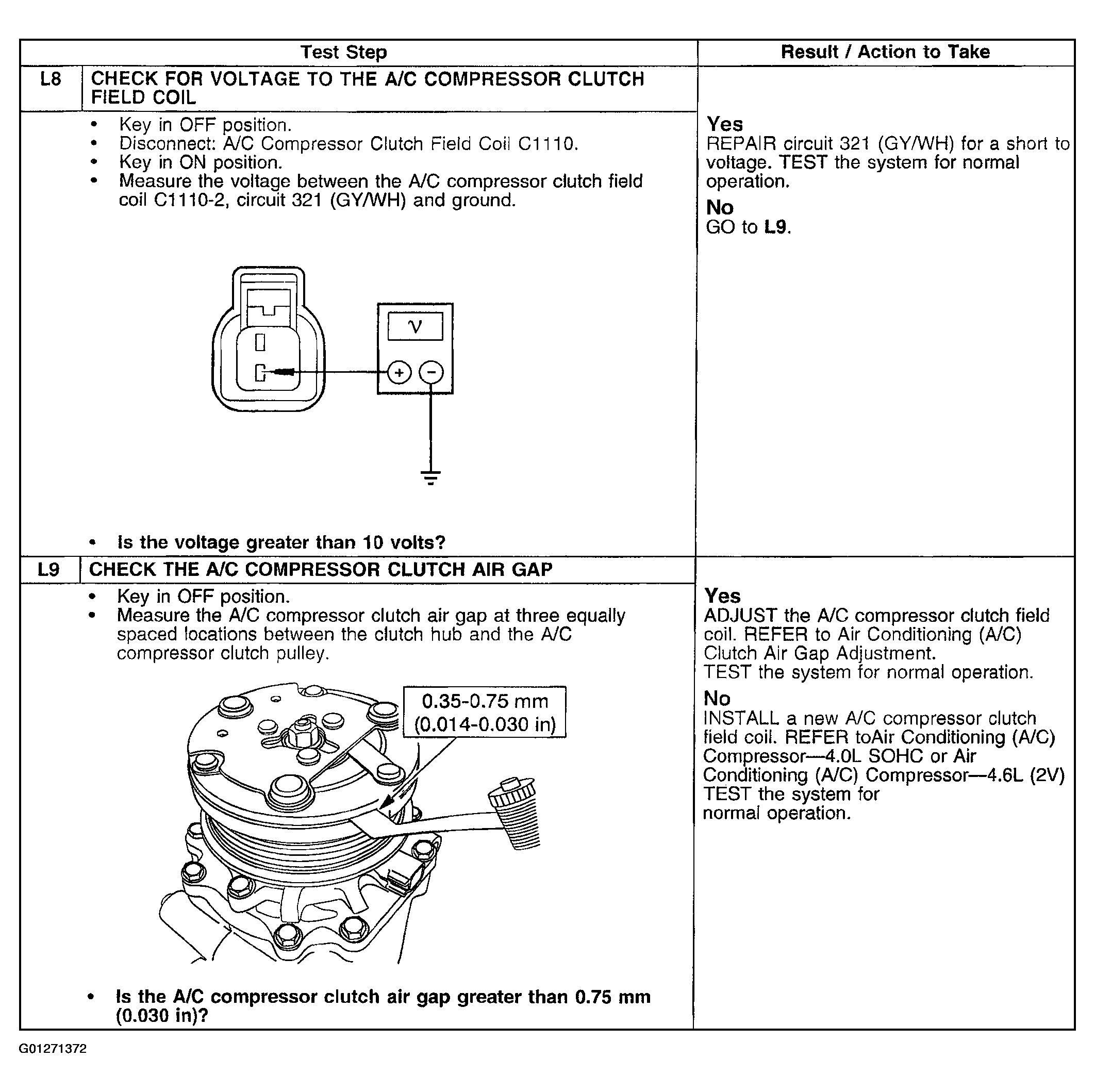

Fig 4: Pinpoint Test L: A/C Is Always On (L8 - L9)
