Removal and Installation

    NOTE: Refer to INTRODUCTION - CNG, FLEX-FUEL & GASOLINE for correct worldwide diagnostic system (WDS) hook-up procedure.
  1. Connect the diagnostic tool to the vehicle. Allow the diagnostic tool to identify the vehicle and obtain configuration data.
    • All programmable module information will automatically be retrieved by the WDS.
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  3. Remove the parts in the order indicated in the following illustration and table.

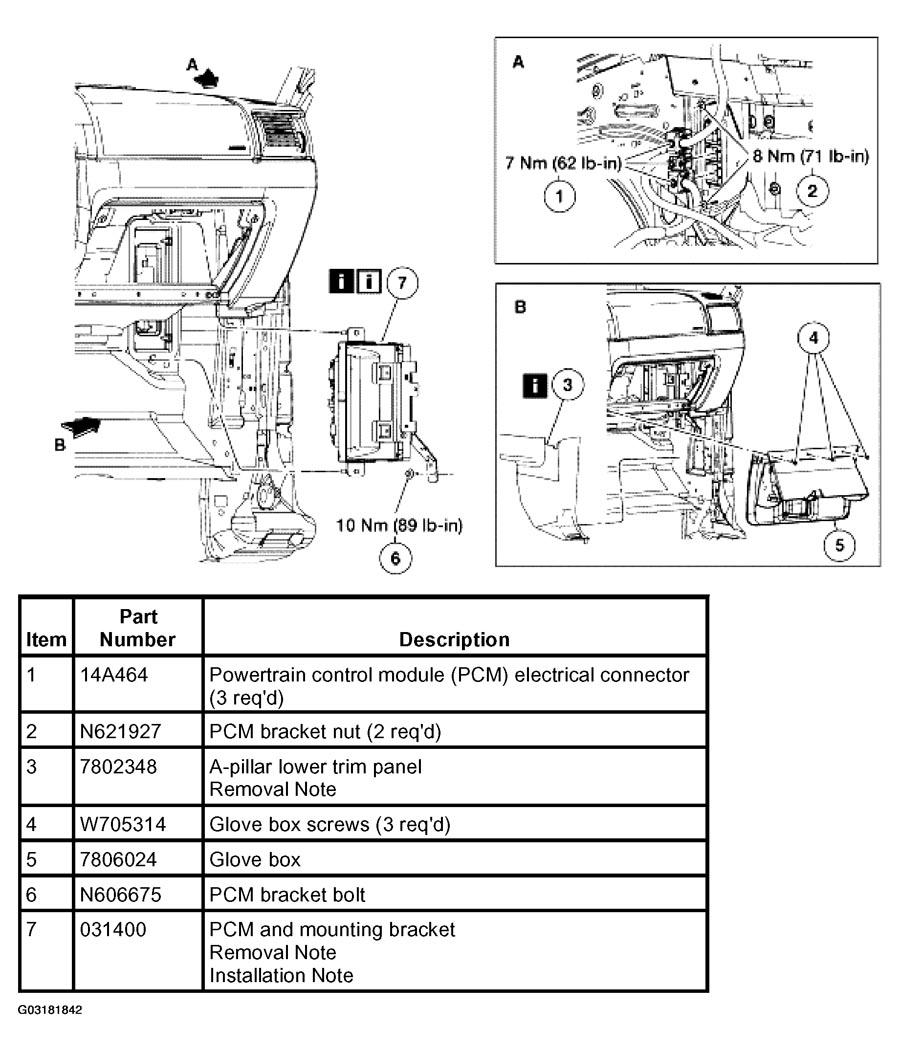

    Fig 1: Identifying Powertrain Control Module Components
    G03181842Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
