Timing Drive Components - Timing Sprockets: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the camshaft sprockets onto the camshafts and loosely install the bolts.

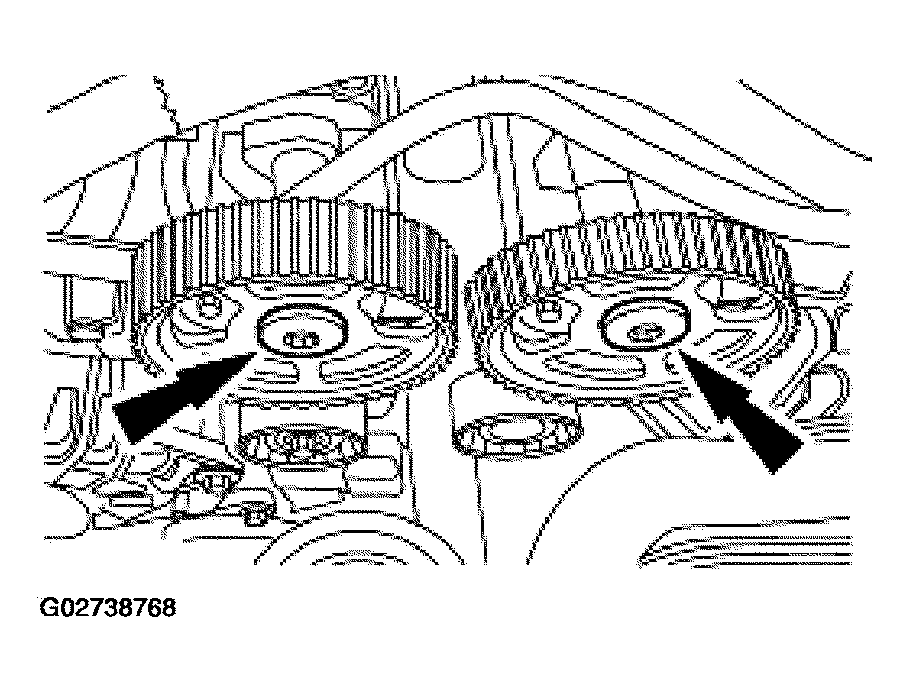

    Fig 1: Installing Camshaft Sprockets Onto Camshafts
    G02738768Courtesy of FORD MOTOR CO.
  2. Install the special tool.

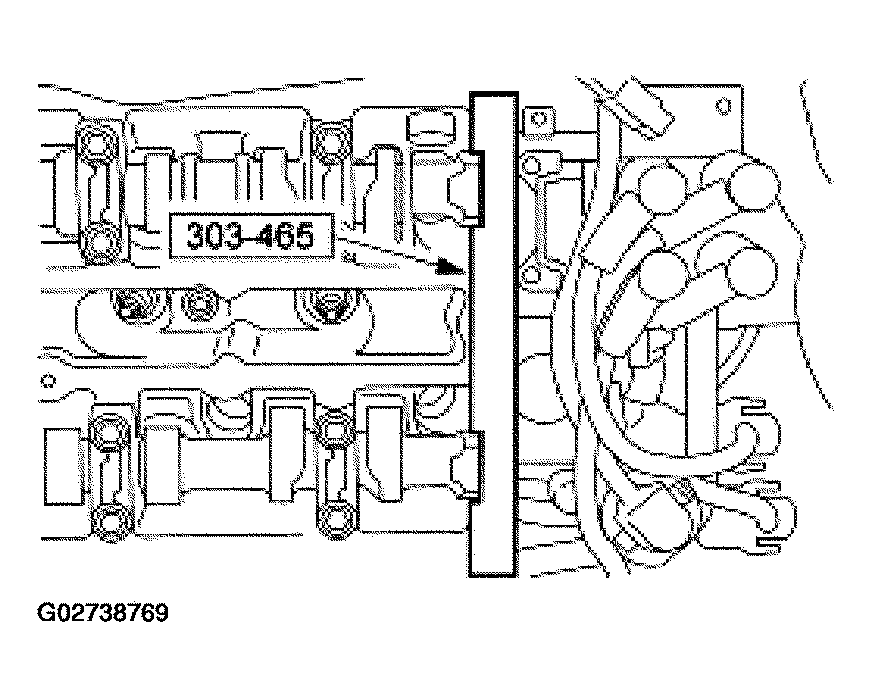

    Fig 2: Installing Special Tool
    G02738769Courtesy of FORD MOTOR CO.
  3. Raise the vehicle.
  4. Install the timing belt. For additional information, refer to TIMING BELT .
