Removal and Installation

  1. Remove the mode select switch (MSS) knob.

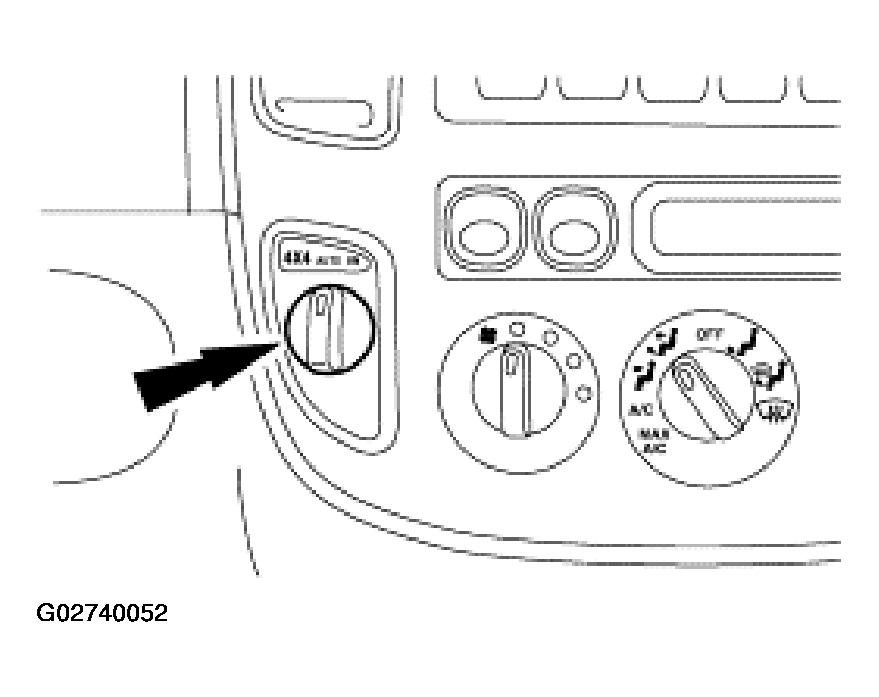

    Fig 1: Removing Mode Select Switch (MSS) Knob
    G02740052Courtesy of FORD MOTOR CO.
  2. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  3. Remove the MSS.
    1. Remove the screws.
    2. Remove the MSS.

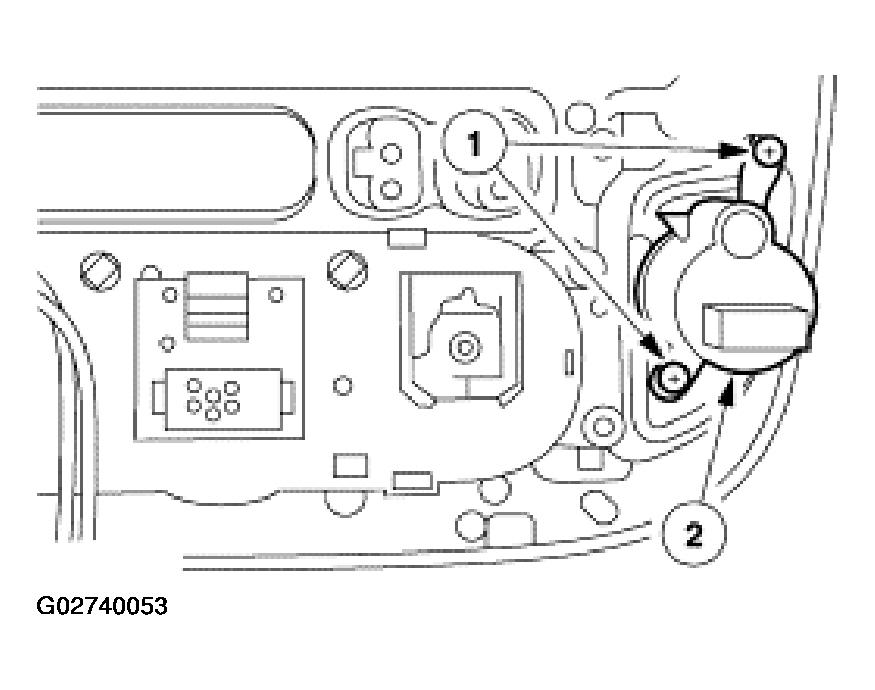

    Fig 2: Removing Mode Select Switch (MSS)
    G02740053Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
