Throttle Position (TP) Sensor - 2.0L Zetec

  1. Disconnect the throttle position (TP) sensor electrical connector.

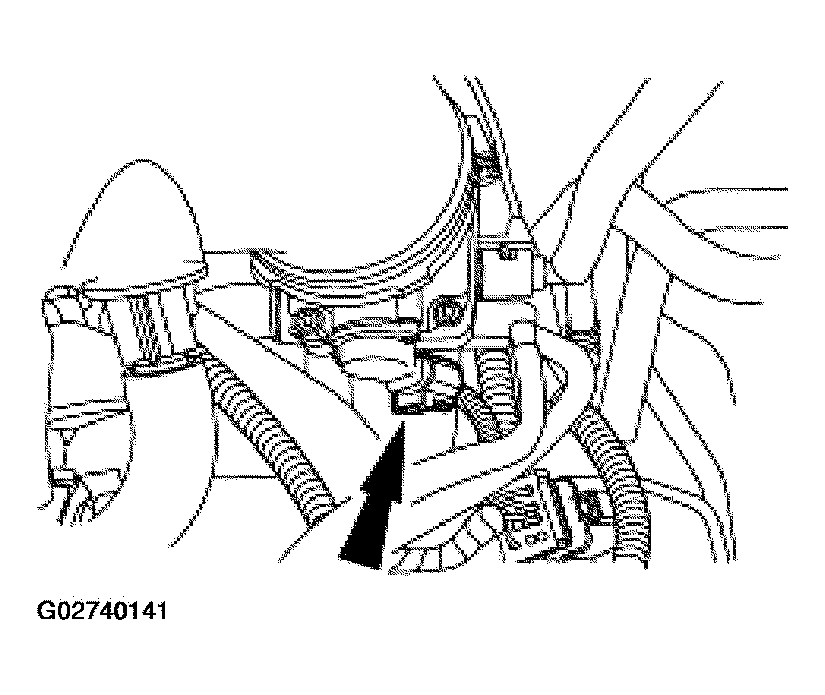

    Fig 1: Disconnecting Throttle Position Sensor Electrical Connector
    G02740141Courtesy of FORD MOTOR CO.
  2. Remove the two screws and the TP sensor.

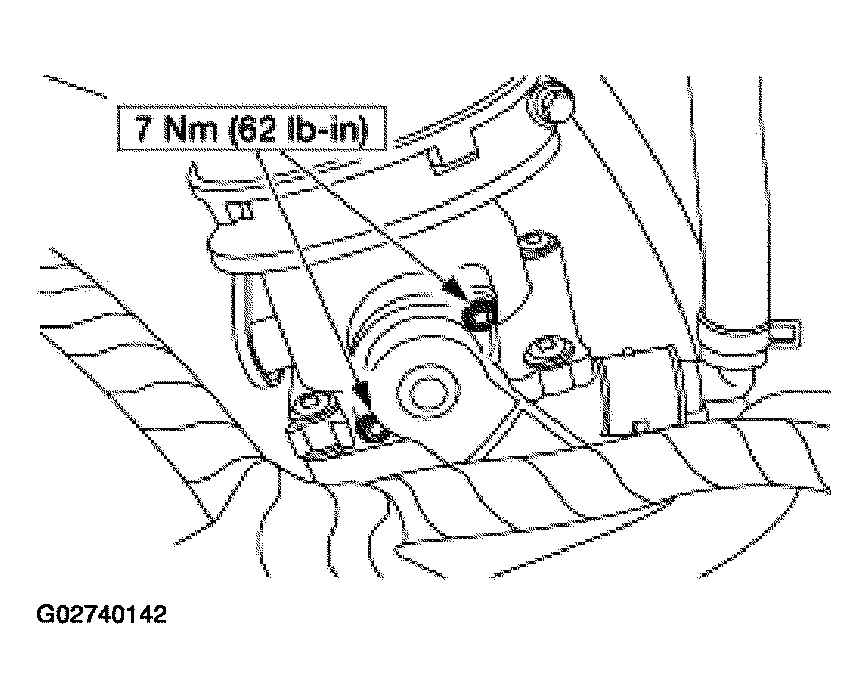

    Fig 2: Removing TP Sensor Screws
    G02740142Courtesy of FORD MOTOR CO.
    3. CAUTION: Be sure to hand start the TP sensor screws. These are self-threading screws. Failure to hand start them can cause damage to the throttle body.
  3. To install, reverse the removal procedure.
