Pinpoint Test F: The Yellow Abs Warning Indicator Does Not Self-Check

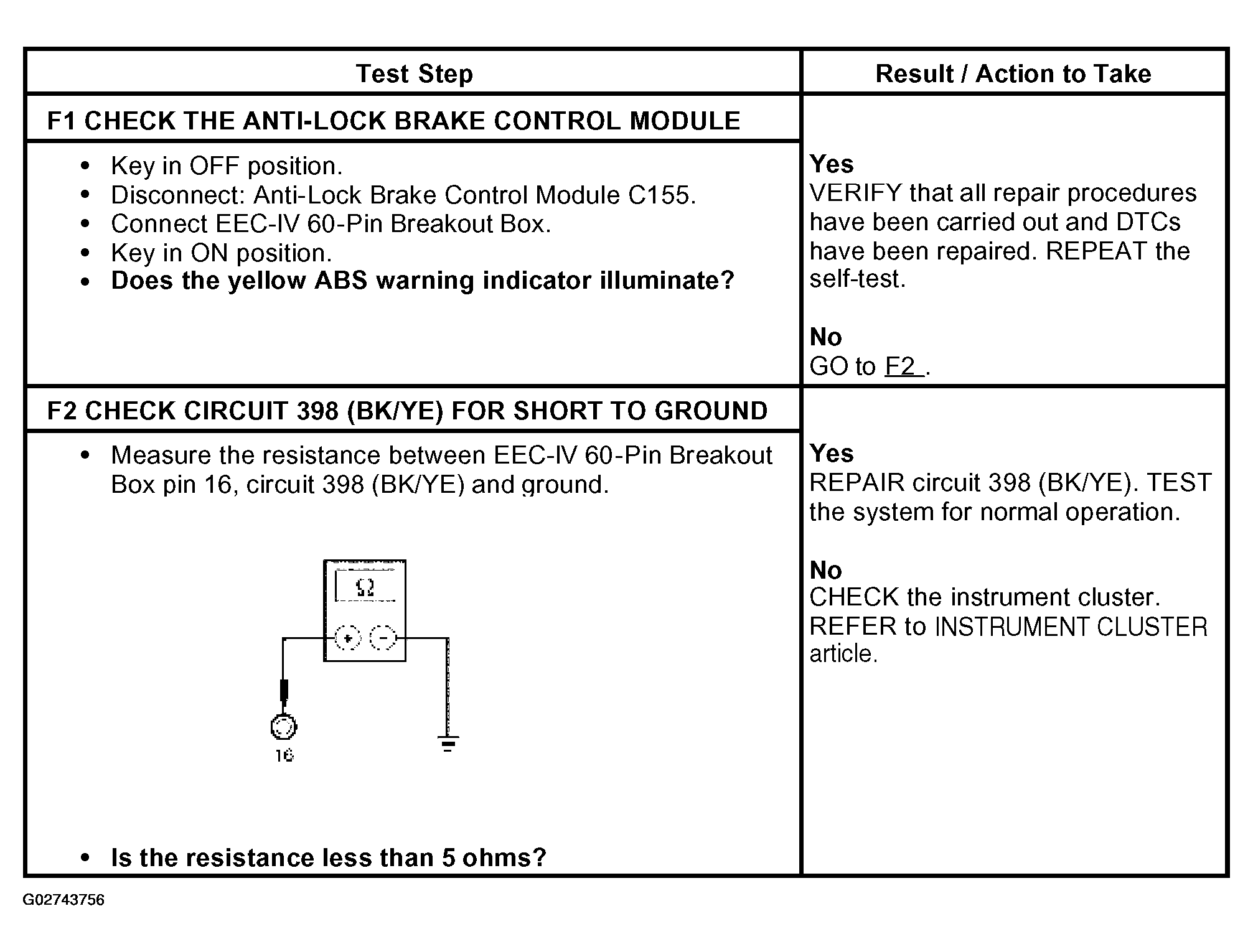

Fig 1: Pinpoint Test F: Yellow ABS Warning Indicator Does Not Self-Check

G02743756

Courtesy of FORD MOTOR CO.
