Speed Control Switch: Removal

  1. Remove the driver side air bag. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the speed control switches.
    1. Disconnect the speed control switch electrical connector.
    2. Remove the two bolts.
    3. Remove the speed control switches.

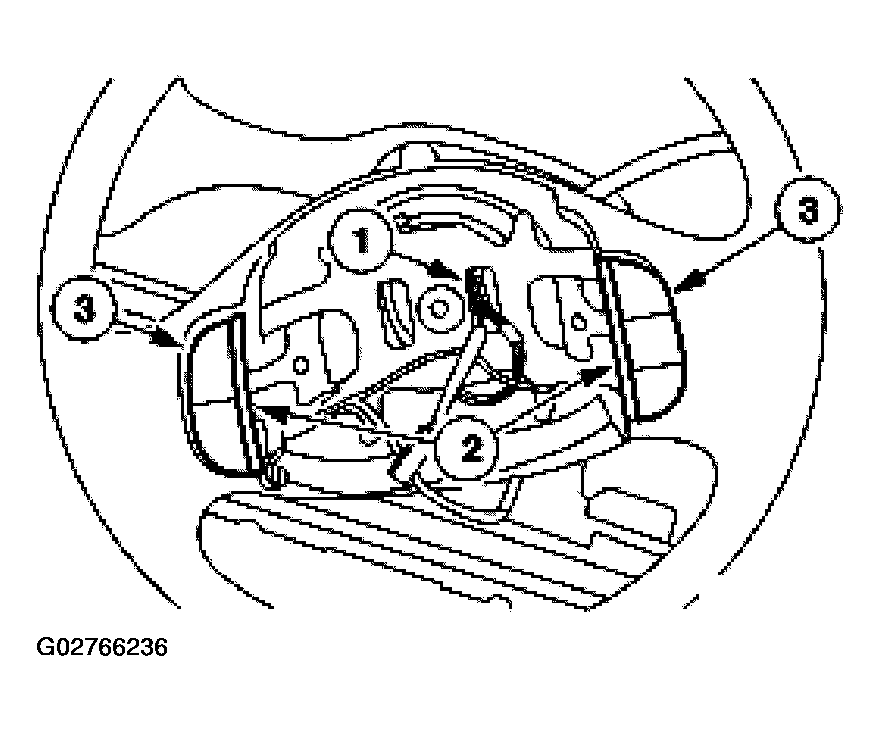

    Fig 1: Removing Speed Control Switches
    G02766236Courtesy of FORD MOTOR CO.
