Removal and Installation

  1. Remove the control assembly. For additional information, refer to CONTROL ASSEMBLY  .
  2. Remove the temperature control selector knob.

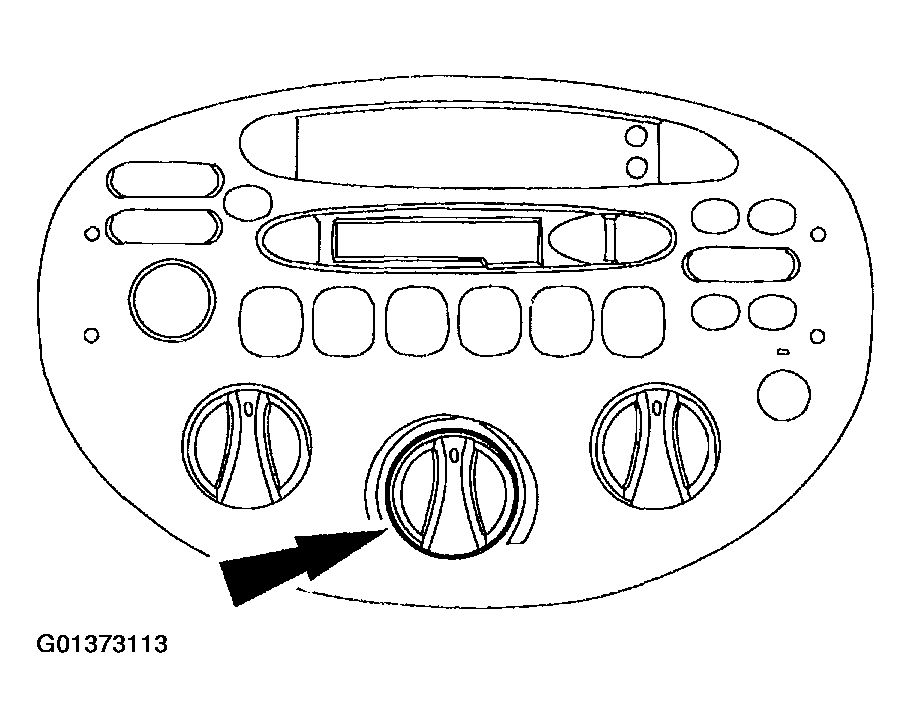

    Fig 1: Removing Temperature Control Selector Knob
    G01373113Courtesy of FORD MOTOR CO.
  3. Remove the screw and the temperature control switch with the heater temperature cable attached.

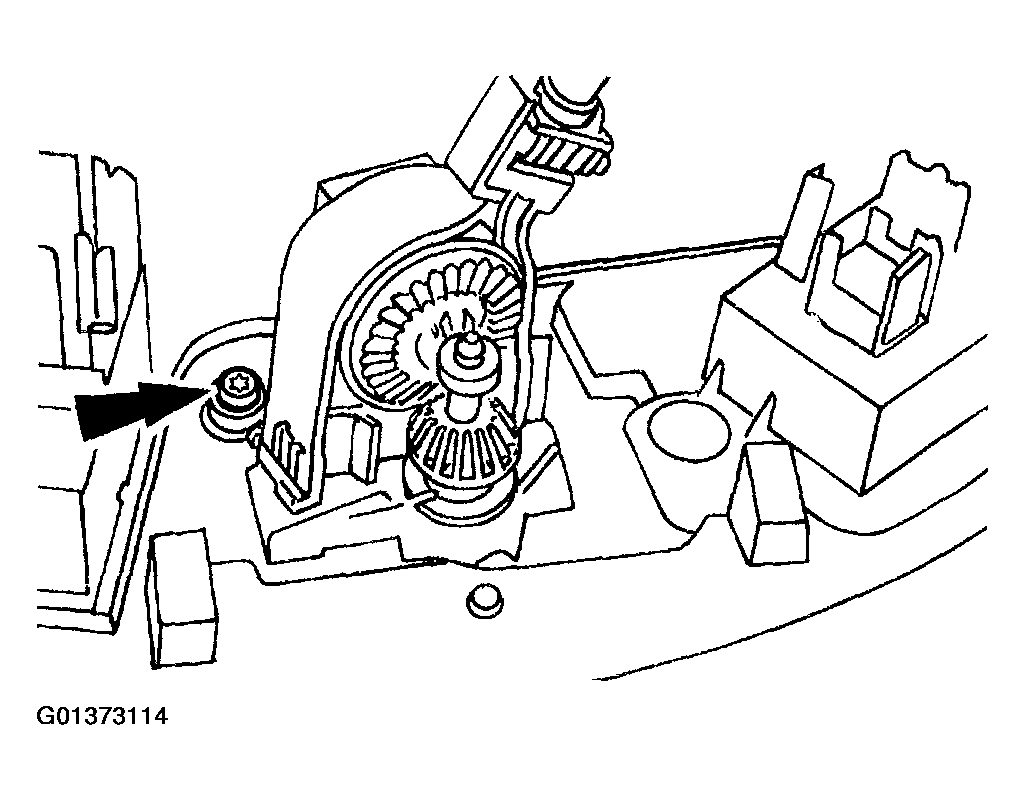

    Fig 2: Removing Screw And Temperature Control Switch With Heater Temperature Cable Attached
    G01373114Courtesy of FORD MOTOR CO.
  4. Release the three clips, and disconnect the temperature control switch from the temperature cable.

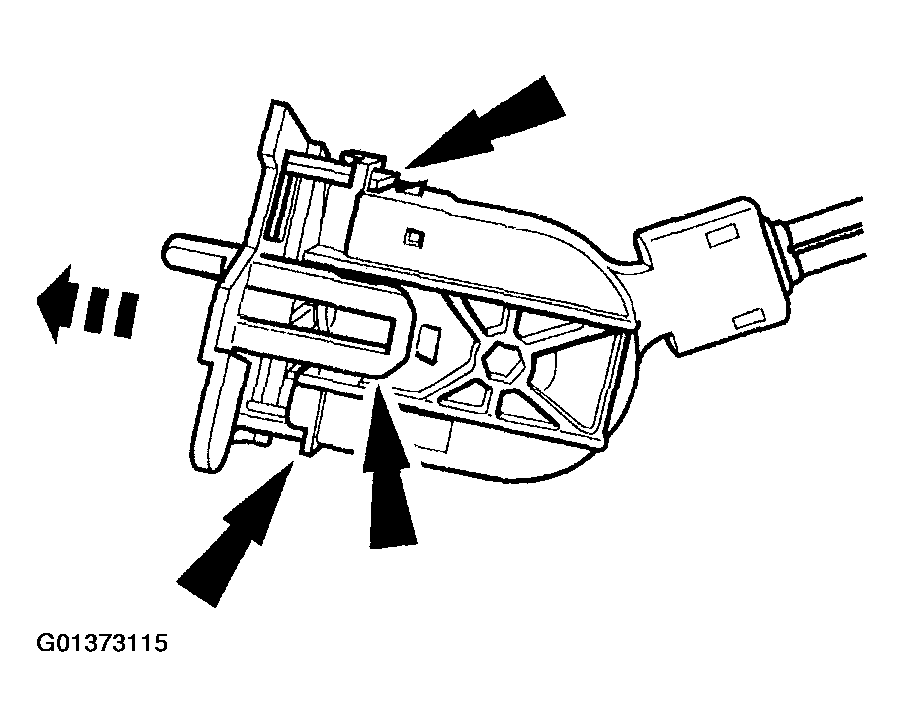

    Fig 3: Disconnecting Temperature Control Switch From Temperature Cable
    G01373115Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
