Pinpoint Test F: The Blower Motor Does Not Operate

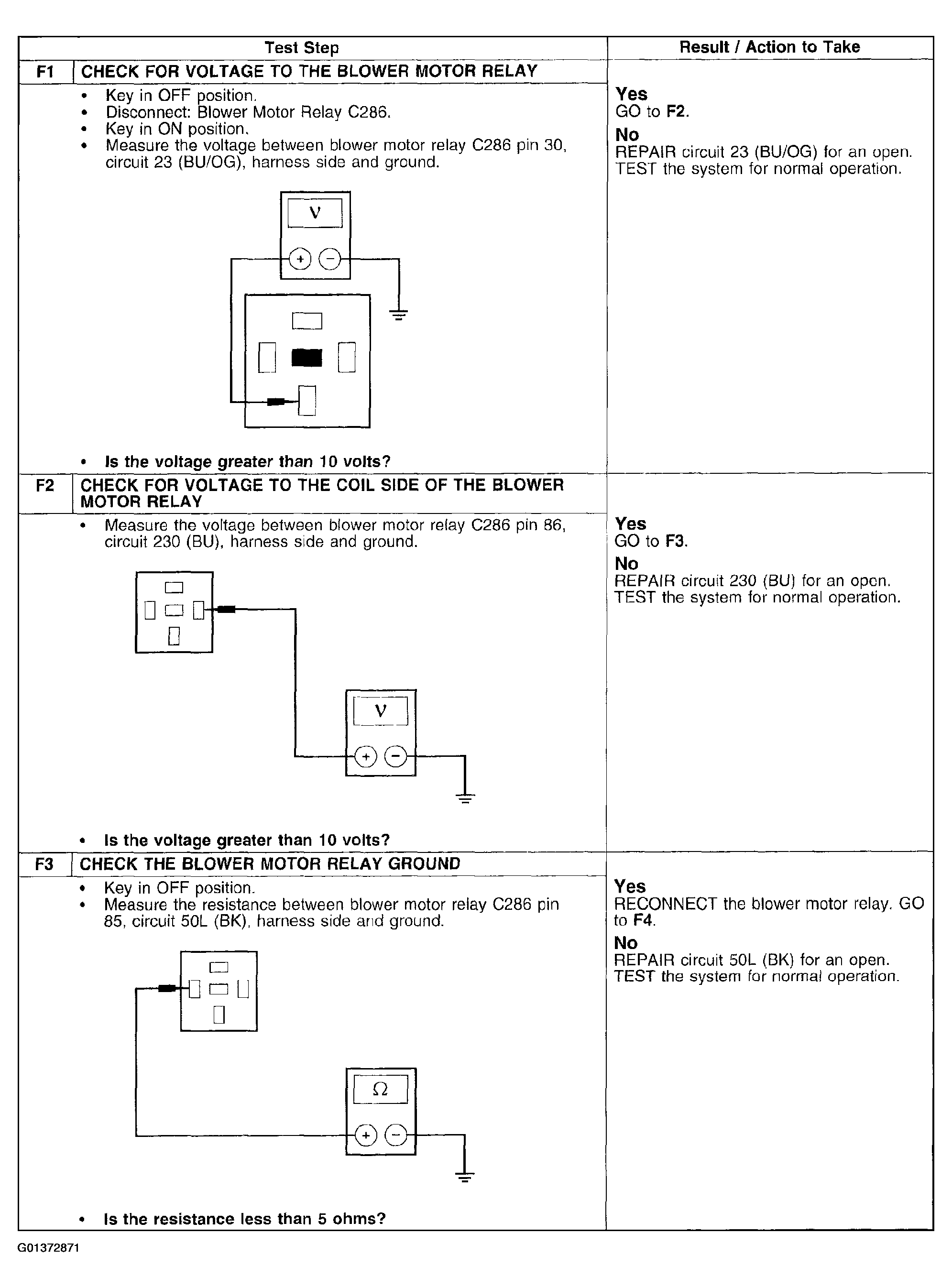

Fig 1: Pinpoint Test F: Blower Motor Does Not Operate (Steps F1-F3)
G01372871Courtesy of FORD MOTOR CO.

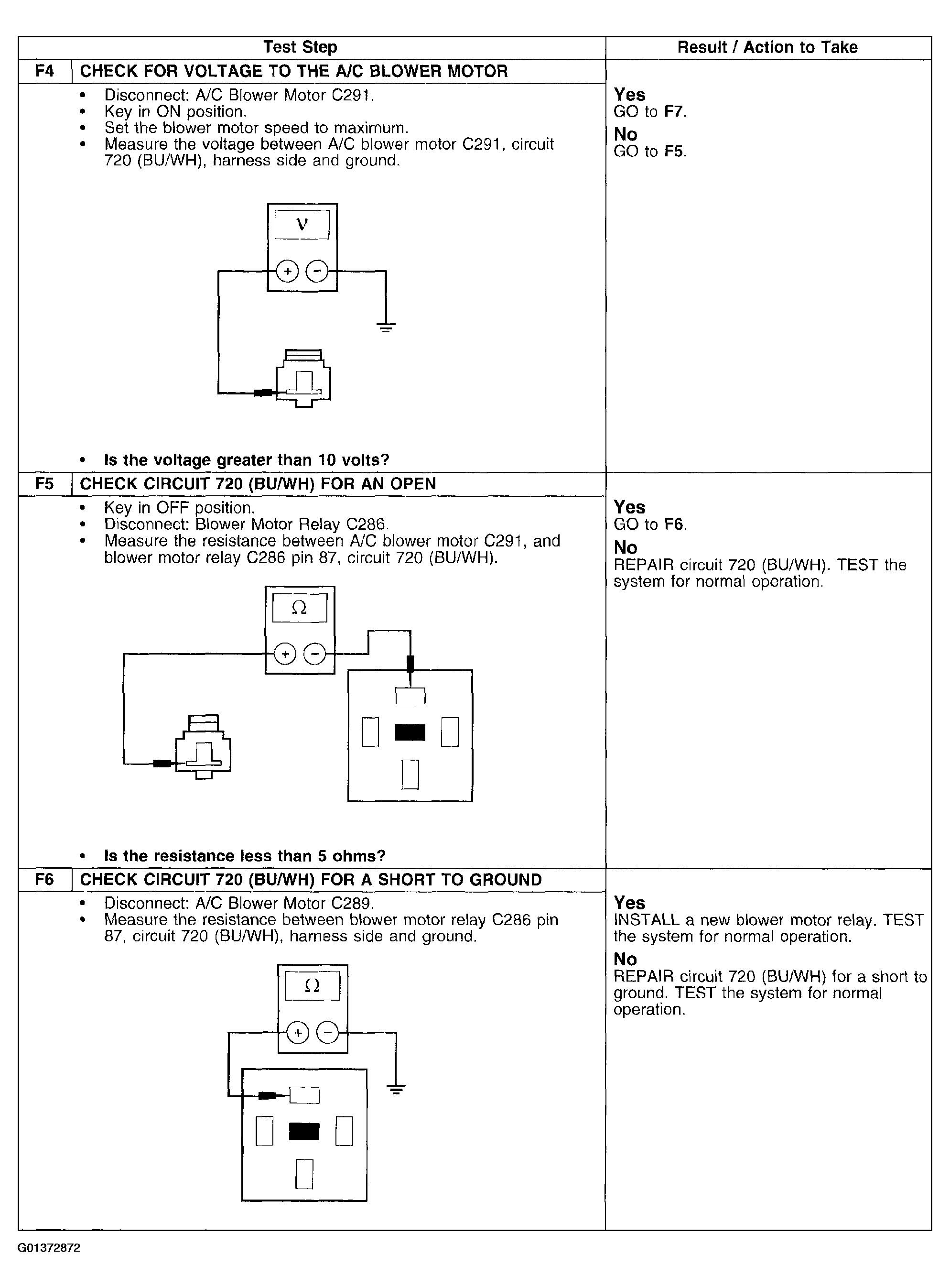

Fig 2: Pinpoint Test F: Blower Motor Does Not Operate (Steps F4-F6)
G01372872Courtesy of FORD MOTOR CO.

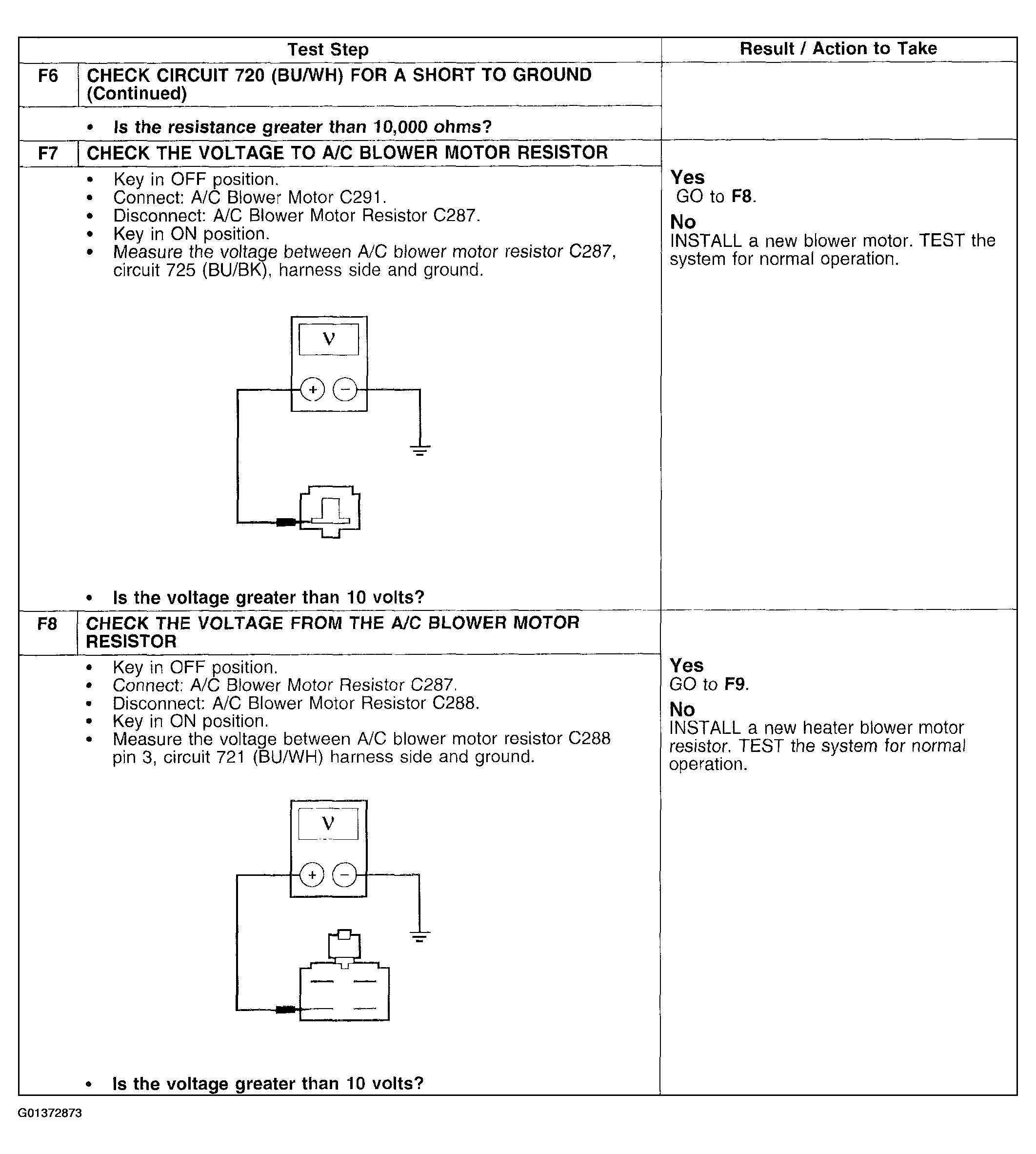

Fig 3: Pinpoint Test F: Blower Motor Does Not Operate (Steps F6-F8)
G01372873Courtesy of FORD MOTOR CO.

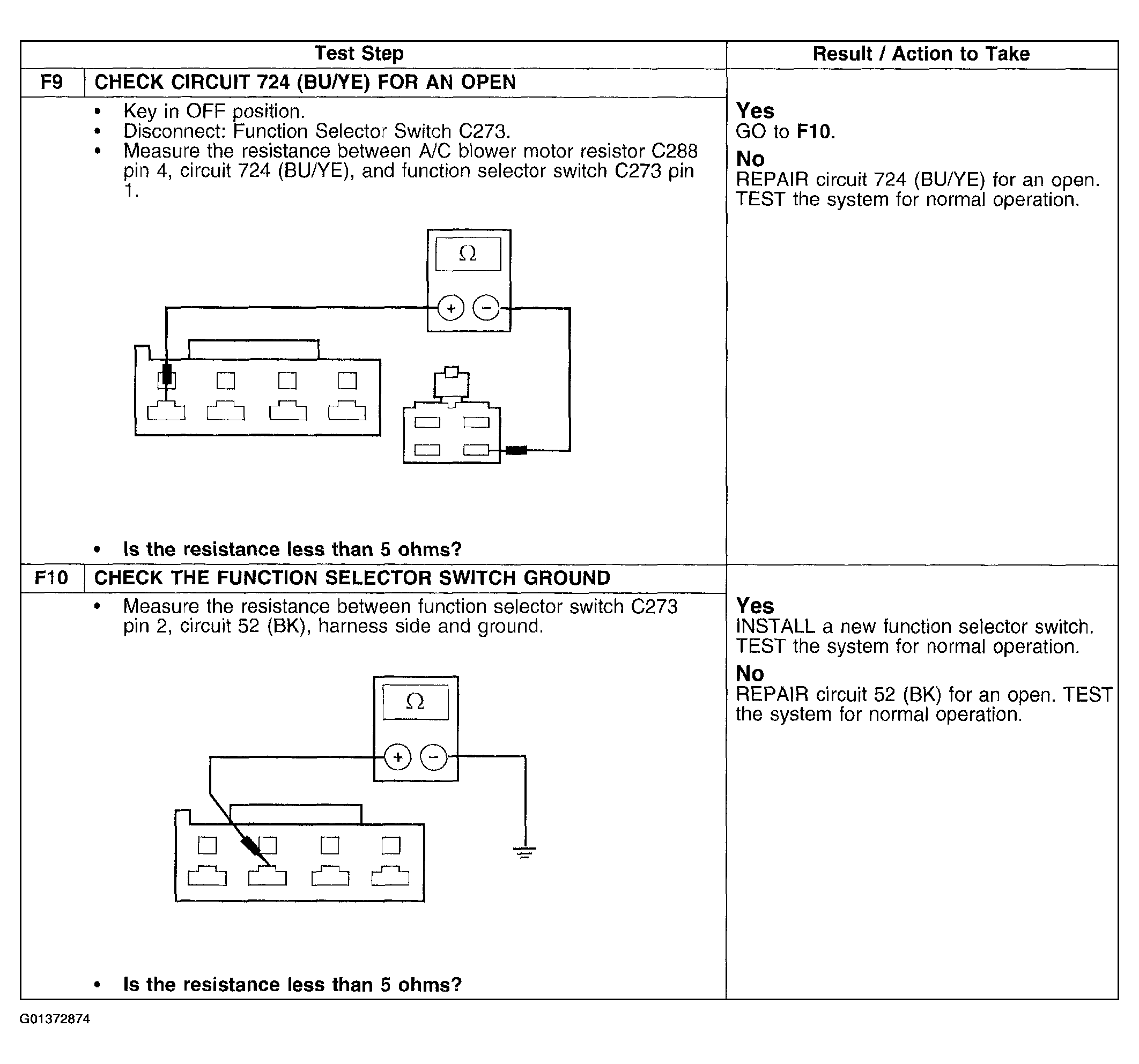

Fig 4: Pinpoint Test F: Blower Motor Does Not Operate (Steps F9-F10)
G01372874Courtesy of FORD MOTOR CO.
