System Airflow Description - Manual Climate Control: Panel/Floor

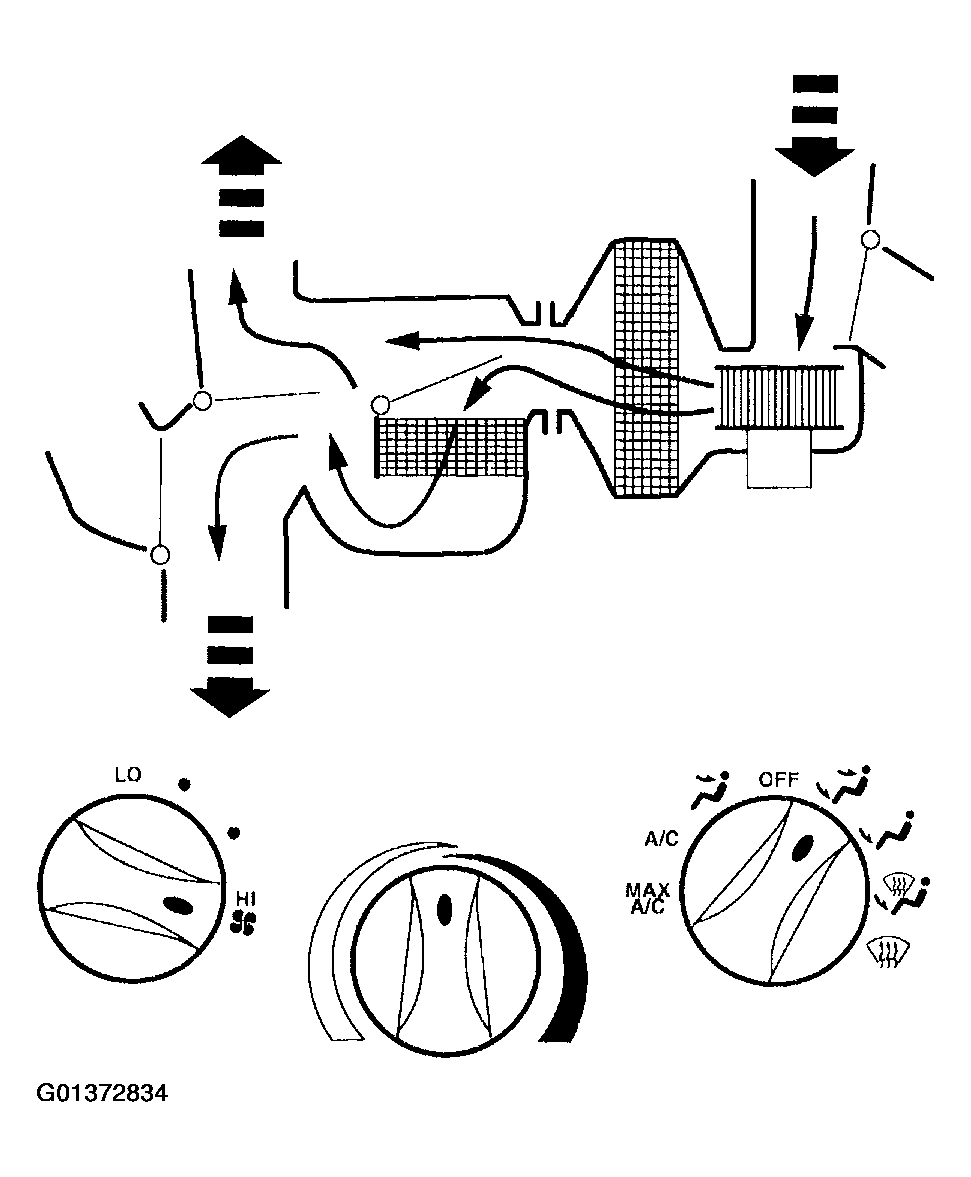

Fig 1: Identifying System Airflow Description - Manual Climate Control (Panel/Floor)

Courtesy of FORD MOTOR CO.

When PANEL/FLOOR is selected:

• The air inlet door vacuum control motor is at no vacuum, admitting only outside air into the passenger compartment.
• The floor/defrost door vacuum control motor is at full vacuum and the panel/floor door vacuum control motor is at partial vacuum, directing airflow to the floor duct and the instrument panel A/C registers.
• The A/C compressor will operate if the outside temperature is above approximately 6°C (43°F).
• The blower motor is on.
