System Airflow Description - Manual Climate Control: Floor

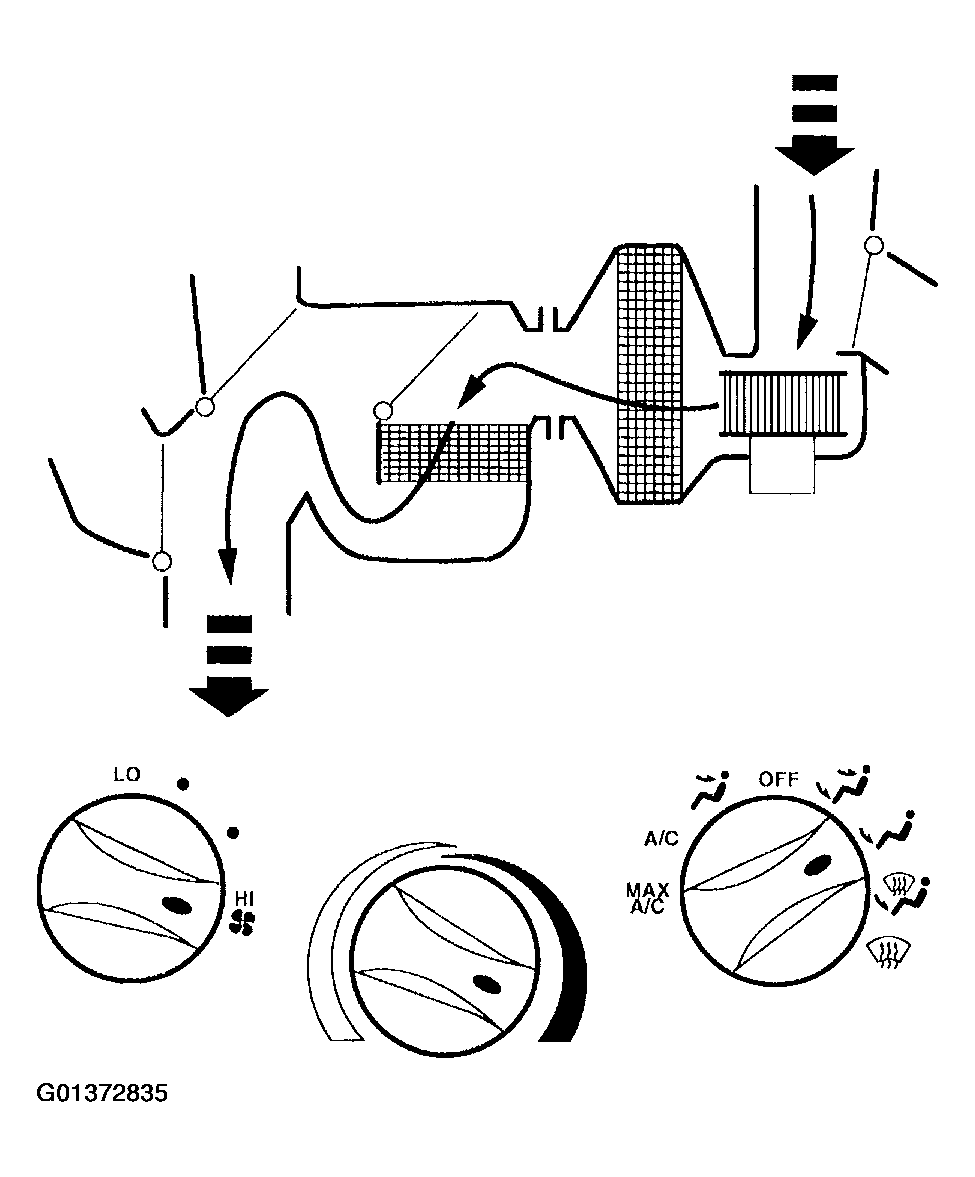

Fig 1: Identifying System Airflow Description - Manual Climate Control (Floor)

Courtesy of FORD MOTOR CO.

When FLOOR is selected:

• The air inlet door vacuum control motor is at no vacuum, admitting only outside air into the passenger compartment.
• The floor/defrost door vacuum control motor is at full vacuum and the panel/floor door vacuum control motor is at no vacuum, directing airflow to the floor duct.
• The temperature can be adjusted to heat the air, but the air cannot be cooled below the outside temperature.
• The A/C compressor will not operate.
• The blower motor is on.
