Entertainment System - General Information
>>
Diagnosis And Testing
>>
Audio System
>>
Symptom Chart
Symptom Chart

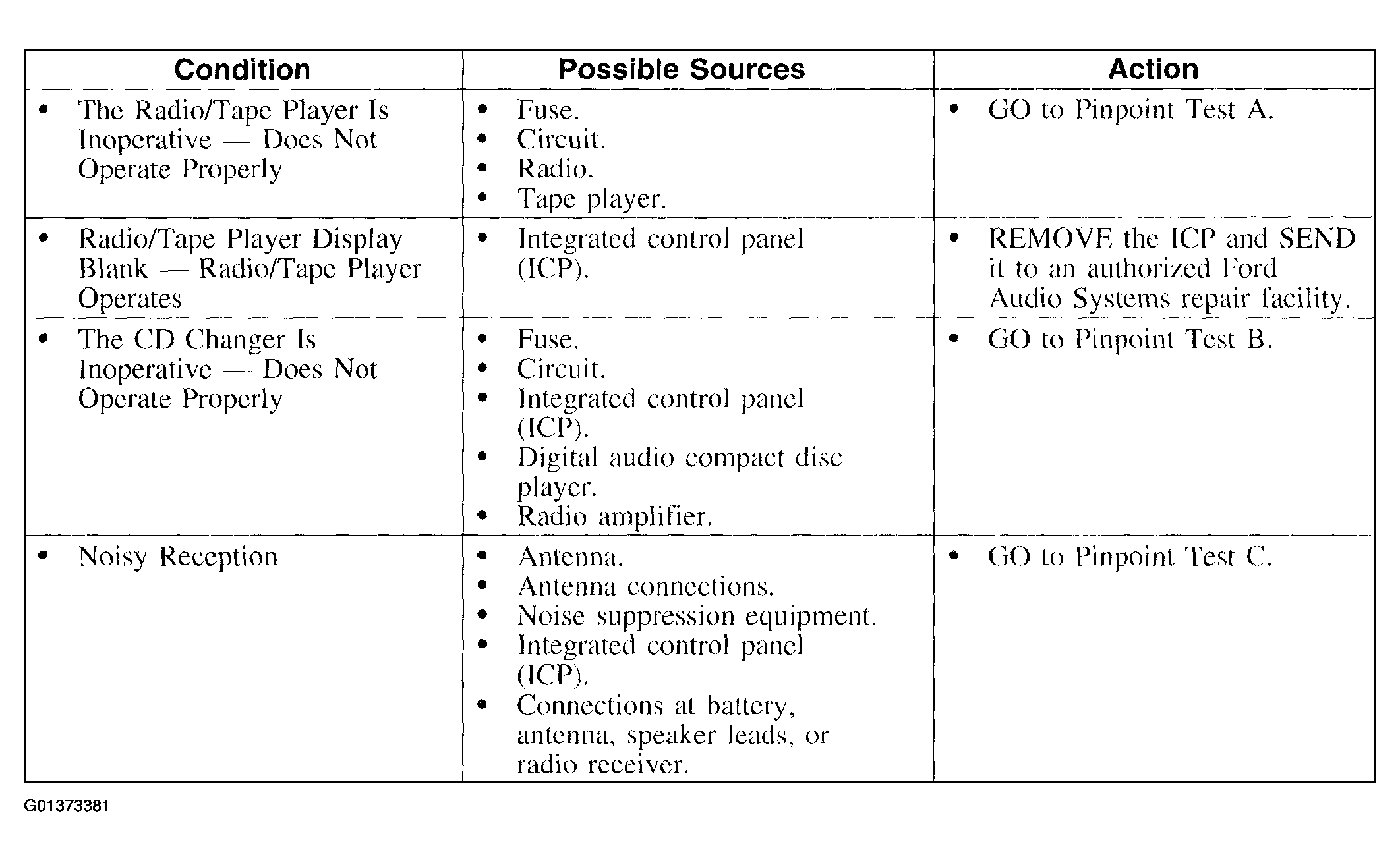

Fig 1: Trouble Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

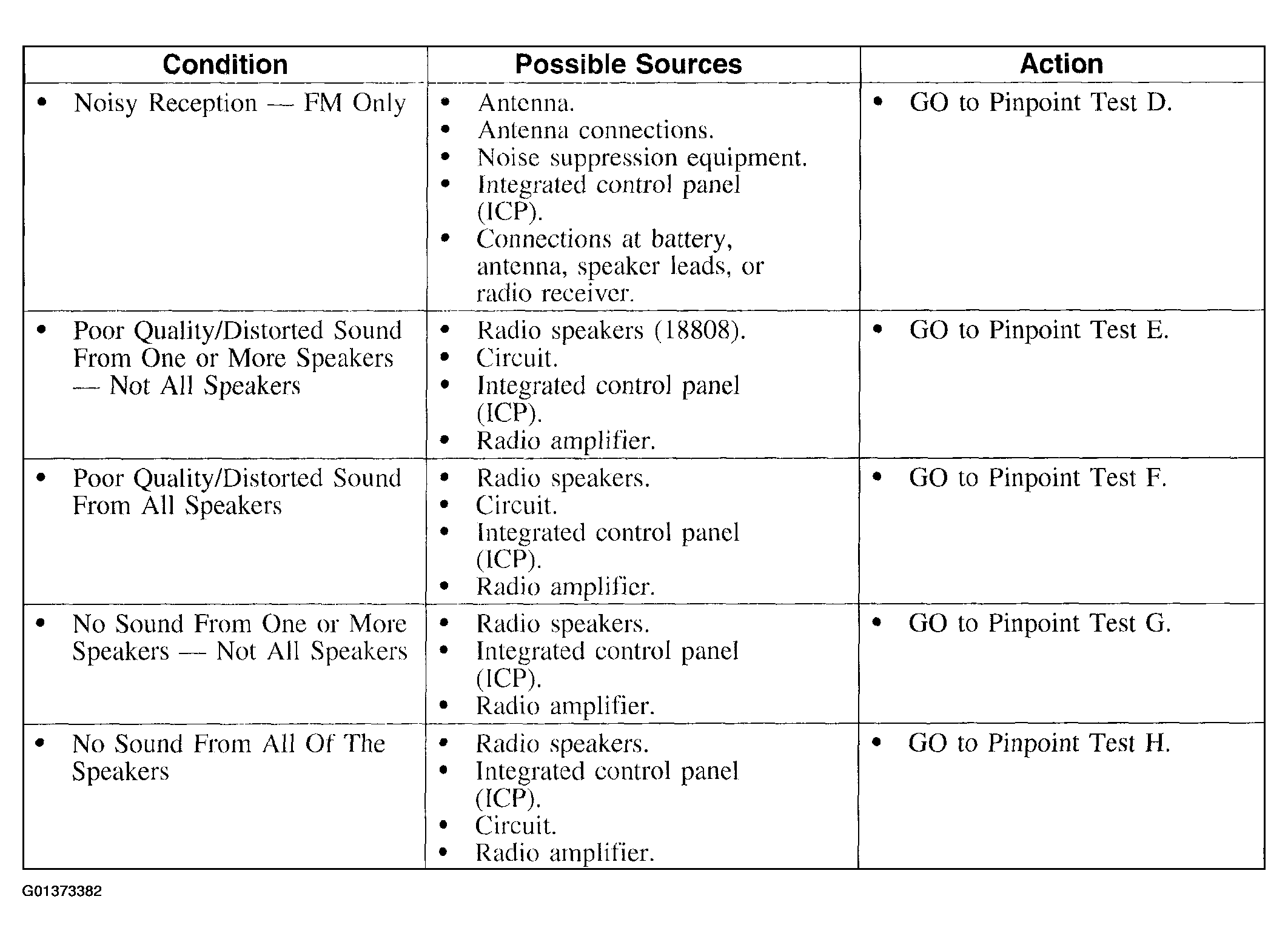

Fig 2: Trouble Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
