Pinpoint Test A: Pinpoint Test A: The Speed Control Is Inoperative

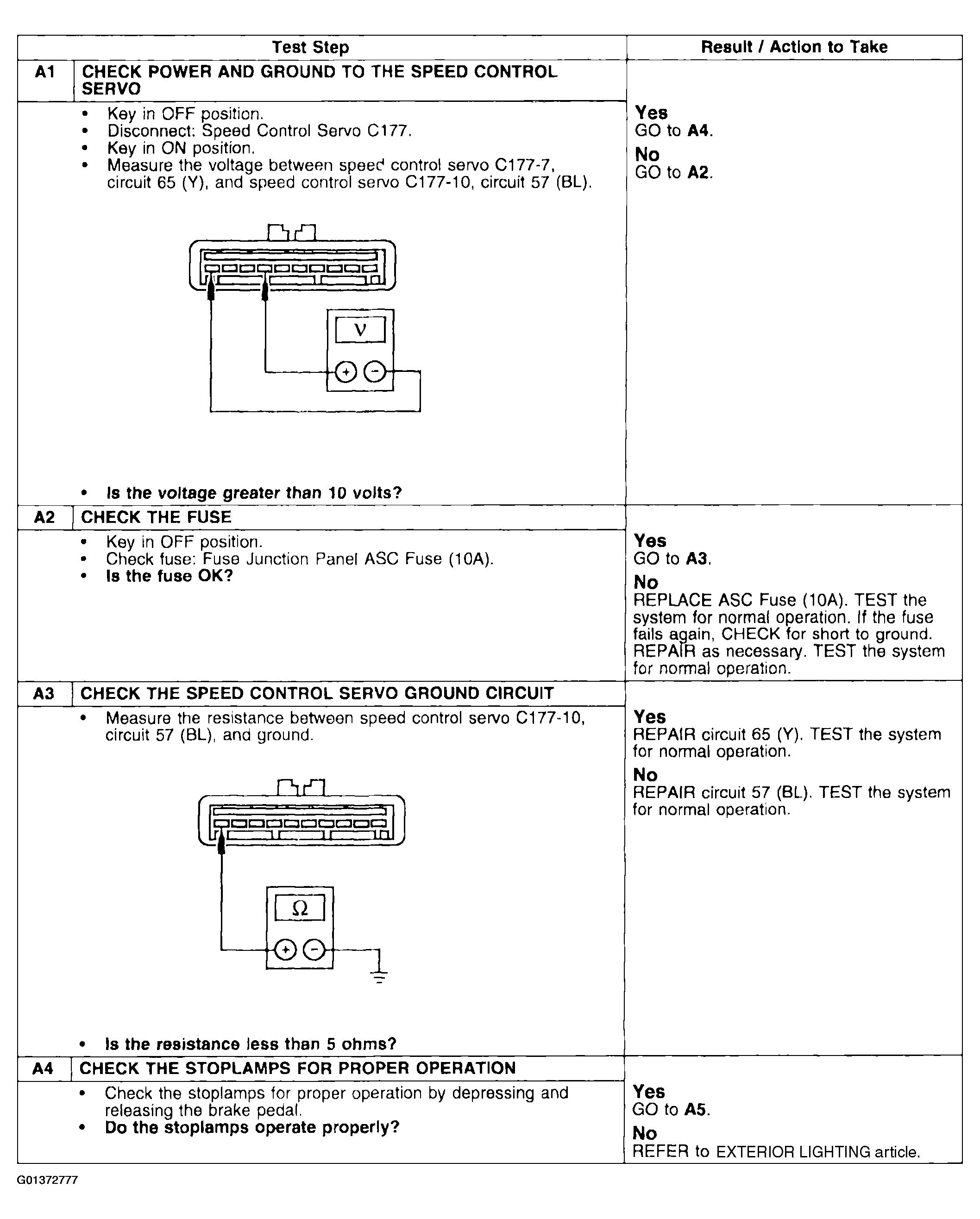

Fig 1: Pinpoint Test A: Speed Control Is Inoperative (Steps A1-A4)

Courtesy of FORD MOTOR CO.

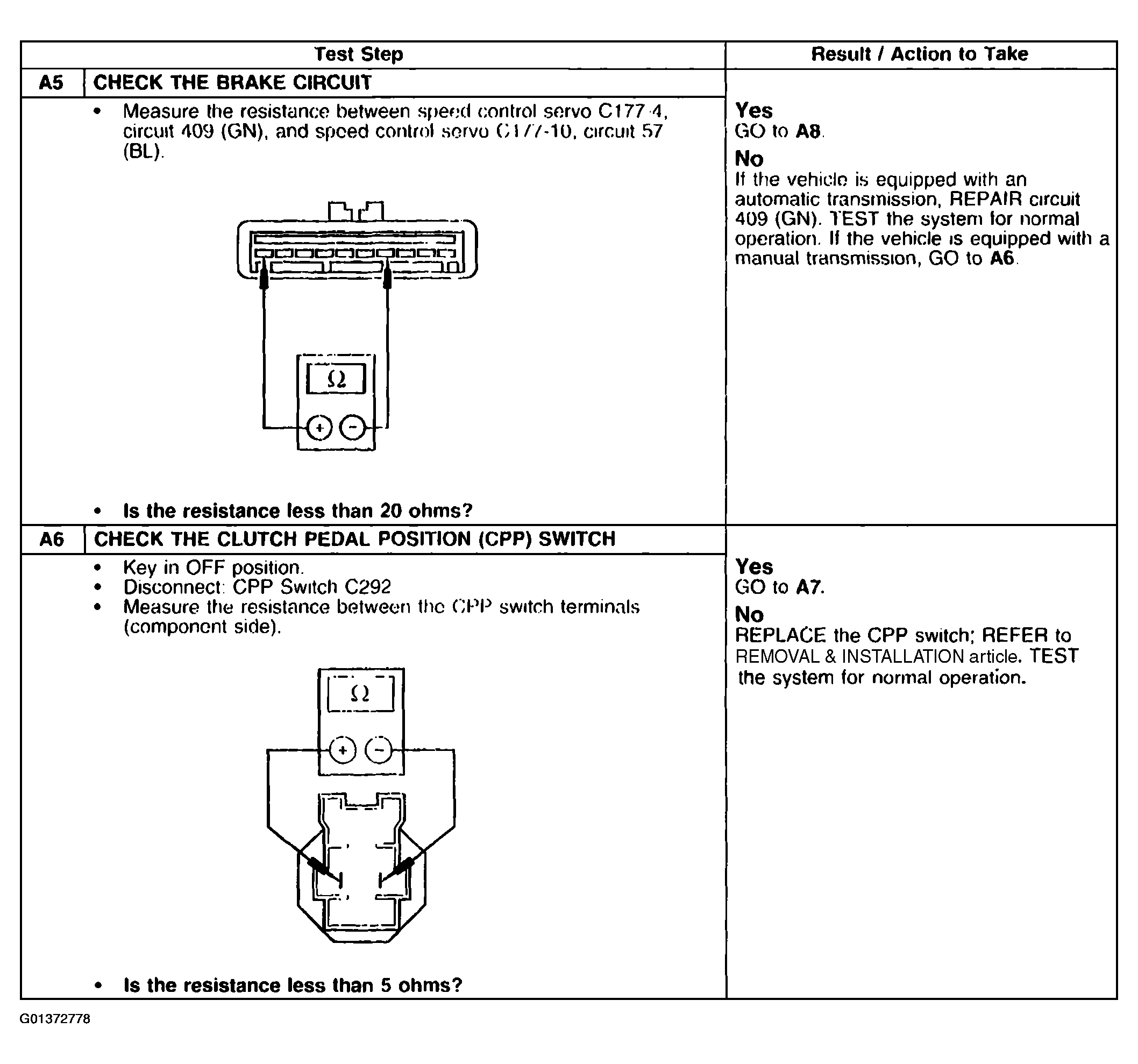

Fig 2: Pinpoint Test A: Speed Control Is Inoperative (Steps A5-A6)

Courtesy of FORD MOTOR CO.

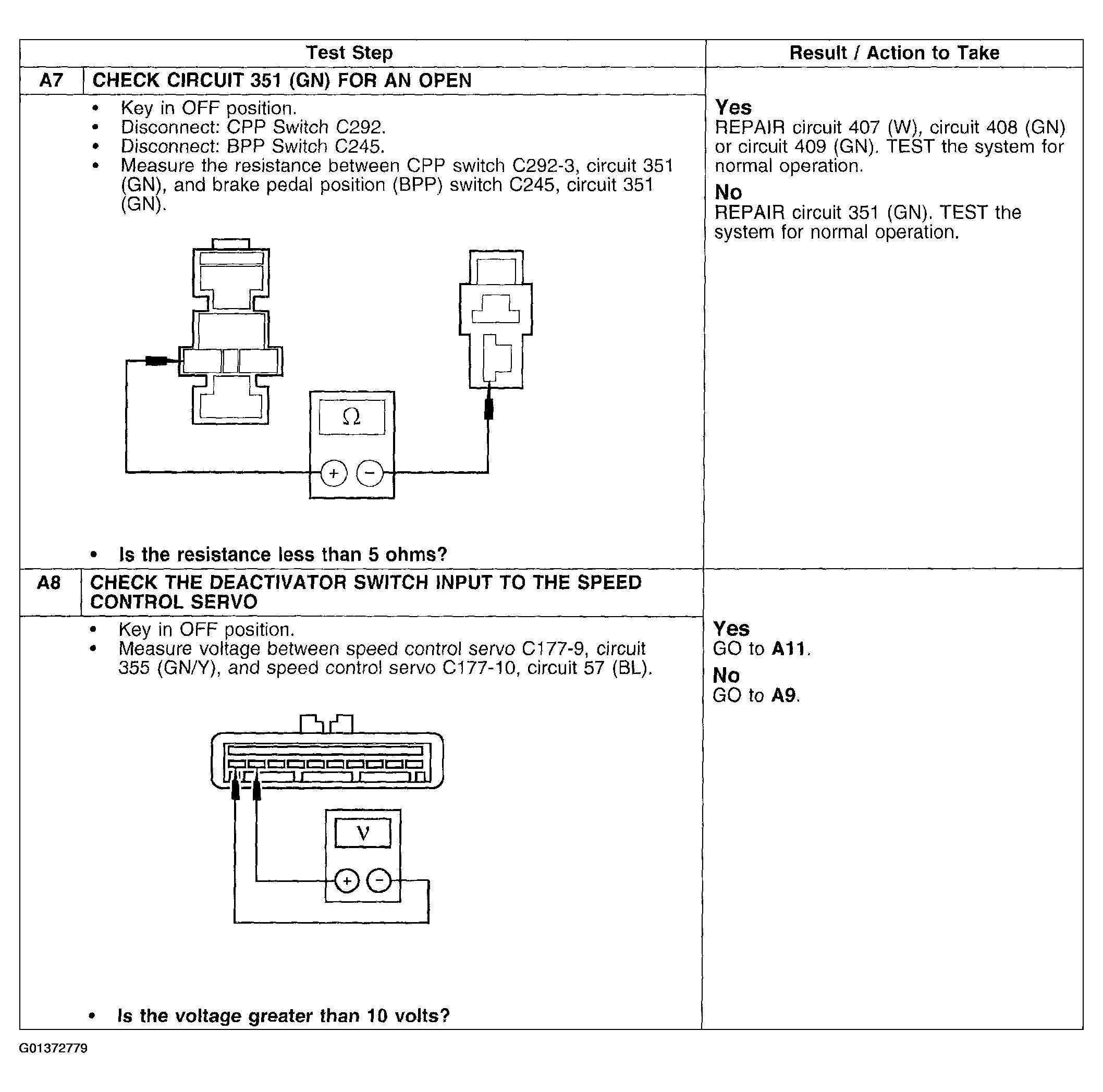

Fig 3: Pinpoint Test A: Speed Control Is Inoperative (Steps A7-A8)

Courtesy of FORD MOTOR CO.

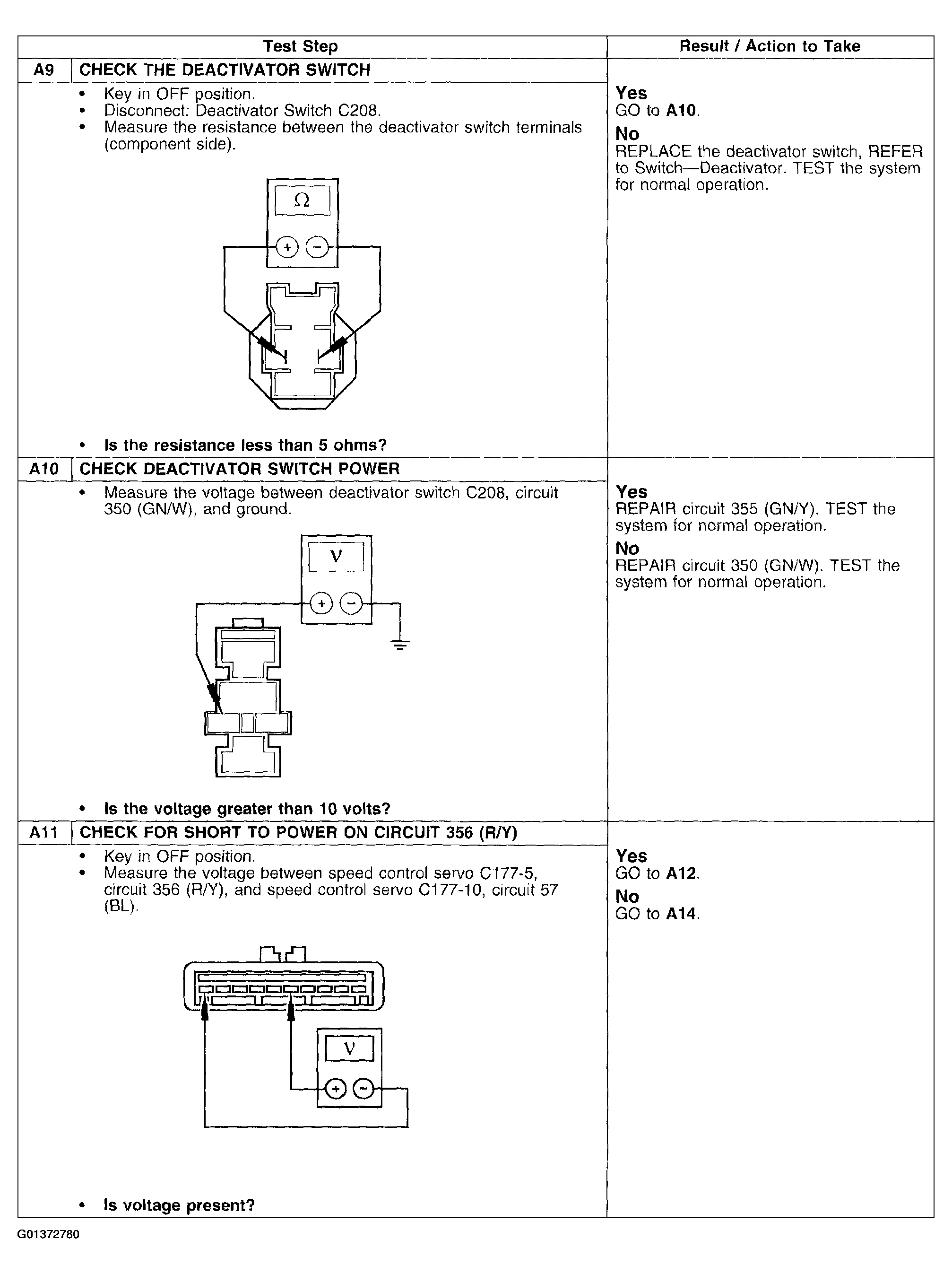

Fig 4: Pinpoint Test A: Speed Control Is Inoperative (Steps A9-A11)

Courtesy of FORD MOTOR CO.

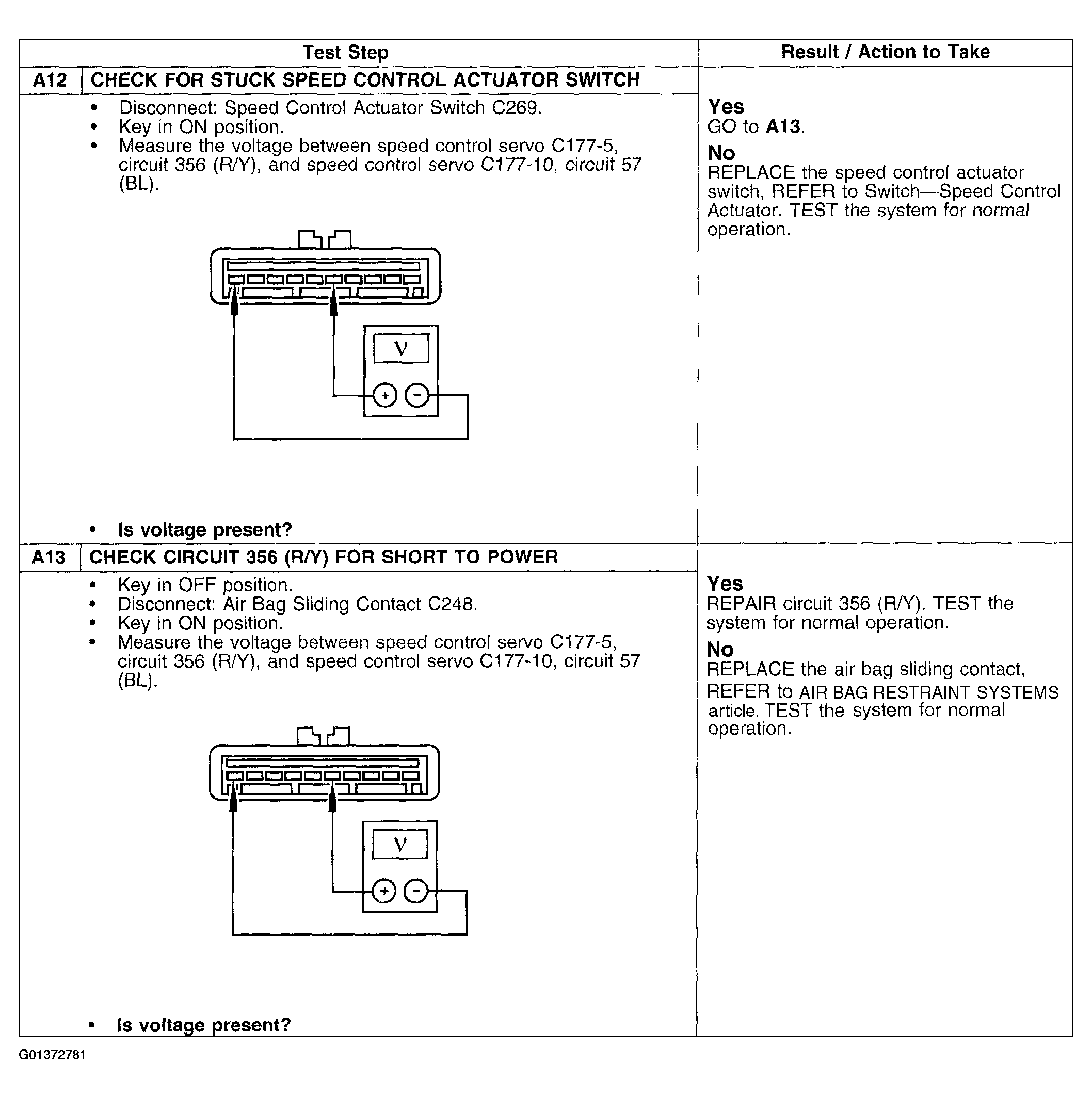

Fig 5: Pinpoint Test A: Speed Control Is Inoperative (Steps A12-A13)

Courtesy of FORD MOTOR CO.

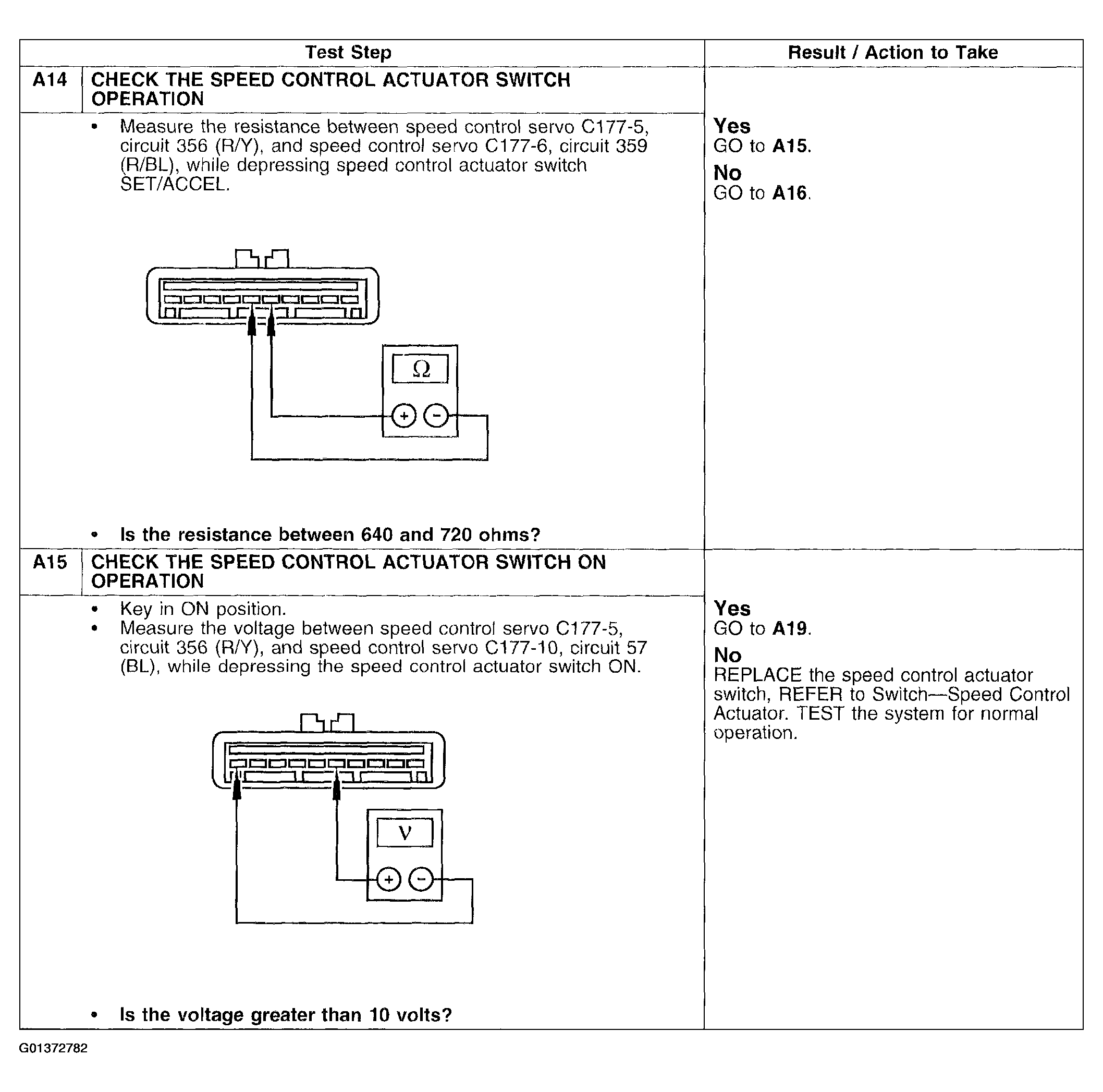

Fig 6: Pinpoint Test A: Speed Control Is Inoperative (Steps A14-A15)

Courtesy of FORD MOTOR CO.

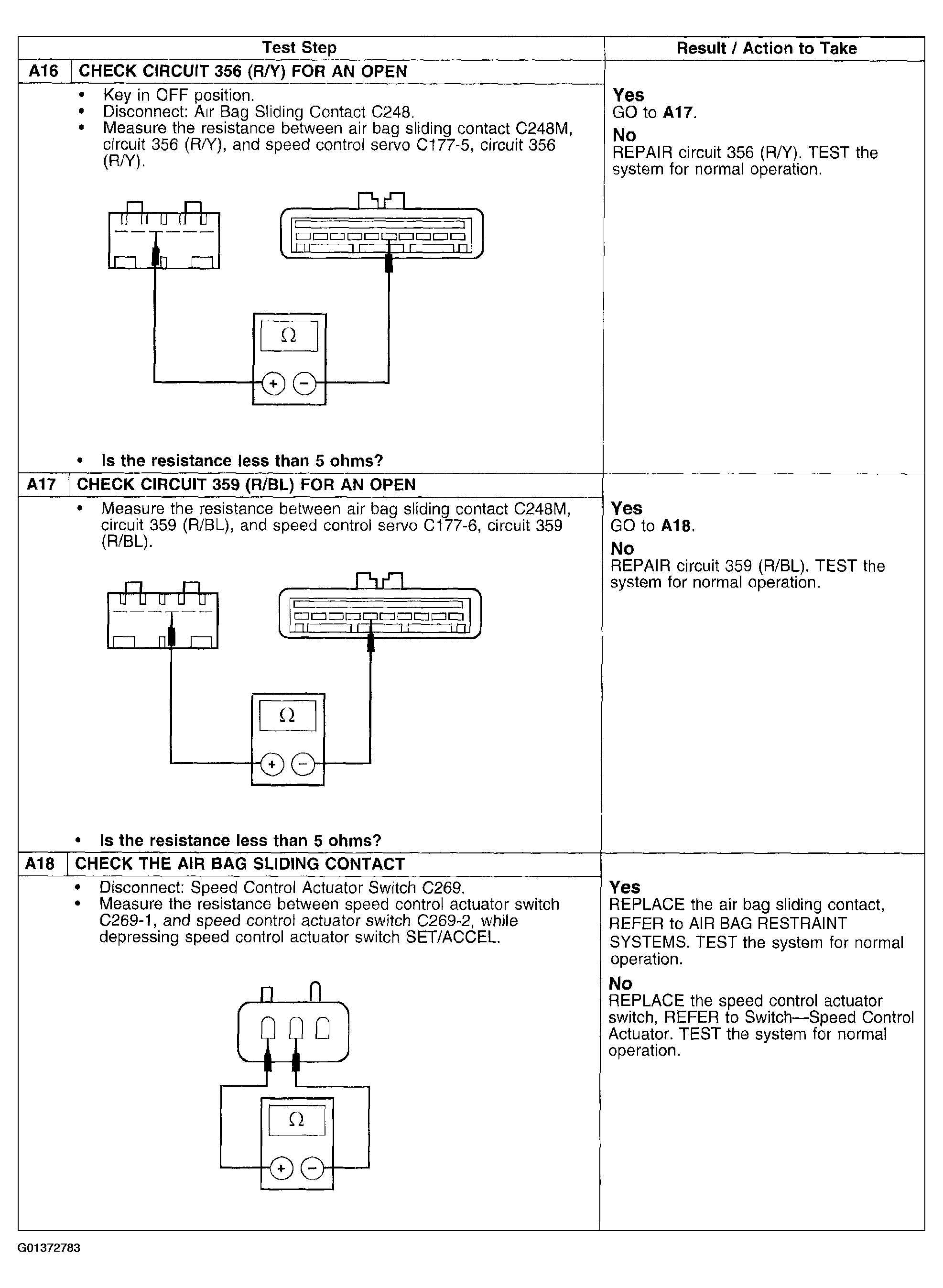

Fig 7: Pinpoint Test A: Speed Control Is Inoperative (Steps A16-A18)

Courtesy of FORD MOTOR CO.

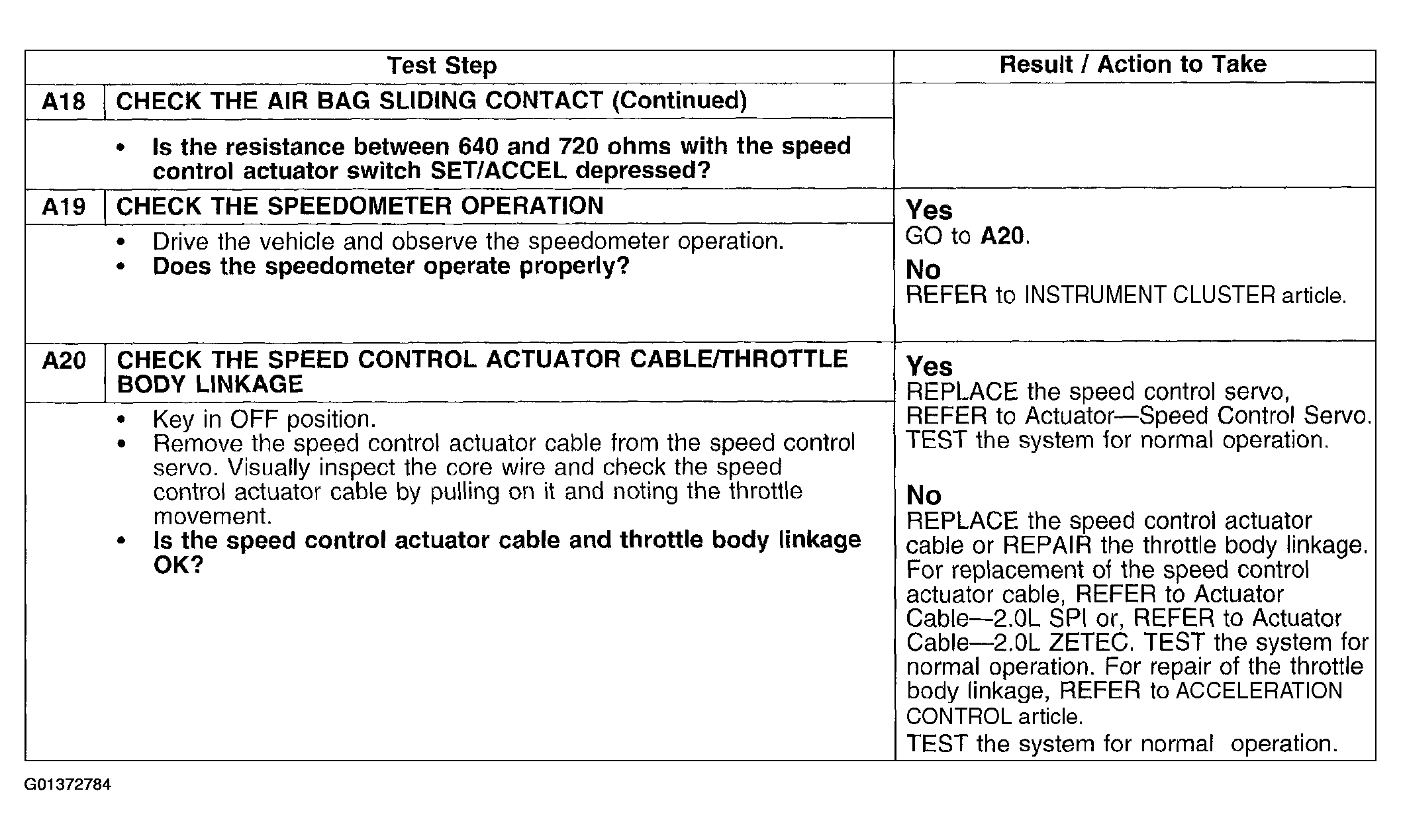

Fig 8: Pinpoint Test A: Speed Control Is Inoperative (Steps A18-A20)

Courtesy of FORD MOTOR CO.
