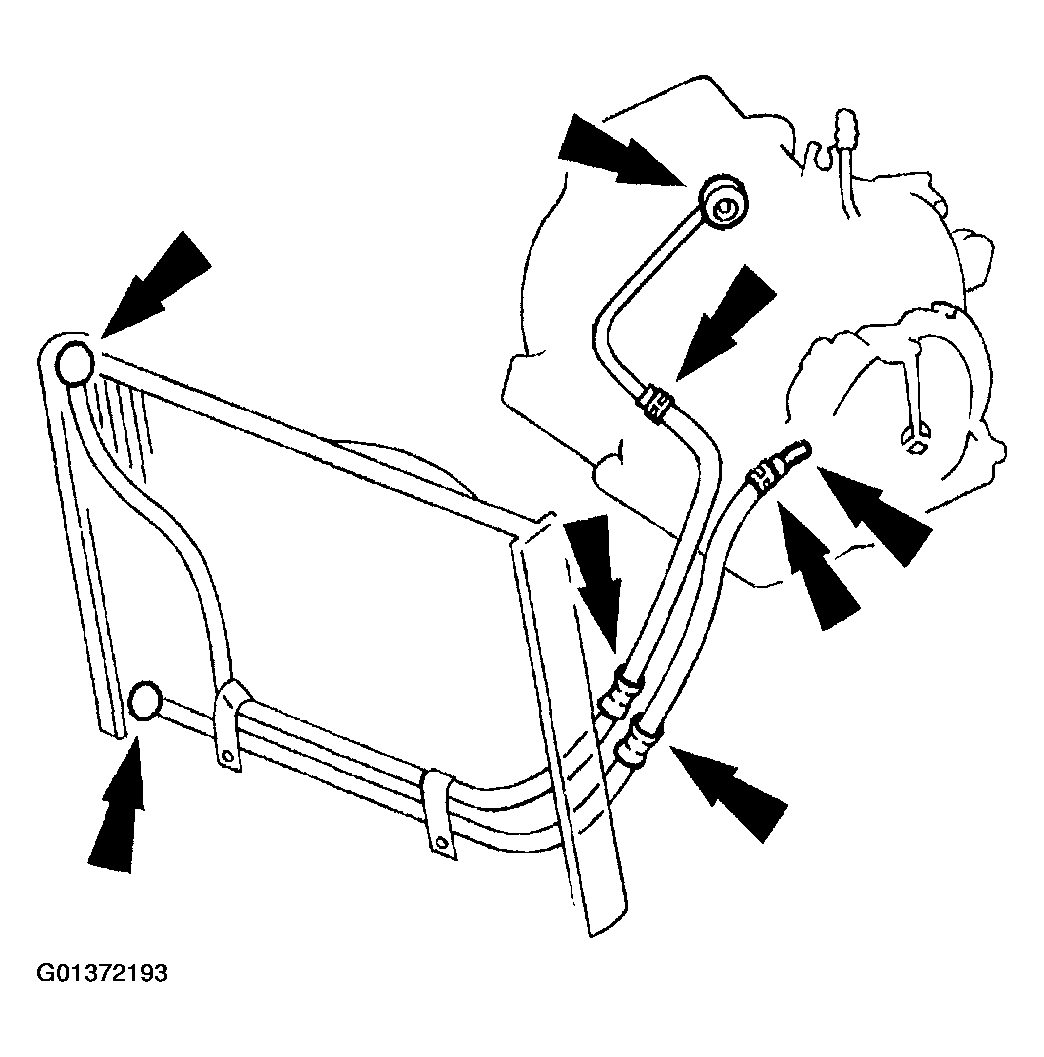

Fig 1: Identifying Transmission Cooling System Possible Leak Points
Courtesy of FORD MOTOR CO.
Inspect the transmission cooling system at the locations indicated. If transmission fluid leakage is found at any of the transmission fluid cooling components, a new component must be installed.
