Home >> Ford >> 2003 >> Windstar LX >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> Description And Operation >> Engine >> Engine-Front Components

Engine-Front Components

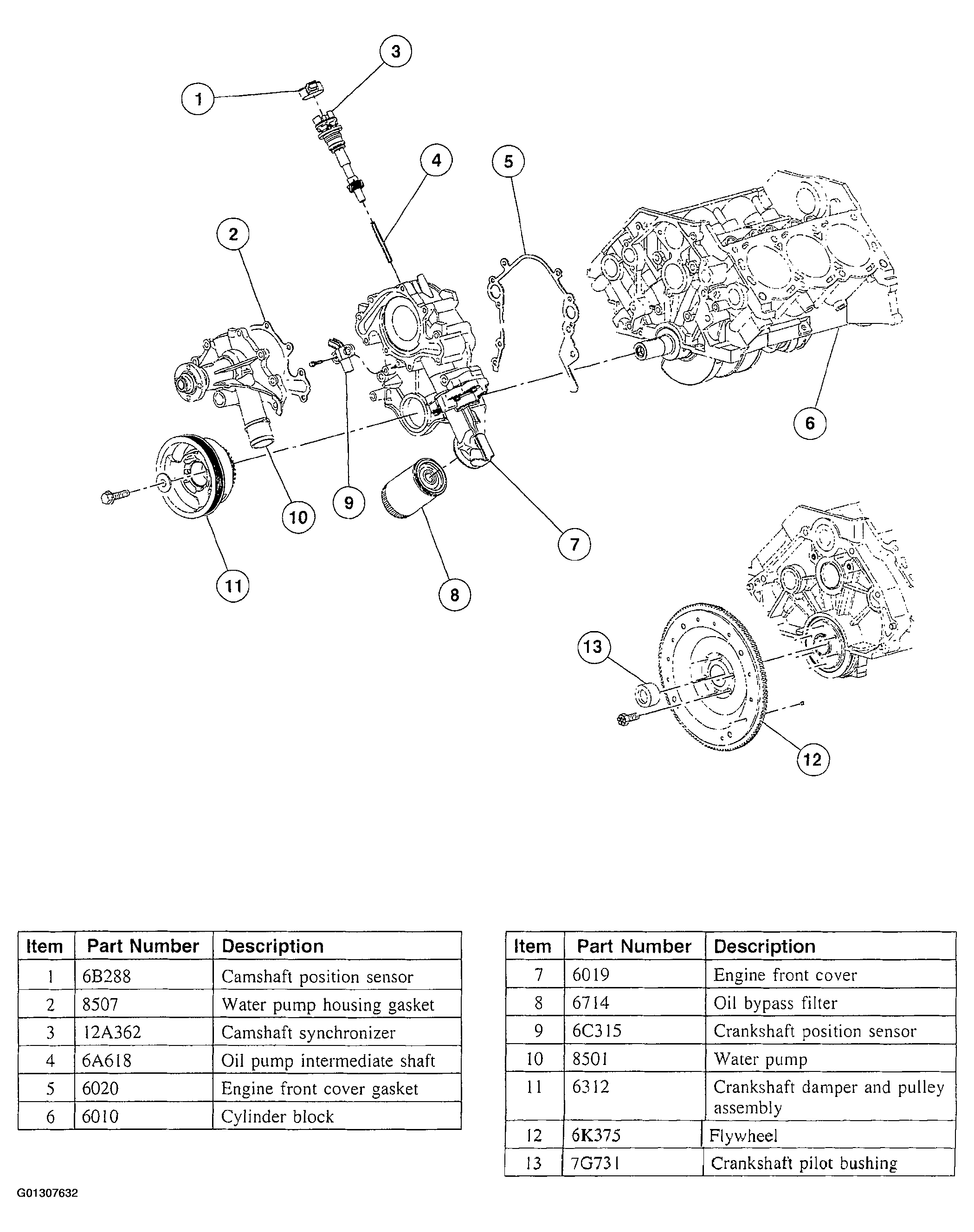

Fig 1: Exploded View Of Engine-Front Components

G01307632

Courtesy of FORD MOTOR CO.
