Band and Clutch Application Chart A

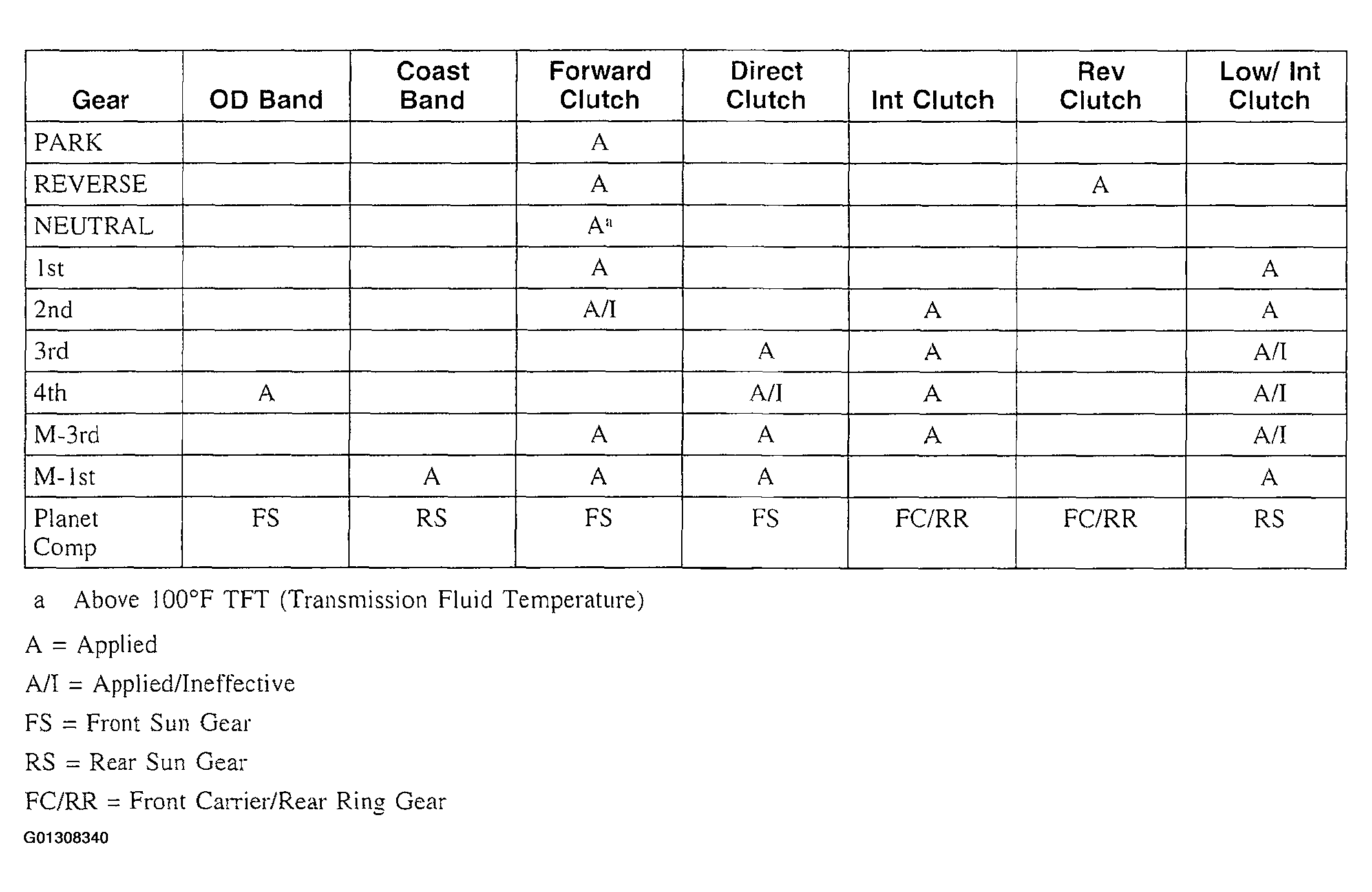

Fig 1: Band and Clutch Application Chart A

G01308340

Courtesy of FORD MOTOR CO.
