Special Tool(s)

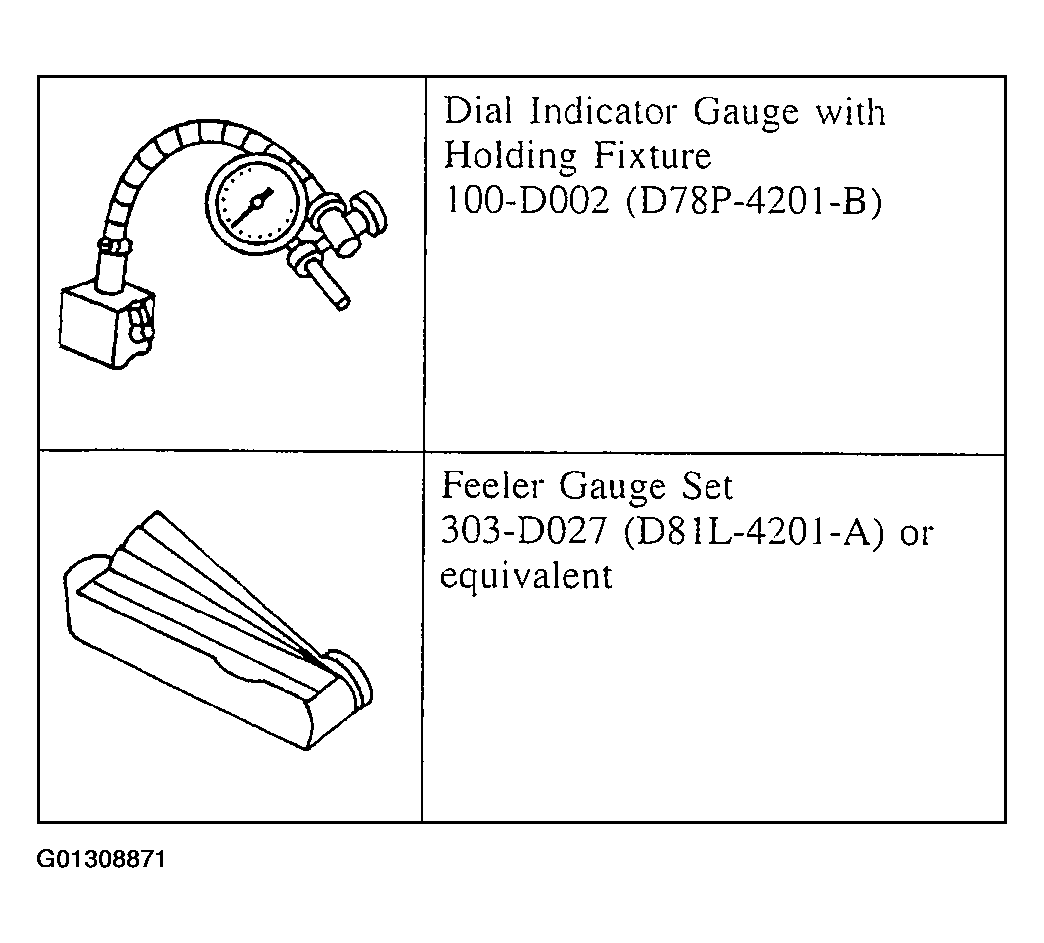

Fig 1: Identifying Special Tools (1 Of 2)
G01308871Courtesy of FORD MOTOR CO.

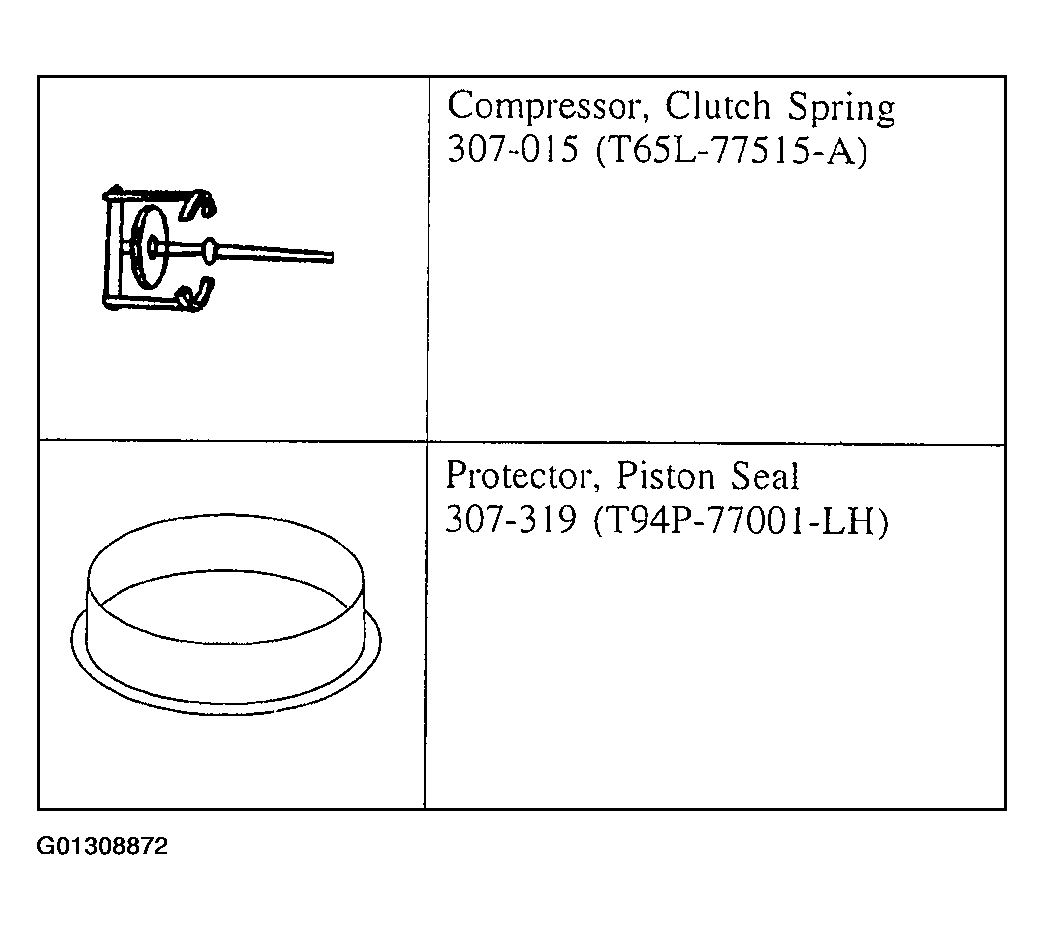

Fig 2: Identifying Special Tools (1 Of 2)
G01308872Courtesy of FORD MOTOR CO.

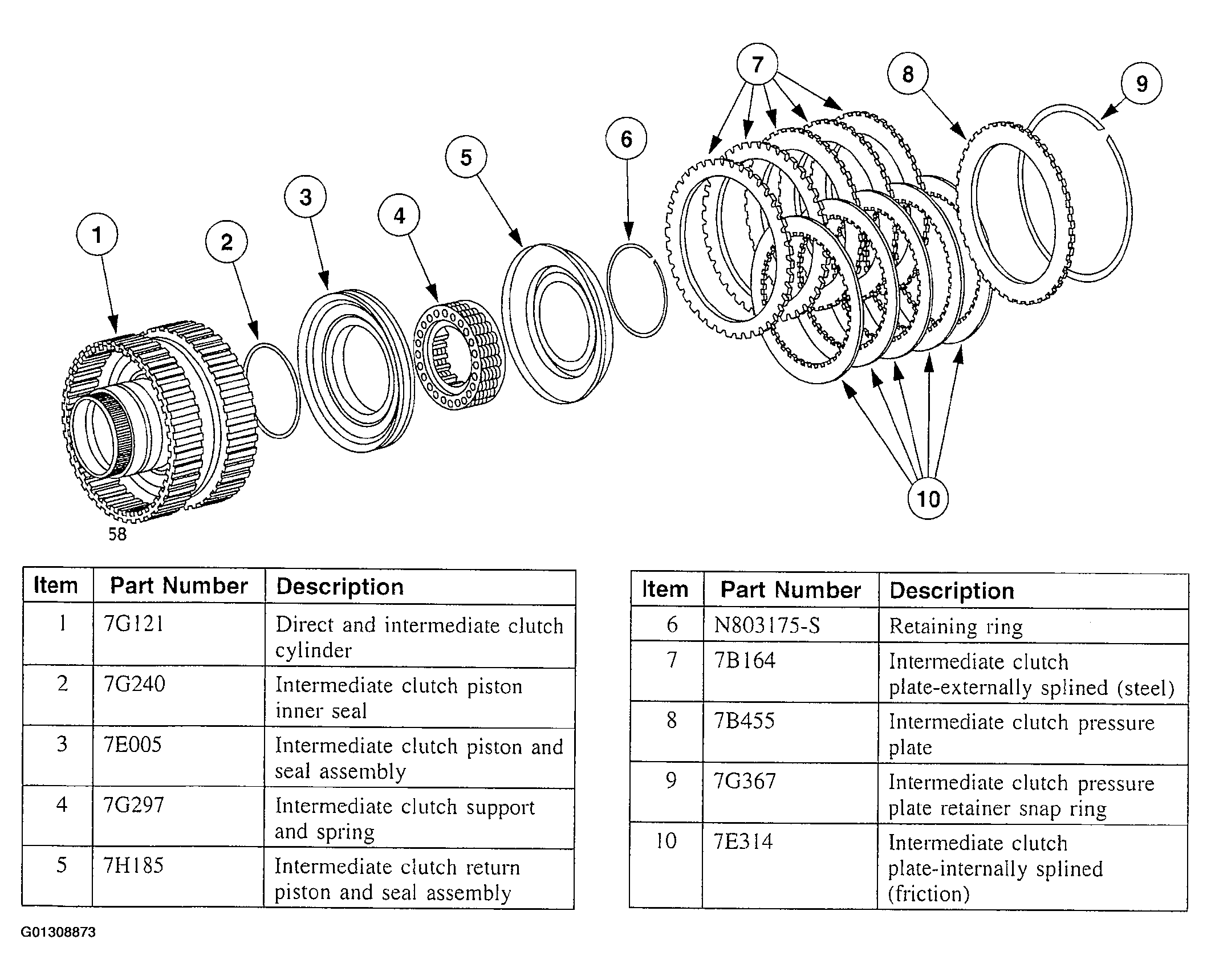

Fig 3: Exploded View Of Intermediate Clutch Cylinder
G01308873Courtesy of FORD MOTOR CO.
