Windstar Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Diagnosis And Testing
>>
Transaxle Connector Layouts
>>
Digital Transmission Range (TR) Sensor Connector
Digital Transmission Range (TR) Sensor Connector

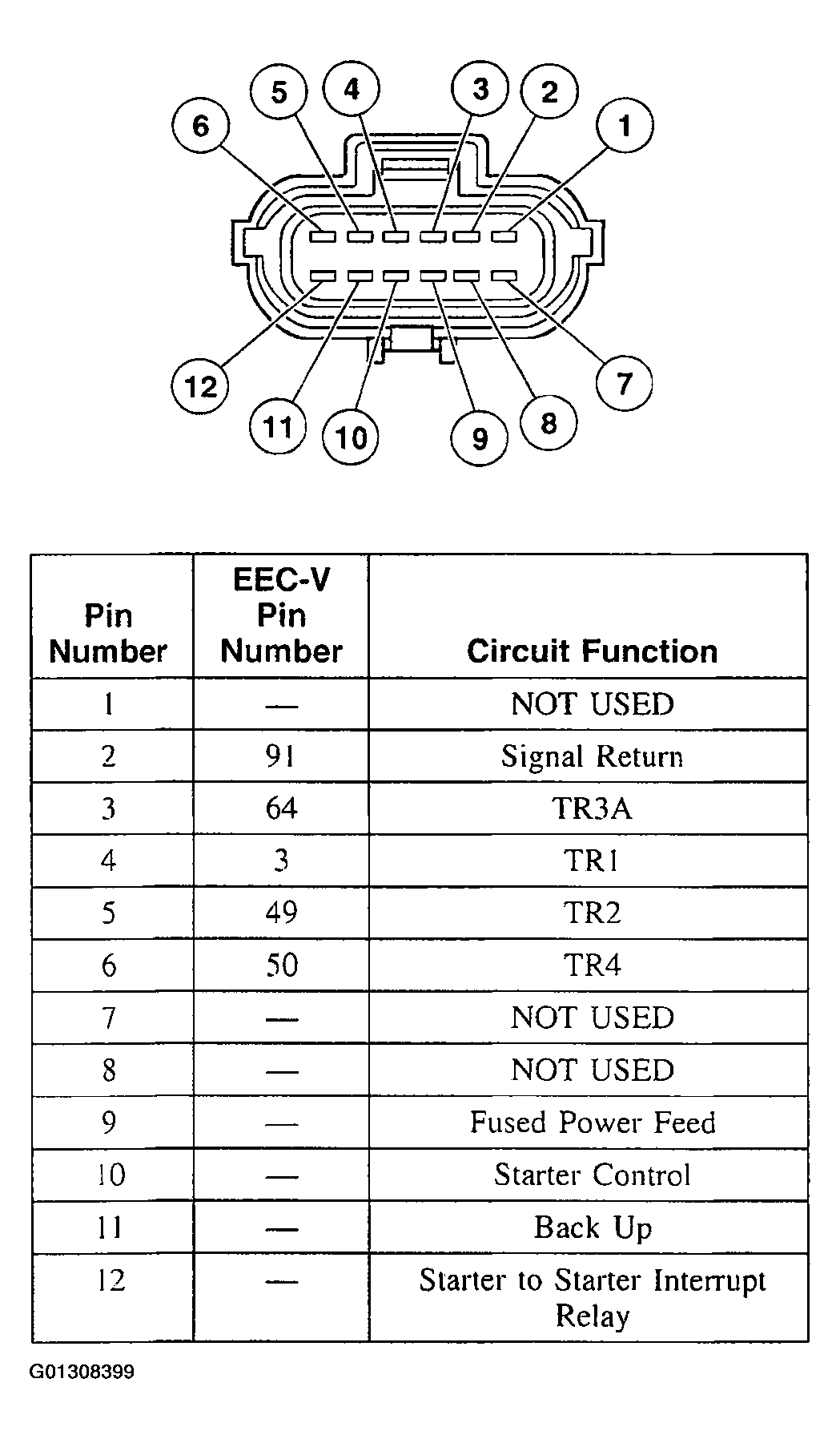

Fig 1: Identifying Digital Transmission Range Sensor Connector Terminals
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
