Shift Solenoid Failure Mode Chart "Always On": Notes

Failed ON due to powertrain control module and/or vehicle wiring concerns; solenoid electrically or mechanically stuck on.

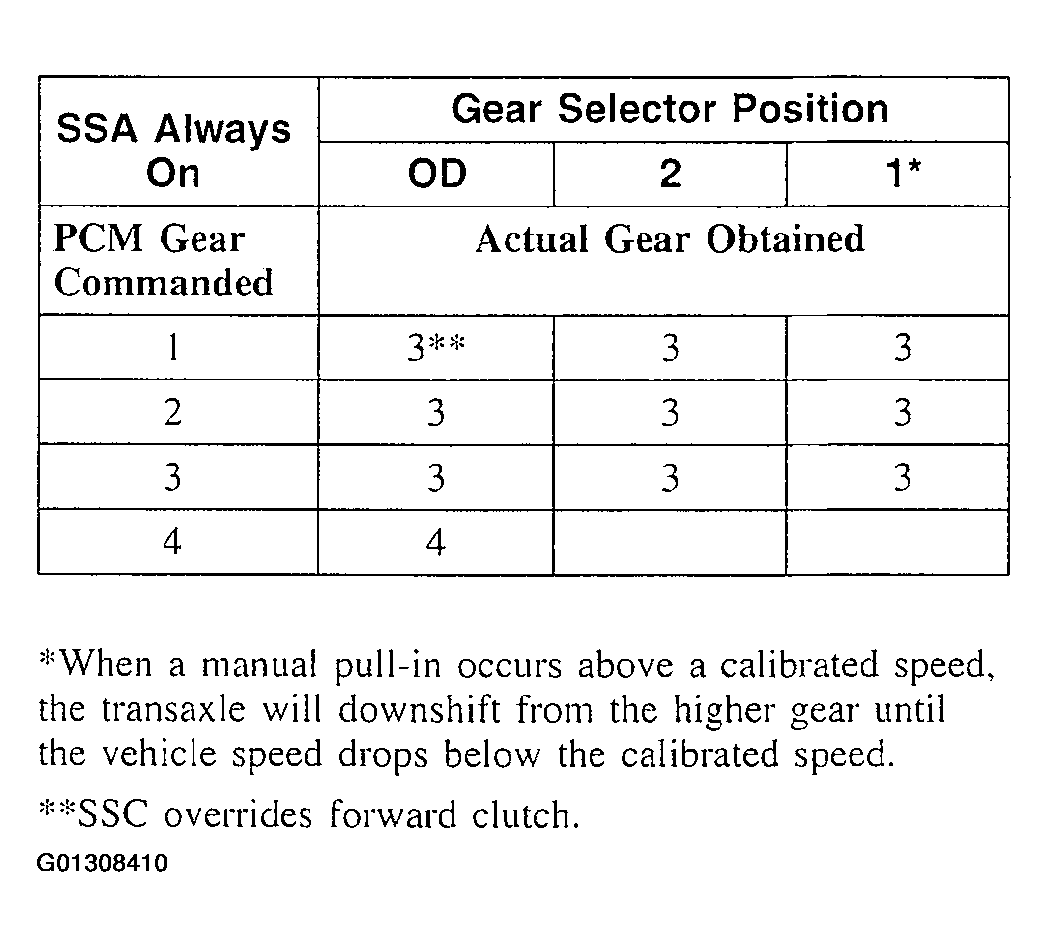

Fig 1: Shift Solenoid Failure Mode Chart "Always On" (1 Of 3)
G01308410Courtesy of FORD MOTOR CO.

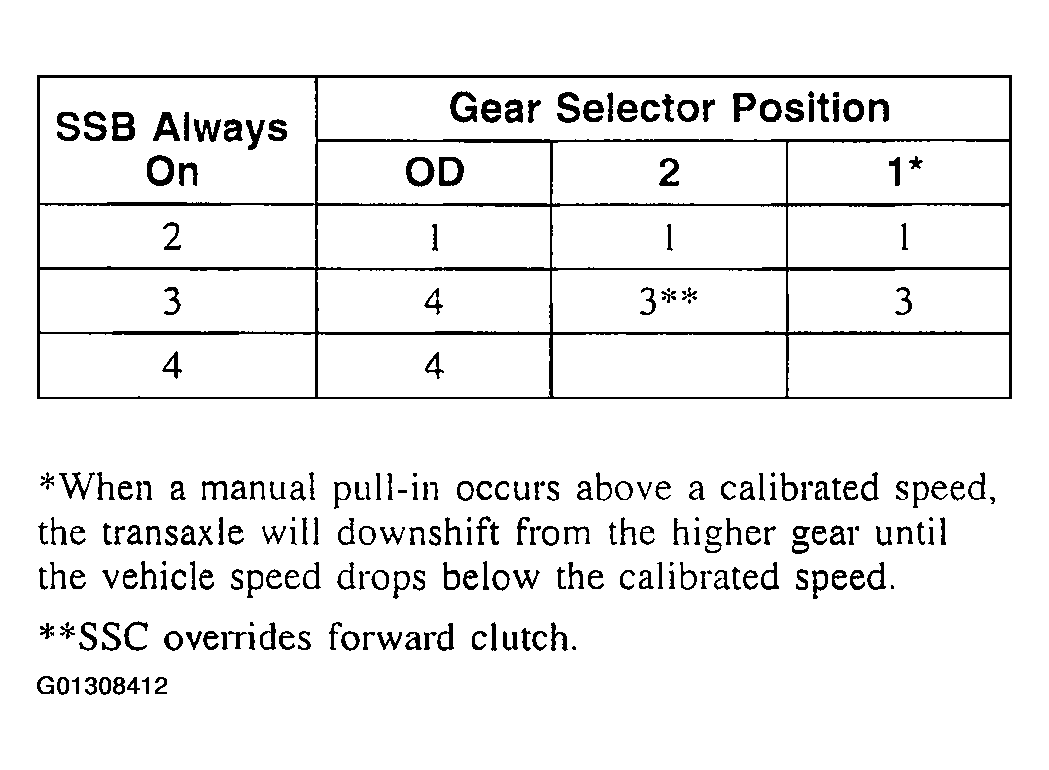

Fig 2: Shift Solenoid Failure Mode Chart "Always On" (2 Of 3)
G01308412Courtesy of FORD MOTOR CO.

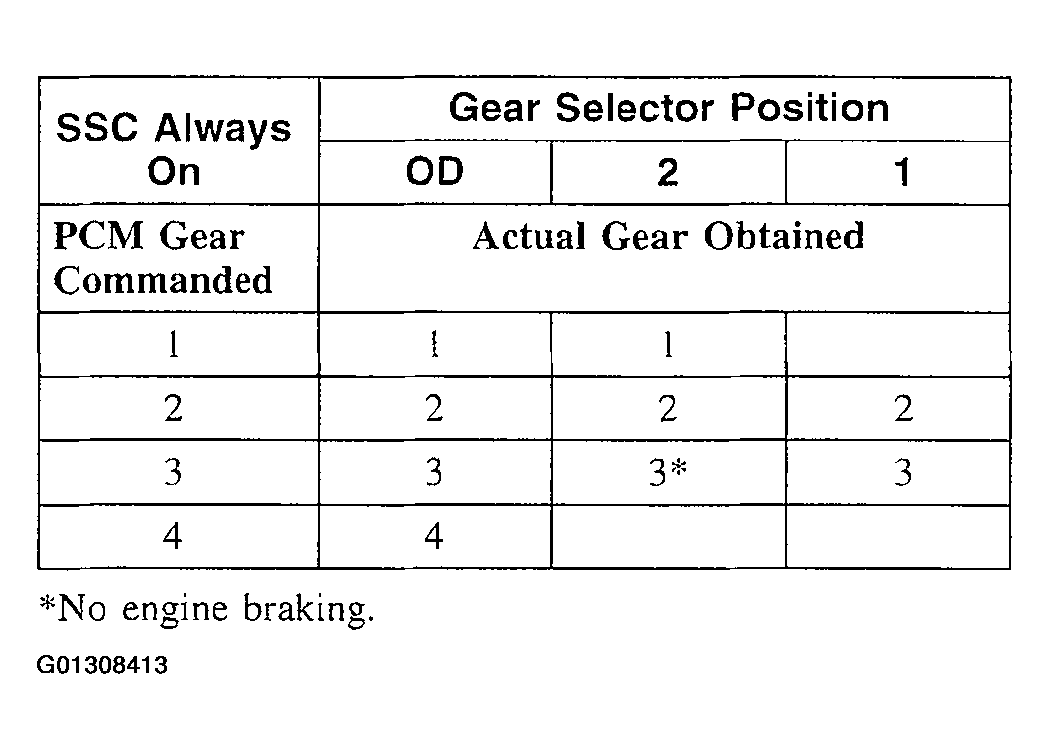

Fig 3: Shift Solenoid Failure Mode Chart "Always On" (3 Of 3)
G01308413Courtesy of FORD MOTOR CO.
