Driver Power Seat Control Switch C360

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Driver Power Seat Control Switch C360 Connector
G02239222Courtesy of FORD MOTOR CO.

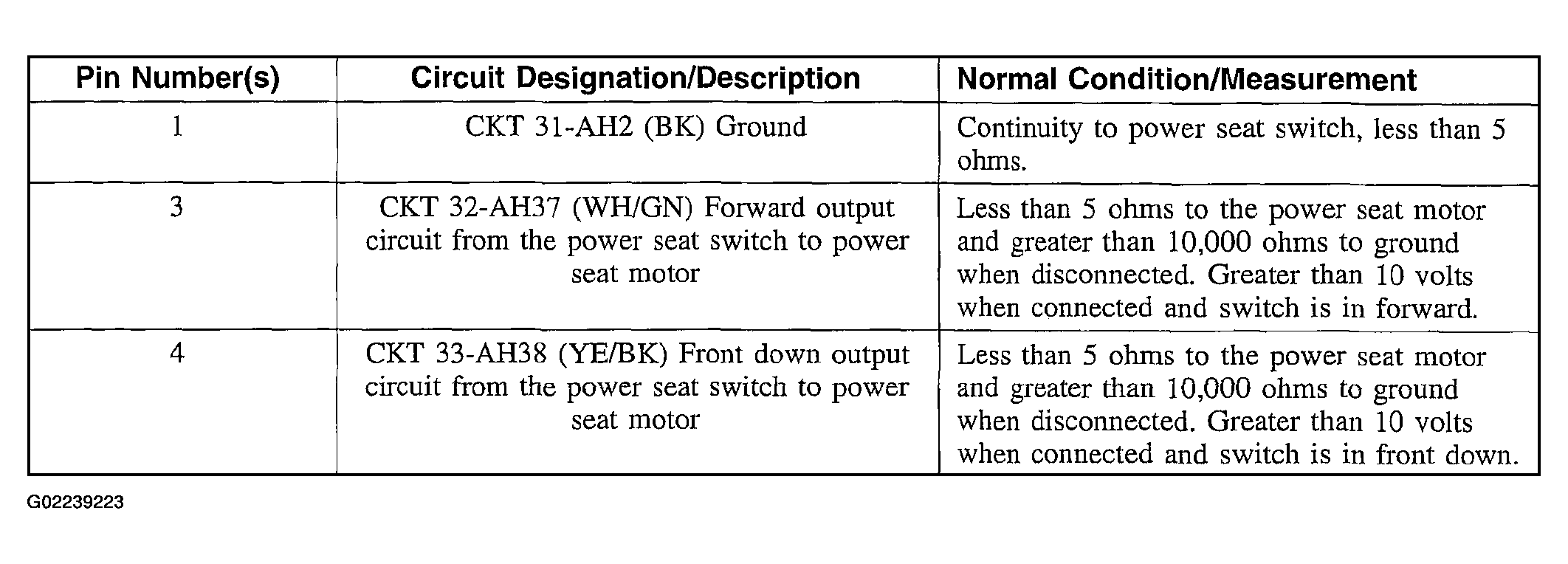

Fig 2: Measurement Specifications (1 Of 2)
G02239223Courtesy of FORD MOTOR CO.

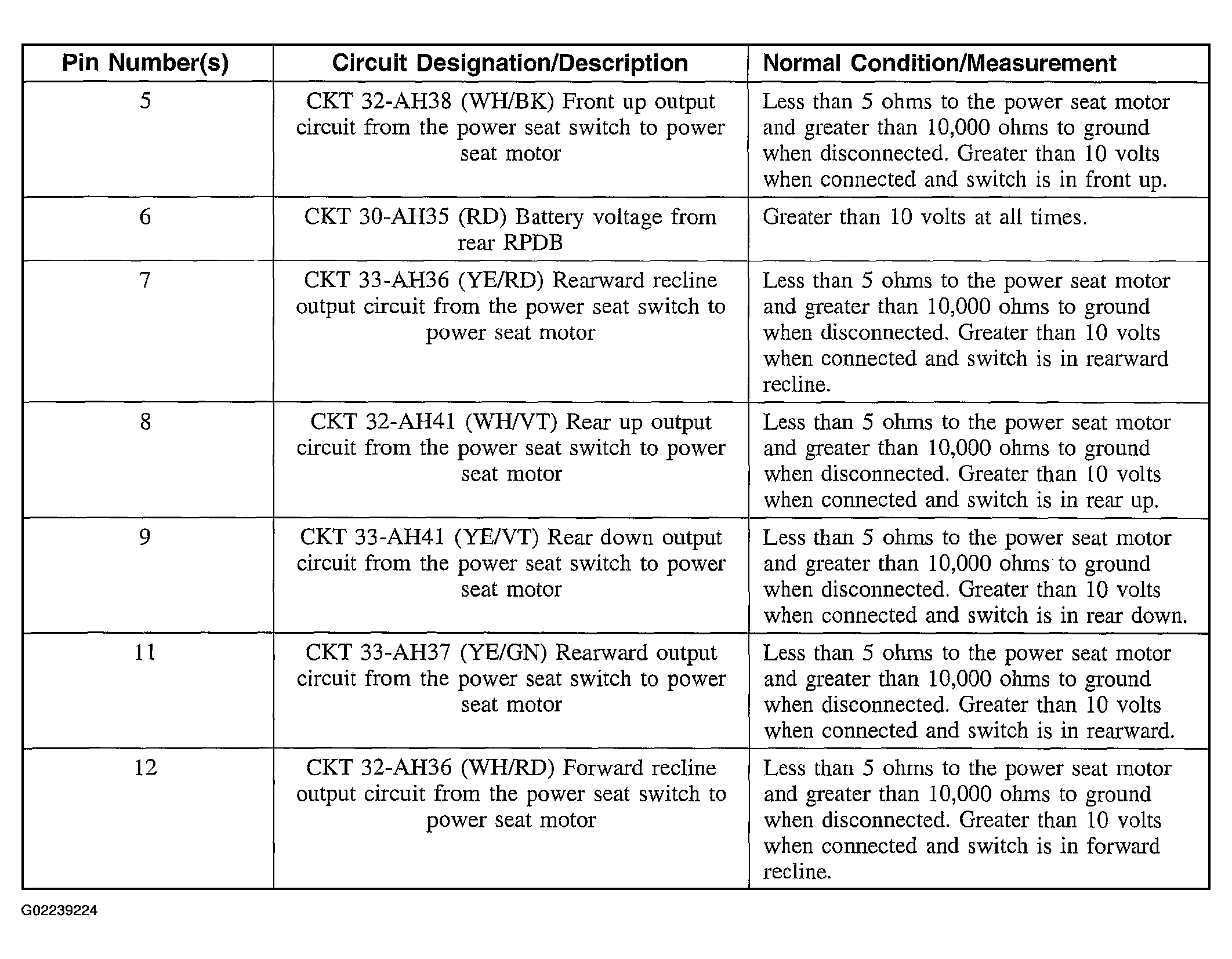

Fig 3: Measurement Specifications (2 Of 2)
G02239224Courtesy of FORD MOTOR CO.
