DM100i Audio Unit C290c

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying DM100i Audio Unit C290c Connector Pinouts
G02238679Courtesy of FORD MOTOR CO.

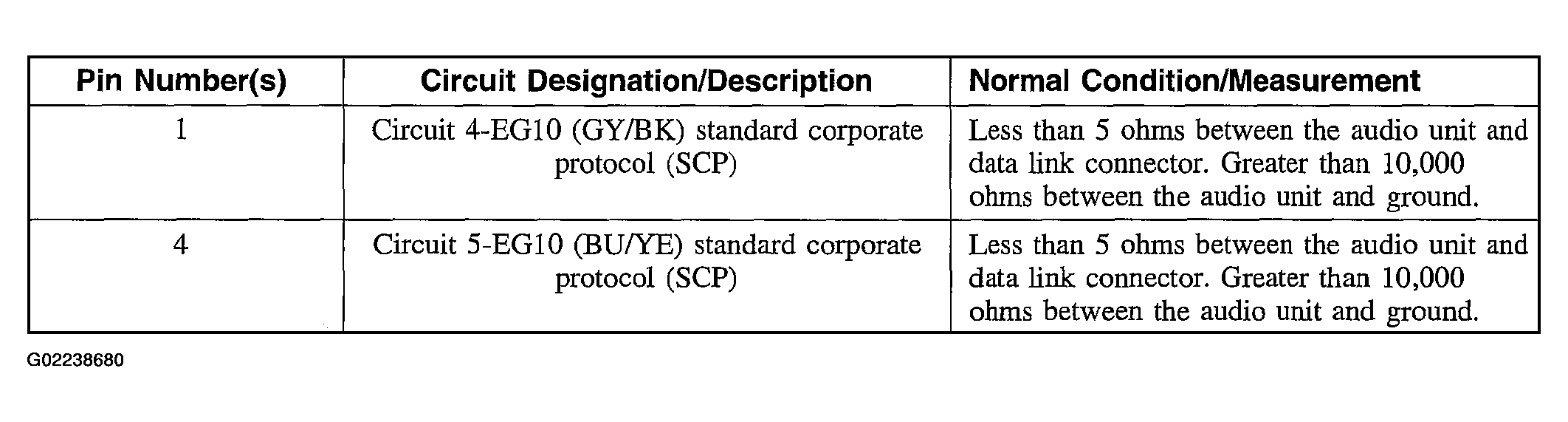

Fig 2: DM100i Audio Unit C290c Connector Pins Reference Chart
G02238680Courtesy of FORD MOTOR CO.
