CDX6 Audio Unit C240b

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying CDX6 Audio Unit C240b Connector Pinouts

Courtesy of FORD MOTOR CO.

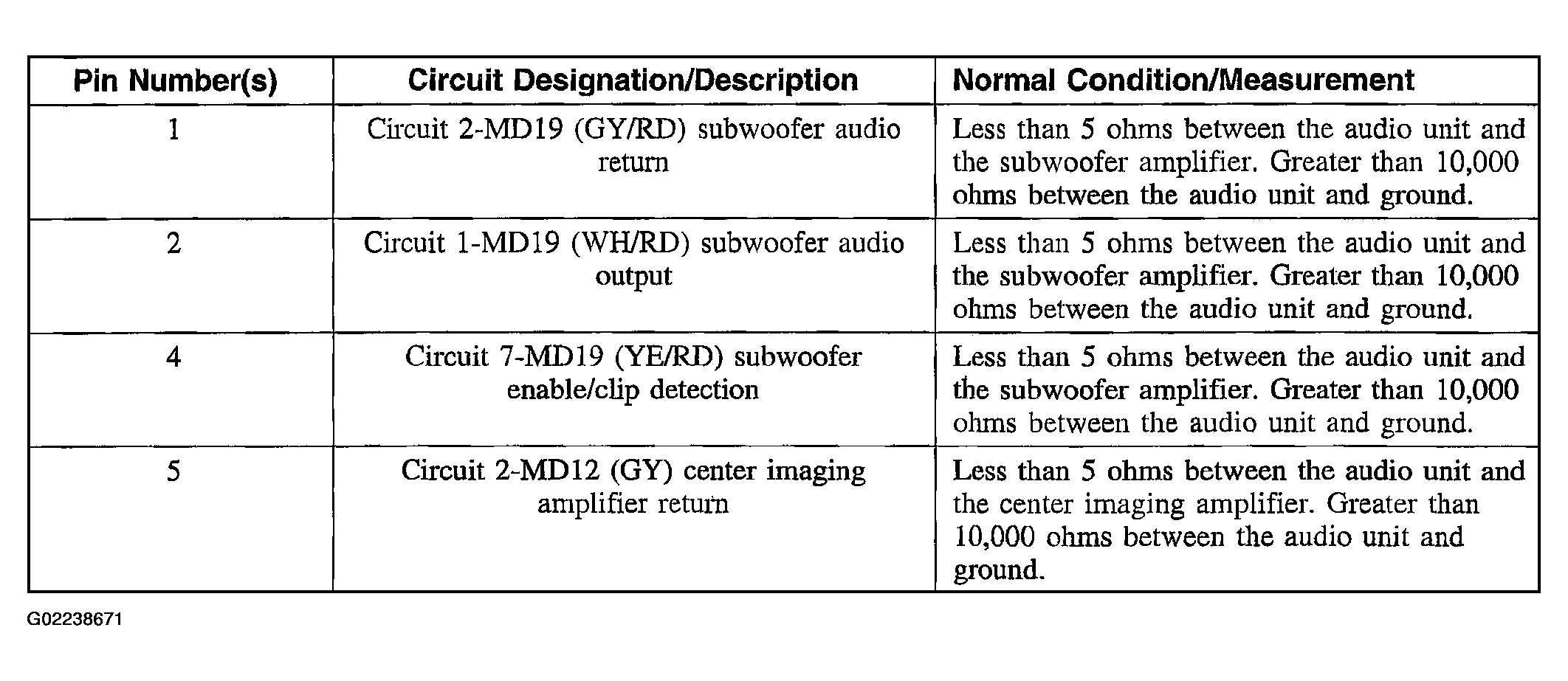

Fig 2: CDX6 Audio Unit C240b Connector Pins Reference Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

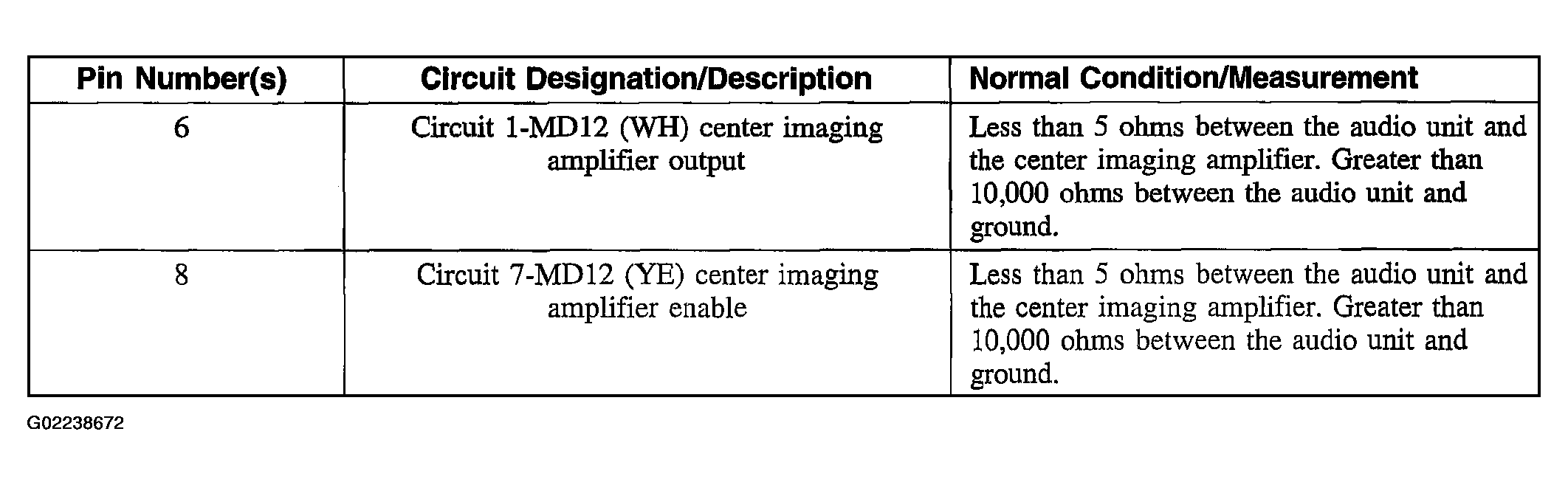

Fig 3: CDX6 Audio Unit C240b Connector Pins Reference Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
