Compressor Manifold and Tube Assembly - 3.9L: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Material Specification Chart

Courtesy of FORD MOTOR CO.

NOTE: Installation of a new receiver drier is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver drier.

NOTE: New O-ring seals, lubricated in clean PAG oil, must be installed before reconnecting any A/C fitting that has been disconnected.

Recover the refrigerant. For additional information, Refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
Position the vehicle on a hoist with the gear selector in NEUTRAL .
Remove the center deflector shield.
Remove the components in the order indicated in Fig 2.
To install, reverse the removal procedure.

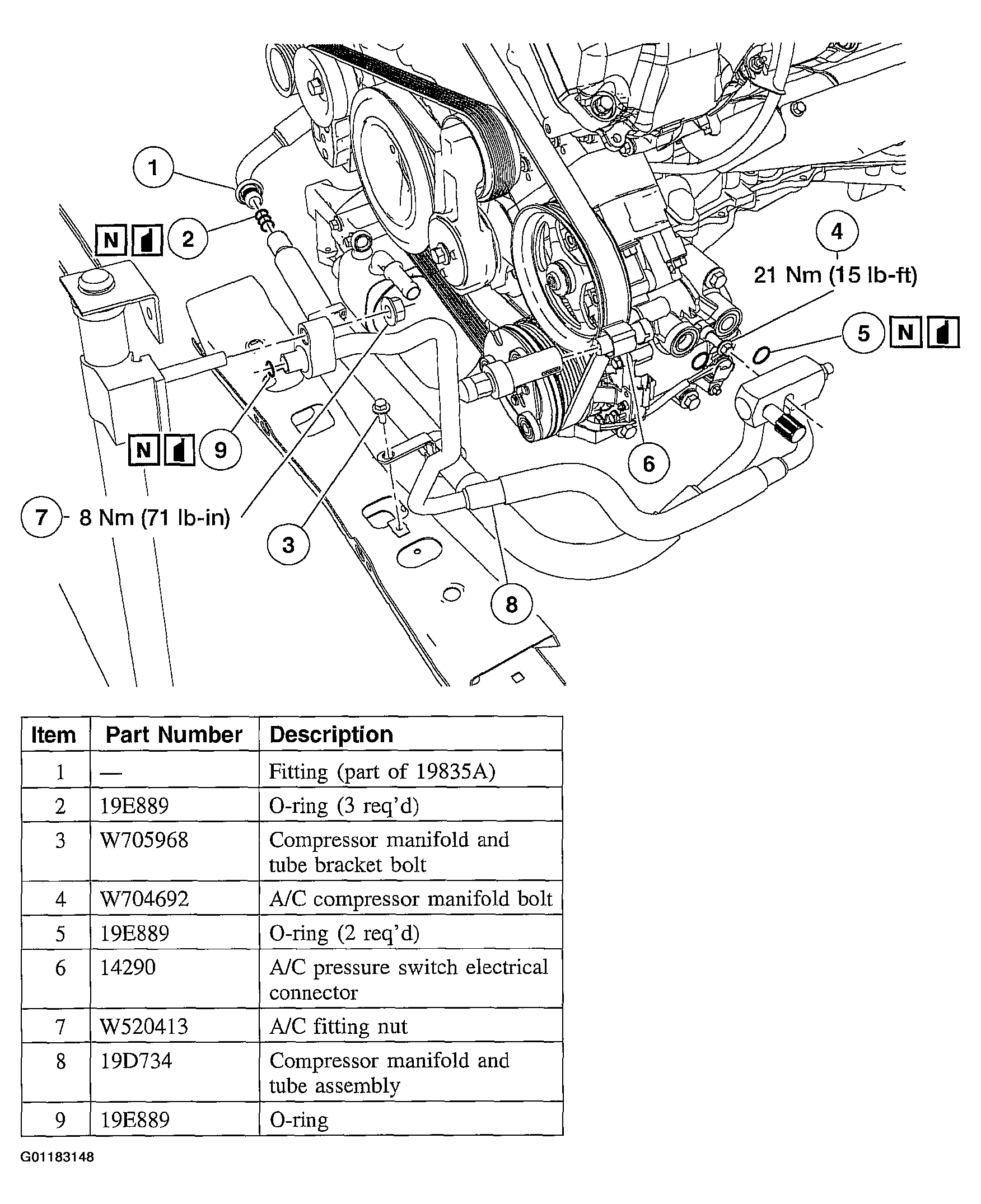

Fig 2: Removing Sequence Of Compressor Manifold and Tube Assembly - 3.9L Components
Courtesy of FORD MOTOR CO.
Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, Refer to REFRIGERANT OIL ADDING .
Evacuation, leak test and charge the refrigerant system. For additional information, Refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
