Removal & Installation
CAUTION:
It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

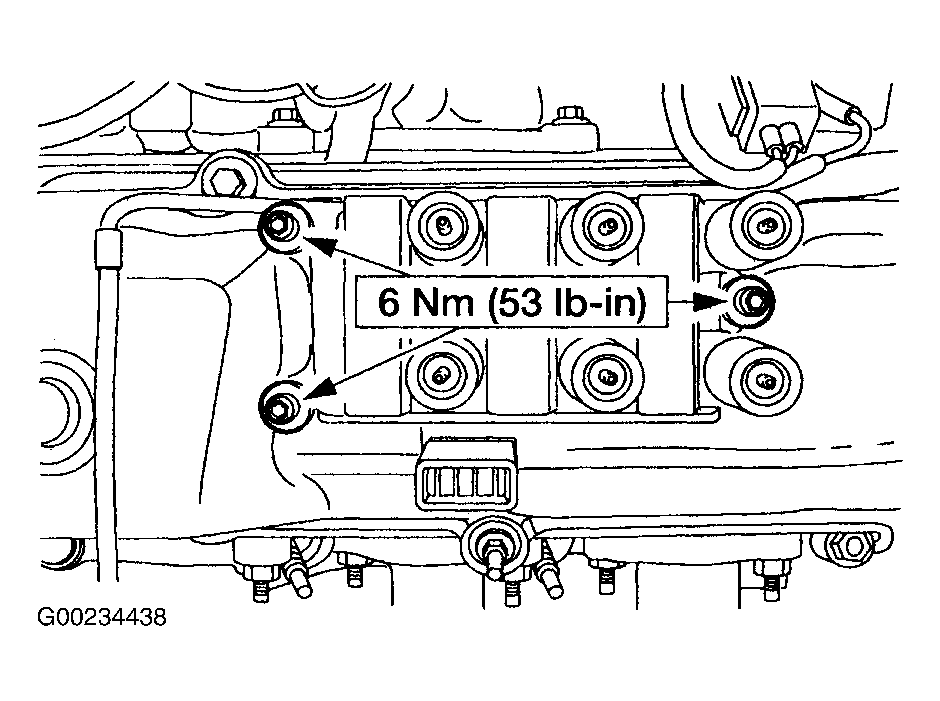

Remove windshield wiper pivot arms. Remove screws retaining cowl top vent panel. Release clips and remove windshield wiper hose. Remove cowl top vent panel. Disconnect the electrical connector from the ignition coil. Disconnect the spark plug wires by twisting while pulling upward. Remove the bolts and the ignition coil. See Fig 1. To install, reverse removal procedure.
