Air System Monitor

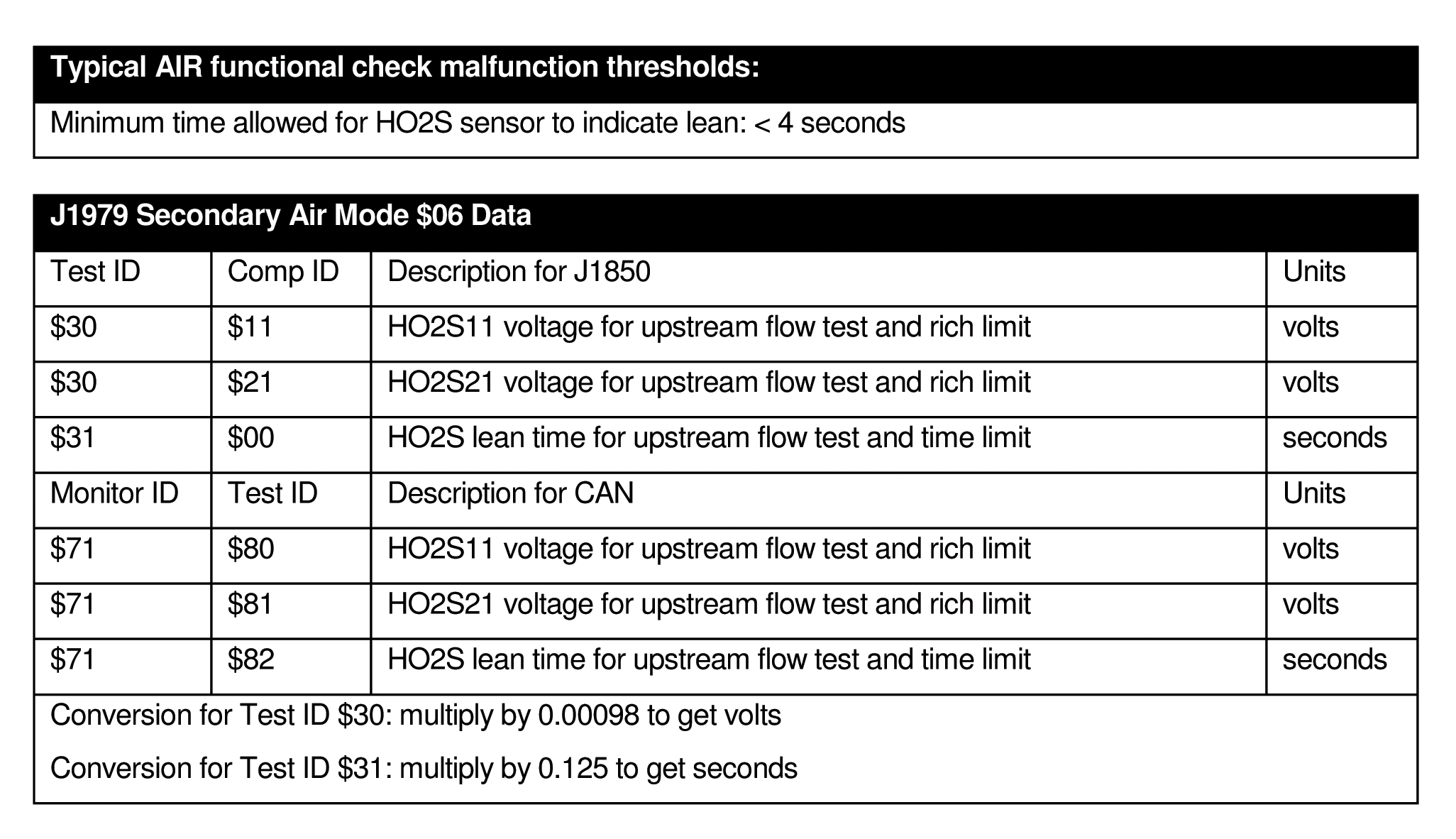

Fig 1: Mode $06 Data For AIR System Monitor

G00152282

Courtesy of FORD MOTOR CO.
